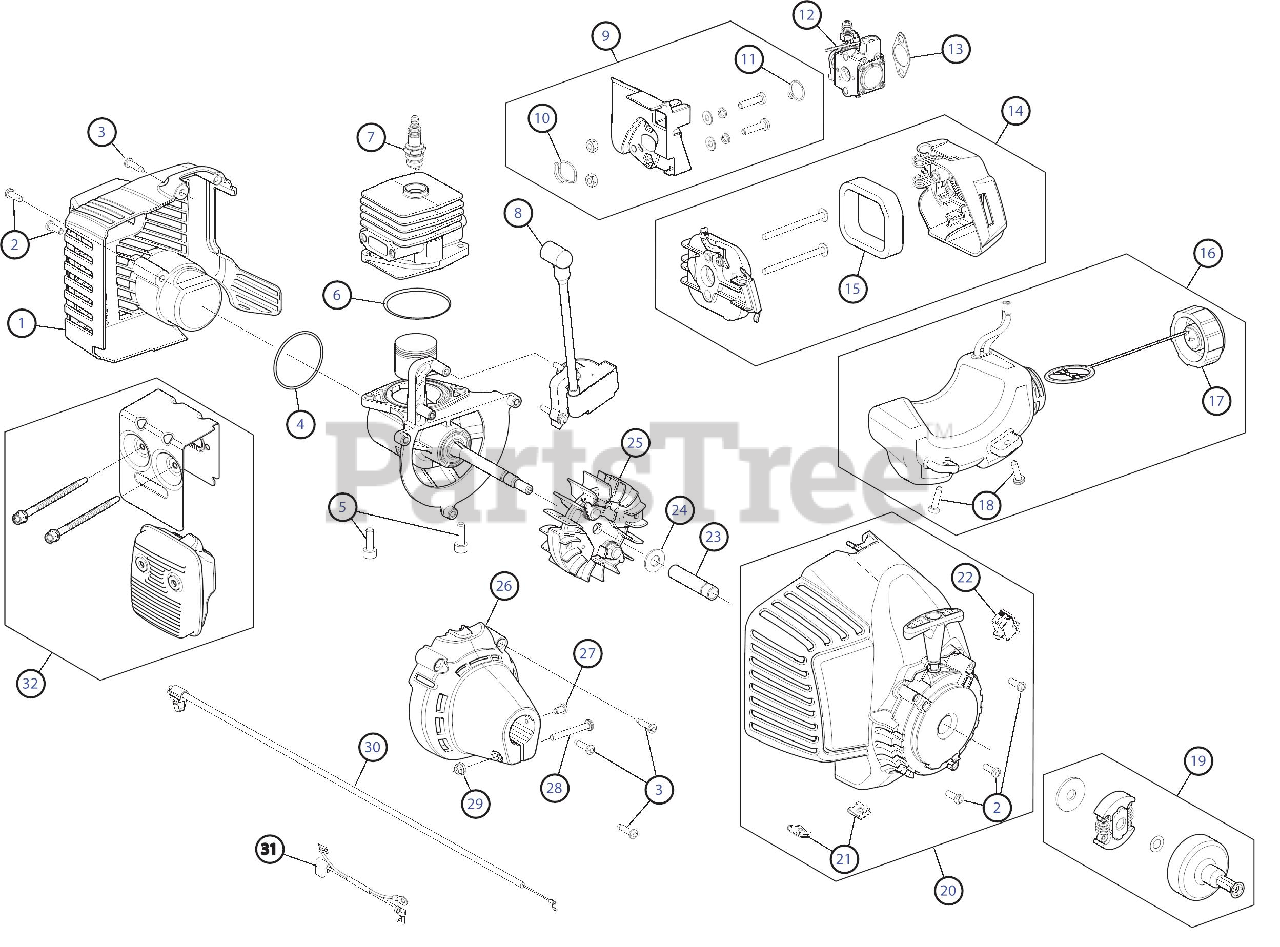

BL 110 (41CD120G965) - Bolens String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06919

Rear Cover Assembly (includes 2 & 3)

$4.99

$

In Stock, only 2 left!

0

2

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

4

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

5

MTD 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

6

MTD 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 13

0

7

MTD 753-06847

Spark Plug

$7.49

$

In Stock, Qty 20+

0

8

MTD 753-06443

Module Assembly

$26.99

$

In Stock, only 4 left!

0

9

MTD 753-06189

Insulator Assembly (includes 10 & 11)

$7.99

$

In Stock, only 1 left!

0

10

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-06423

Carburetor
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

13

MTD 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

14

MTD 753-06415

Air Cleaner Cover Assembly (includes 15)

$10.99

$

In Stock, only 3 left!

0

15

MTD 753-06417

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

16

MTD 753-06183

Fuel Tank Assembly (includes 17 & 18)

$13.99

$

In Stock, Qty 20+

0

17

MTD 791-182612

Fuel Tank Cap

$20.99

$

In Stock, Qty 9

0

18

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

19

MTD 753-05860

Starter Clutch Assembly

$25.99

$

In Stock, Qty 10

0

20

MTD 753-08550

Starter Housing (includes 2, 21 & 22)

$19.99

$

In Stock, Qty 10

0

21

MTD 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

23

MTD 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

24

MTD 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

25

MTD 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

26

MTD 753-06181

Clutch Cover (includes 3)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 791-182519

Anti-rotation Screw

$4.99

$

In Stock, Qty 5

0

28

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

29

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, only 2 left!

0

30

MTD 746-05231

Throttle Cable

$4.99

$

In Stock, only 4 left!

0

31

MTD 794-00127

Lead Wires
(Superseded to 794-00127A)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

MTD 753-08347

Short Block Assembly (includes Crankcase,Cylinder, Piston, 4 - 8 & 23 - 25)

$99.99

$

Usually ships in 3-6 days

0
