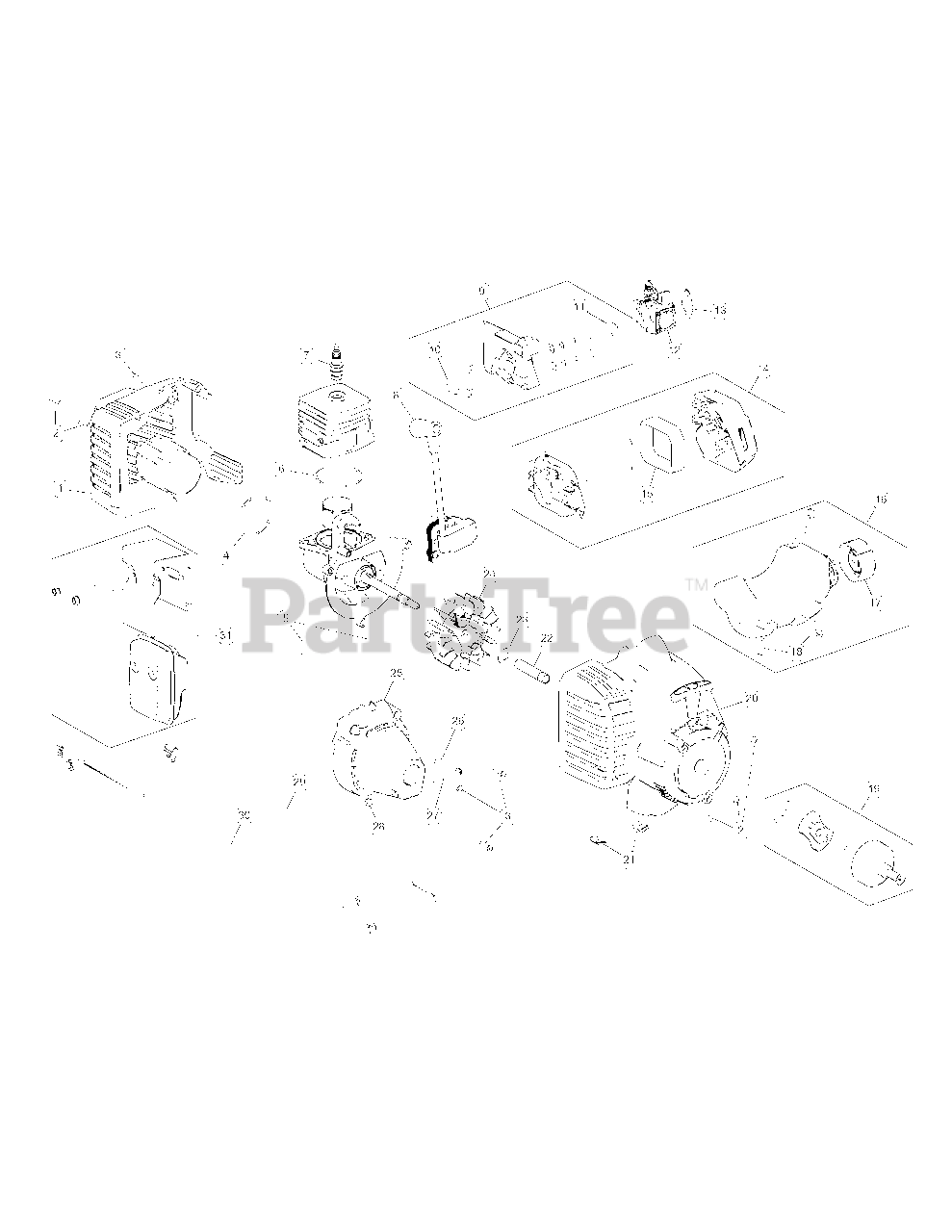

BL 110 (41CD110G965) - Bolens String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06194

Rear Cover Assembly (Incl. 2 & 3)

$8.49

$

In Stock, only 4 left!

0

2

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

4

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

5

MTD 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

6

MTD 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 13

0

7

MTD 753-06847

Spark Plug

$7.49

$

In Stock, Qty 20+

0

8

MTD 753-06420

Module Assembly

$28.99

$

In Stock, only 3 left!

0

9

MTD 753-06189

Insulator Assembly (Incl. 10 & 11)

$7.99

$

In Stock, only 1 left!

0

10

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-06423

Carburetor
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

13

MTD 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

14

MTD 753-06415

Aircleaner Cover Assembly (Incl. 15)

$10.99

$

In Stock, only 3 left!

0

15

MTD 753-06417

Aircleaner Filter

$2.99

$

In Stock, Qty 20+

0

16

MTD 753-06921

Fuel Tank Assembly (Incl. 17 & 18)
(Superseded to 753-06183)

$13.99

$

In Stock, Qty 20+

0

17

MTD 791-182612

Fuel Tank Cap

$20.99

$

In Stock, Qty 9

0

18

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

19

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

20

MTD 753-06195

Starter Housing (Incl. 2 & 21)

$25.99

$

In Stock, only 4 left!

0

21

MTD 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

MTD 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

23

MTD 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

24

MTD 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

25

MTD 753-06181

Clutch Cover (Incl. 3)

$3.99

$

Usually ships in 3-6 days

0

26

MTD 791-182519

Anti-rotation Screw

$4.99

$

In Stock, Qty 5

0

27

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

28

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, only 2 left!

0

29

MTD 753-06188

Throttle Cable

$7.99

$

In Stock, Qty 6

0

30

MTD 753-06187

Lead Wires

$

$

Not available

31

MTD 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

MTD 753-08347

Short Block Assembly

Note: (Incl. Crankcase,Cylinder, Piston, 4 - 8 & 22 - 24)(not shown)

$99.99

$

Usually ships in 3-6 days

0
