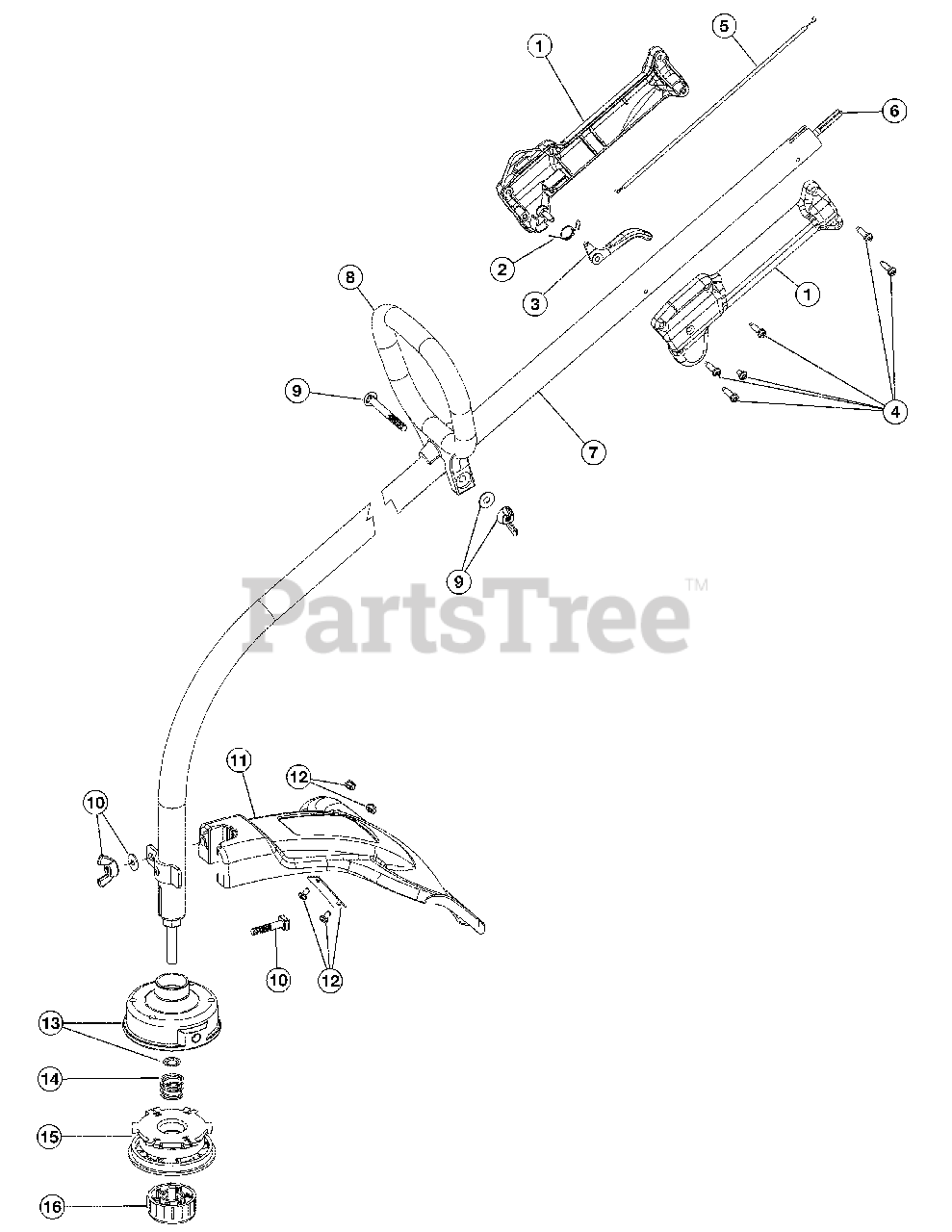

BL 100 (41BD100G965) - Bolens String Trimmer General Assembly BL100 Parts Diagram

String Trimmer

General Assembly BL100 Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing Assembly

Note: (Incl. Ref. No. 2-4)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-181807

Throttle Trigger

$9.99

$

In Stock, Qty 7

0

4

MTD 753-04917

Throttle Housing Screws

$

$

Not available

5

MTD 753-04901

Throttle Cable

$8.99

$

In Stock, only 1 left!

0

6

MTD 753-04280

Flexible Drive Shaft

$81.99

$

Usually ships in 3-6 days

0

7

MTD 753-04921

Drive Shaft Housing

$

$

Not available

8

MTD 791-153064

D-Handle Assembly

Note: (Incl. Ref. No. 9)

$

$

Not available

9

MTD 791-181587

D-Handle Hardware

$19.99

$

In Stock, only 1 left!

0

10

MTD 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

11

MTD 753-04283

Guard Assembly

Note: (Incl. Ref. No. 12)

$50.99

$

In Stock, only 1 left!

0

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

13

MTD 753-04284

Outer Reel w/ Retainer

$28.99

$

In Stock, only 2 left!

0

14

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

15

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

16

MTD 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 18

0

MTD 753-04281

Drive Shaft Housing Assembly

Note: (Incl. Ref. No. 6 & 13)

$

$

Not available

MTD 791-153577B

Inner Reel & Line

$28.99

$

In Stock, only 2 left!

0
