BK4546 BA (BK2) - Honda Blower Kit, Made in USA (SN: BK2-1000001 - BK2-9999999) SIDE BLOWER Parts Diagram

Blower Kit, Made in USA

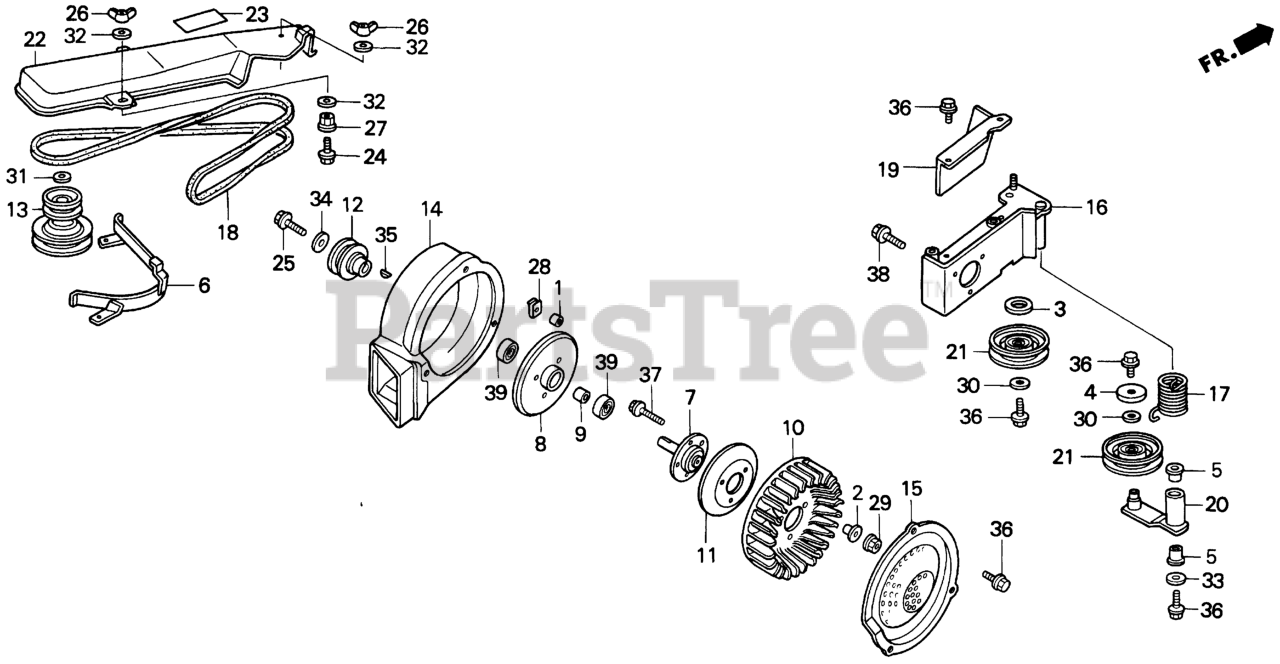

SIDE BLOWER Parts Diagram

  • Title

1

Honda 16573-ZE6-300

COLLAR, CONTROL

$3.99

$

Usually ships in 3-6 days

0

2

Honda 17626-MN1-670

COLLAR, TANK SETTING

$

$

Currently unavailable

3

Honda 22467-758-R20

GUARD, TENSION ROLLER

$7.99

$

Usually ships in 3-6 days

0

4

Honda 22469-758-U00

GUARD, TENSIONER ROLLER

$3.99

$

Usually ships in 3-6 days

0

5

Honda 24141-751-000

BUSH (15X19X18)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 76183-758-U00

STOPPER, BELT

$

$

Not available

7

Honda 81410-758-U00

SHAFT, BLOWER IMPELLER

$46.99

$

Usually ships in 3-6 days

0

8

Honda 81415-750-L20

HOUSING, BLOWER BEARING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 81416-750-L20

COLLAR, BLOWER BEARING

$

$

Not available

10

Honda 81417-750-L20

IMPELLER, BLOWER

$176.99

$

Usually ships in 3-6 days

0

11

Honda 81418-758-U00

PLATE, IMPELLER

$13.99

$

Usually ships in 3-6 days

0

12

Honda 81420-758-U00

PULLEY, BLOWER

$26.99

$

In Stock, only 1 left!

0

13

Honda 81430-758-T00

PULLEY, BLOWER DRIVE (46")

$106.99

$

Usually ships in 3-6 days

0

14

Honda 81441-758-U00

HOUSING, SIDE BLOWER

$58.99

$

Usually ships in 3-6 days

0

15

Honda 81446-758-U00

COVER, BLOWER HOUSING

$41.99

$

Usually ships in 3-6 days

0

16

Honda 81510-758-U00

BRACKET, SIDE BLOWER MOUNTING

$

$

Not available

17

Honda 81515-758-U00

SPRING, TENSIONER ARM

$

$

Not available

18

Honda 81516-758-U00

V-BELT, BLOWER

$40.99

$

Usually ships in 3-6 days

0

19

Honda 81517-758-U00

COVER, SIDE BLOWER BELT (A)

$8.99

$

Usually ships in 3-6 days

0

20

Honda 81521-758-U00

ARM, TENSIONER

$157.99

$

Usually ships in 3-6 days

0

21

Honda 81540-750-L20

PULLEY, IDLER
(Superseded to 81540-758-U00)

$

$

Not available

21

Honda 81540-758-U00

PULLEY, IDLER

$

$

Not available

22

Honda 81617-758-U00

COVER, SIDE BLOWER BELT

$

$

Currently unavailable

23

Honda 87311-758-U00

LABEL, BELT COVER (A)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 90102-758-U00

BOLT, FLANGE (0.25 INCH)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90194-567-010

BOLT, WHEEL RIM

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90301-758-U00

WINGNUT (0.25 INCH)

$7.99

$

Usually ships in 3-6 days

0

27

Honda 90302-758-U00

NUT, FLANGE (0.25 INCH)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90303-758-U00

NUT, CLIP (6MM)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

29

Honda 90343-892-000

NUT, SELF-LOCK (6MM)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90474-704-000

WASHER (6X17) (Honda Code 0181321).

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90501-758-U00

WASHER, PLAIN (10MM)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90502-758-U00

WASHER, PLAIN (0.25 INCH)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

34

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

35

Honda 94401-16120

KEY, WOODRUFF (16X12)

$1.99

$

In Stock, only 4 left!

0

36

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

37

Honda 95701-06022-07

BOLT, FLANGE (6X22)

$1.49

$

In Stock, only 2 left!

0

38

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 96150-62020-10

BEARING, RADIAL BALL (6202UU)

$21.99

$

Usually ships in 3-6 days

0
