Big Country 642 Fire & Rescue (37AS642E710) - Cub Cadet 6x4 Utility Vehicle Steering Parts Diagram

6x4 Utility Vehicle

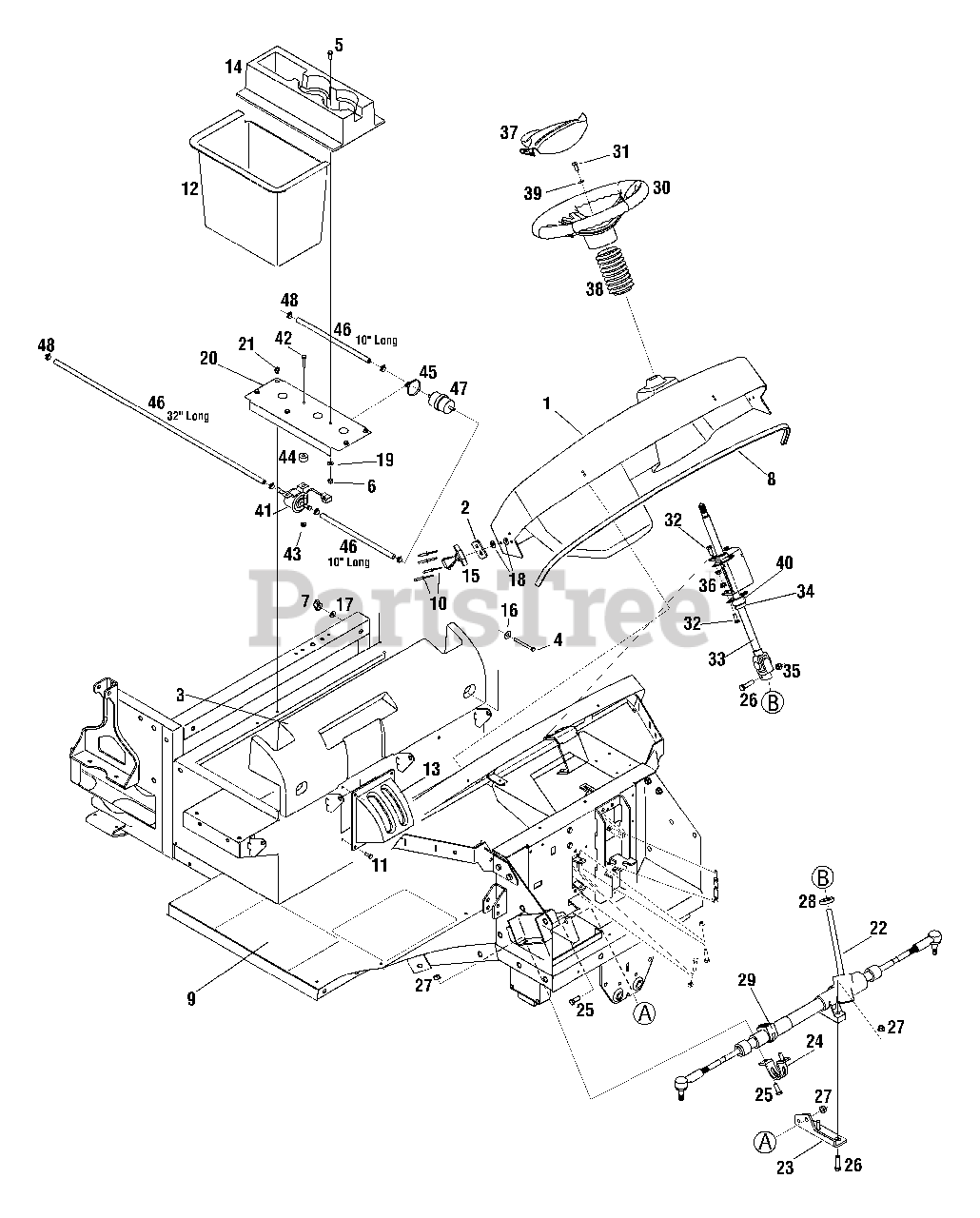

Steering Parts Diagram

  • Title
1

Cub Cadet 631-04105

Dash Assembly

$

$

Currently unavailable

2

Cub Cadet 707-04252

Hood Mounting Plate

$

$

Not available

3

Cub Cadet 731-2952

Panel, Airbox Cover

$

$

Not available

4

Cub Cadet 710-0564

Hex Screw, 1/4-20 x 2.75

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-3015

Hex Screw, 1/4-20 x.75, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Hex Lock Nut, Nylon, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 721-04070

Trim, Bulb Seal, 1/4
(Superseded to 721-04070A-46)

$

$

Not available

9

Cub Cadet 723-3069

Foot Pad, Abrasive
(Superseded to 00023817)

$

$

Not available

10

Cub Cadet 728-0173

Rivet, Pop,.187
(Superseded to 928-0173)

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 728-04004

Rivet, Pop,.188
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-04033A

Container, Bulkhead
(Superseded to 931-04033A)

$

$

Not available

13

Cub Cadet 731-2953A

Panel, Shift Cover
(Superseded to 931-2953A)

$

$

Not available

14

Cub Cadet 731-2648

Console, Cup Holder

$

$

Not available

15

Cub Cadet 735-04038

Handle, Latch
(Superseded to 935-04038)

$15.99

$

In Stock, Qty 14

0

16

Cub Cadet 736-0195

Flat Washer, 349 x.875 x.04

$

$

Not available

17

Cub Cadet 736-0173

Washer, Flat,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0400

Washer, Flat,.194 x.62 x.063

$5.49

$

In Stock, Qty 11

0

19

Cub Cadet 736-0463

Washer, Flat,.25 x.630 x.0515

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 707-04278

Plate, Console Support

Variations

Cub Cadet 707-04278-0637

PLATE-CONSOLE SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 617-0075A

Gear Assembly, Steering
(Superseded to 917-0075A)

$

$

Not available

23

Cub Cadet 707-04074

Steering Bracket, Sector Clamp

Variations

Cub Cadet 707-04074-0637

BRACKET-STEERING ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 707-0417

Bracket, Steering Mounting

$

$

Not available

25

Cub Cadet 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0520

Hex Screw, 3/8-16, 1.50, Gr5

$4.49

$

In Stock, Qty 5

0

27

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 735-0801

Grommet, Steering Shaft

$

$

Not available

29

Cub Cadet 741-0763

Bushing, Rubber

$

$

Not available

30

Cub Cadet 631-04008

Wheel, Steering
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

31

Cub Cadet 710-1880

Hex Screw, 5/16-18,.75, Gr5, Patch

$4.99

$

In Stock, Qty 11

0

32

Cub Cadet 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 711-04231

Shaft, Steering, 5/8 Spline

$

$

Not available

34

Cub Cadet 711-1774

Collar, .75

$

$

Not available

35

Cub Cadet 712-0130

Nut, Hex Lock Nylon, 3/8-16

$3.99

$

In Stock, Qty 11

0

36

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-04532

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

38

Cub Cadet 731-0954

Bellow, Steering, 4.75 Lg
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0275

Washer, Flat,.344 x.688 x.065

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-04000

Bearing, Flange,.75 ID, Self-Aligning

$

$

Not available

41

Cub Cadet 651-04003

Pump Assembly, Fuel

$

$

Currently unavailable

42

Cub Cadet 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

43

Cub Cadet 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 722-0160

Bushing,.96OD x.50

$

$

Not available

45

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

47

Cub Cadet 793-00003

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

48

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0
