Big Country 642 Fire & Rescue (37AS642E710) - Cub Cadet 6x4 Utility Vehicle Rear Fenders And Cargo Bed Parts Diagram

6x4 Utility Vehicle

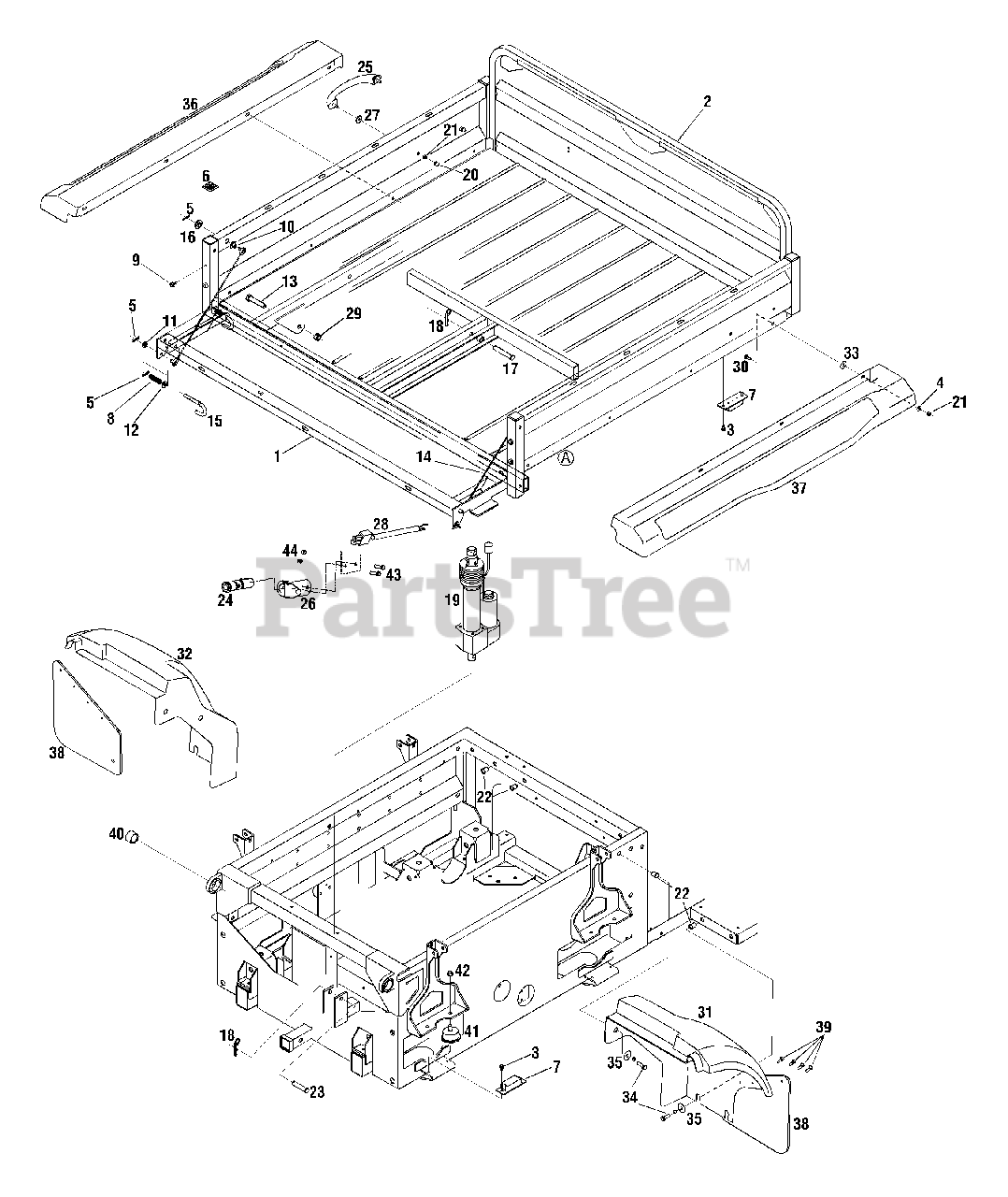

Rear Fenders And Cargo Bed Parts Diagram

  • Title

1

Cub Cadet 607-04028

Tailgate Assembly
(Superseded to 607-04028A)

$

$

Not available

2

Cub Cadet 607-04035

Bed Assembly
(Superseded to 907-04035-0637)

$

$

Not available

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-3020

Flat Washer,.271 x.630 x.065

$6.99

$

In Stock, Qty 9

0

5

Cub Cadet 714-0104

Cotter Pin,.072 Dia x 1.13

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 720-04036

Plug Cap

$

$

Not available

7

Cub Cadet 731-04016

Bumper, Extension Suspension

$45.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0306

Compression Spring, .406 x .531 x
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

9

Cub Cadet 735-0271

Bumper, .62Dia x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0162

Washer, Flat, .64 ID x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3008

Washer, Flat, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-3010

Washer, Flat,.407 x.812 x.135

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3233

Screw, Hex, 1/2-13 x 2.5

$14.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 746-0968

Cable, LIft 16.16 LG

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 747-1116

Handle, Deck Release

$12.99

$

In Stock, Qty 6

0

16

Cub Cadet 748-0331

Spacer, Shoulder .625 Dia x .324 Dia
(Superseded to 948-0331)

$

$

Not available

17

Cub Cadet 711-04006

Clevis Pin,.5 x 3.0 Lng.

$40.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 714-04003

Cotter Pin

$8.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 725-04077

Electric Actuator, 6" Stroke
(Superseded to 925-04077)

$997.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-0264

Nut, Acorn 1/4-20 w/o Lock

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

22

Cub Cadet 712-0703A

Nut, Insert 5/16-18

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-04007

Clevis Pin,.5 x 2.25 Lng.

$45.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-04018

Plug Receptacle, 12V/15A

$

$

Not available

25

Cub Cadet 731-04174

Handle, Bag w/Screw

$33.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 725-04017

Power Receptacle, 12V/15A

$81.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0176

Washer, Flat .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

28

Cub Cadet 725-04157

Harness Jumper

$

$

Not available

29

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0703

Hex Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 731-04558

Fender, Rear RH, Red
(Superseded to 931-04558)

$260.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-04559

Fender, Rear LH, Red
(Superseded to 931-04559)

$323.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-04008

Rubber Washer,.310 x 1.0 x.125

$

$

Not available

34

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0356

Bell Washer,.39 x 1.38 x.062
(Superseded to 936-0356)

$

$

Not available

36

Cub Cadet 731-04553

Bed Skirt Panel, LH, Red
(Superseded to 931-04553)

$

$

Not available

37

Cub Cadet 731-04555

Bed Skirt Panel, RH, Red
(Superseded to 931-04555)

$

$

Not available

38

Cub Cadet 735-04035

Rear Mud Flap

$73.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 728-04004

Pop Rivet,.188
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

40

Cub Cadet 741-0761

Rubber Bushing, Bed Pivot

$

$

Not available

41

Cub Cadet 731-04011

Bumper, Compression Suspension

$

$

Not available

42

Cub Cadet 712-04006

Hex Lock Nut, M10-1.25

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0473

Screw, #10-24 x.500

$4.49

$

In Stock, only 2 left!

0

44

Cub Cadet 712-0272

Hex Nut, 10-24

$3.99

$

Usually ships in 3-6 days

0
