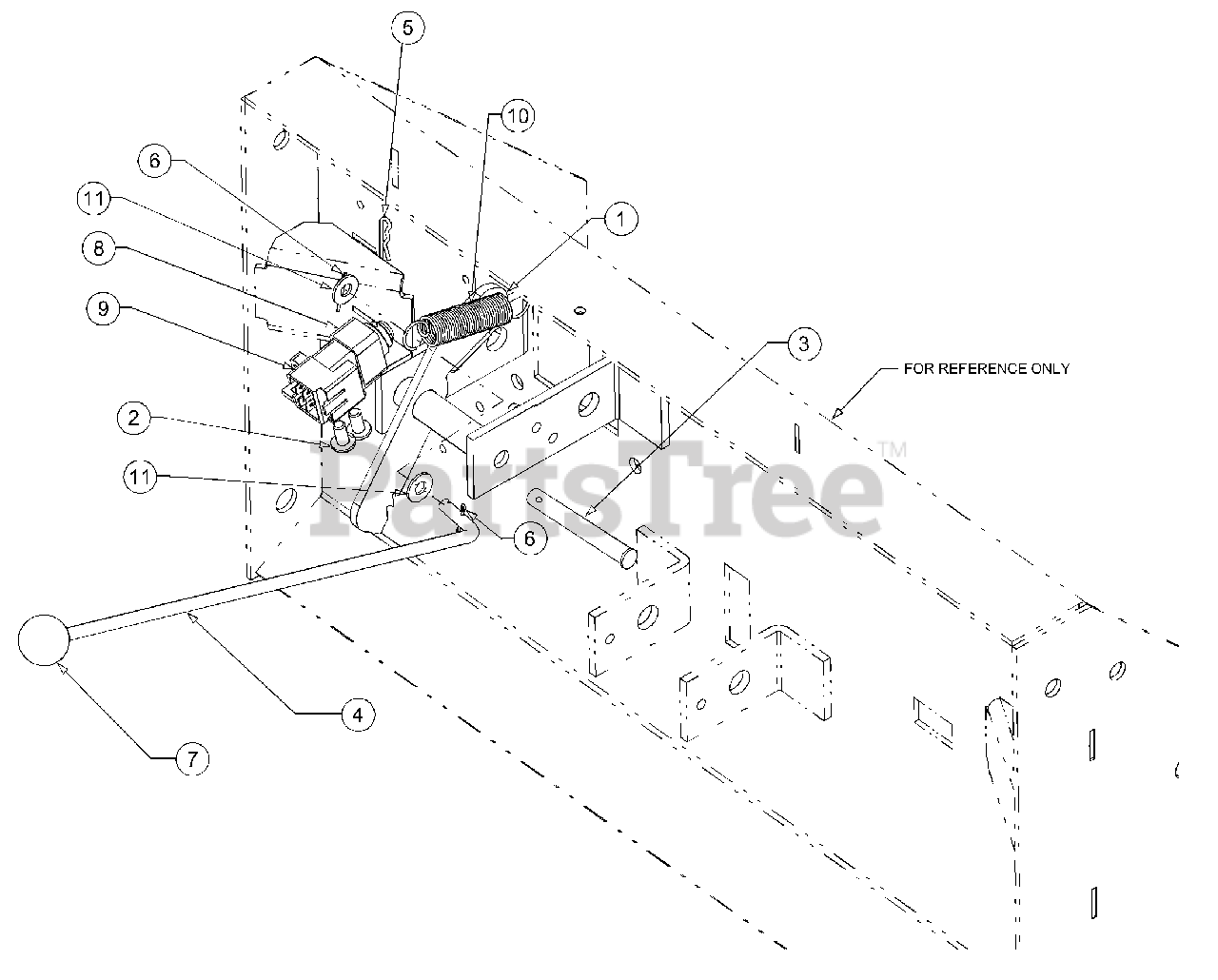

Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Parking Brake Parts Diagram

6x4 Utility Vehicle

Parking Brake Parts Diagram

  • Title
1

Cub Cadet 607-0021

Lever Assembly, Parking Brake

$

$

Not available

2

Cub Cadet 710-04030

Screw, Hi-Lo, 1/4-20 x .5

$

$

Not available

3

Cub Cadet 711-04067

Pin, Clevis
(Superseded to 911-04067)

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 711-1765

Rod, Brake Lock

$

$

Not available

5

Cub Cadet 714-0101

Pin, Cotter

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 714-0127

Pin, Cotter 1/16 x .75

$

$

Not available

7

Cub Cadet 720-04001

Knob, Ball

$

$

Not available

8

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

9

Cub Cadet 725-1657A

Snap Mount Switch, Interlock
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

10

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

11

Cub Cadet 736-0463

Washer, Flat .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0
