Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Fenders Parts Diagram

6x4 Utility Vehicle

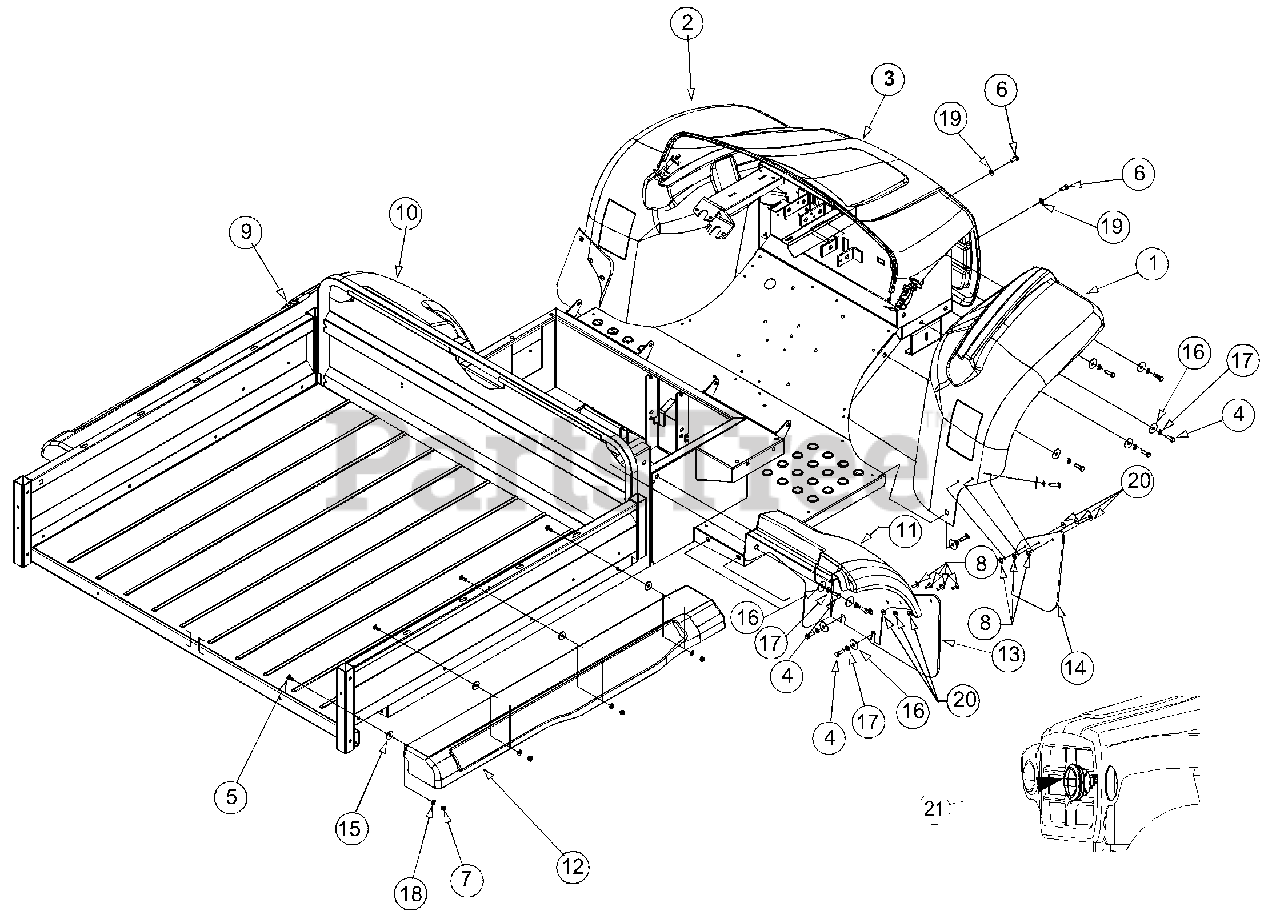

Fenders Parts Diagram

  • Title

1

Cub Cadet 731-04556

Panel, Front Fender, RH
(Superseded to 931-04556)

$378.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-04557

Panel, Front Fender, LH
(Superseded to 931-04557)

$379.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-04552

Panel, Hood
(Superseded to 931-04552)

$

$

Not available

4

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

Hex Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0324

Hex Lock Nut, Nylon, 1/4-20

$

$

Currently unavailable

8

Cub Cadet 728-04004

Pop Rivet
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

9

Cub Cadet 731-04553

Panel, Bed Skirt, LH
(Superseded to 931-04553)

$

$

Not available

10

Cub Cadet 731-04559

Panel, Rear Fender, LH
(Superseded to 931-04559)

$323.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-04558

Panel, Rear Fenders, RH
(Superseded to 931-04558)

$260.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-04555

Panel Bed Skirt, RH
(Superseded to 931-04555)

$

$

Not available

13

Cub Cadet 735-04035

Mud Flap, Rear

$73.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-04003

Mud Flap

$48.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-04008

Washer, Rubber, .310 x 1.0 x .125

$

$

Not available

16

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

17

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3020

Flat Washer, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

19

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .0652

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0400

Flat Washer, .194 x .62 OD x .063

$5.49

$

In Stock, Qty 12

0

21

Cub Cadet 625-04017

Headlight Assembly
(Superseded to 925-04017)

$

$

Not available
