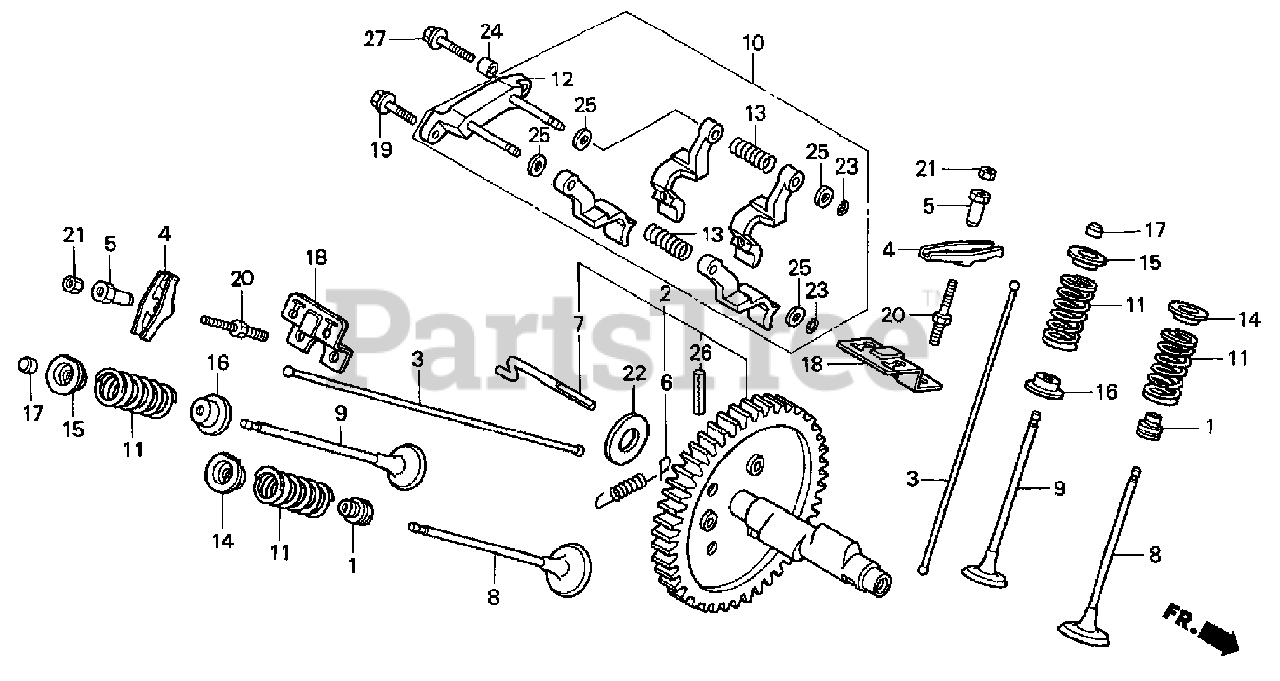

Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Engine - Camshaft Parts Diagram

6x4 Utility Vehicle

Engine - Camshaft Parts Diagram

  • Title
1

Honda 12209-ZE8-003

Seal, Valve Stem

$8.49

$

In Stock, Qty 16

0

2

Honda 14100-ZJ1-842

Camshaft Assembly

$482.99

$

Usually ships in 3-6 days

0

3

$9.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE2-010

Arm, Valve Rocker

$9.49

$

In Stock, Qty 20+

0

5

Honda 14451-ZE1-013

Pivot, Rocker Arm
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZJ1-841

Spring, Weight Return

$3.49

$

Usually ships in 3-6 days

0

7

Honda 14576-ZJ1-840

Pin, Decompression

$17.99

$

Usually ships in 3-6 days

0

8

$22.99

$

In Stock, Qty 5

0

9

$35.99

$

In Stock, only 1 left!

0

10

Cub Cadet 14730-ZJ1-840

Lifter Ass'y., Valve

$

$

Currently unavailable

11

Honda 14751-ZE2-003

Spring, Valve

$5.49

$

In Stock, only 2 left!

0

12

Honda 14760-ZJ1-840

Shaft, Valve Lifter

$48.99

$

Usually ships in 3-6 days

0

13

Honda 14764-ZJ1-840

Spring, Valve Lifter

$3.99

$

Usually ships in 3-6 days

0

14

Honda 14771-ZE2-000

Retainer, In. Valve Spring
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, Qty 12

0

15

Honda 14773-ZE2-000

Retainer, Ex. Valve Spring

$2.49

$

In Stock, only 2 left!

0

16

Honda 14775-ZE2-010

Seat, Valve Spring

$3.99

$

In Stock, only 2 left!

0

17

Honda 14781-ZE2-000

Rotator, Valve

$5.99

$

In Stock, Qty 12

0

18

Honda 14791-ZE2-010

Plate, Push Rod Guide

$4.49

$

In Stock, only 2 left!

0

19

Honda 90005-896-000

Bolt, Flange (5x16)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90012-ZE0-010

Bolt, Pivot (8mm)

$8.49

$

In Stock, only 2 left!

0

21

Honda 90206-ZE1-000

Nut, Pivot Adj

$4.49

$

In Stock, Qty 6

0

22

Honda 90446-357-000

Washer, Thrust (17.2mm)

$4.99

$

In Stock, only 1 left!

0

23

Honda 90602-ZE1-000

Clip, Governor Holder

$1.99

$

In Stock, Qty 6

0

24

Honda 94301-08120

Pin A, Dowel (8x12)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 94101-06800

Washer, Plain (6mm)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94305-60282

Pin, Spring (6x28)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95701-06025-00

Bolt, Flange (6x25)

$2.49

$

In Stock, Qty 8

0
