Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Dash Panel Parts Diagram

6x4 Utility Vehicle

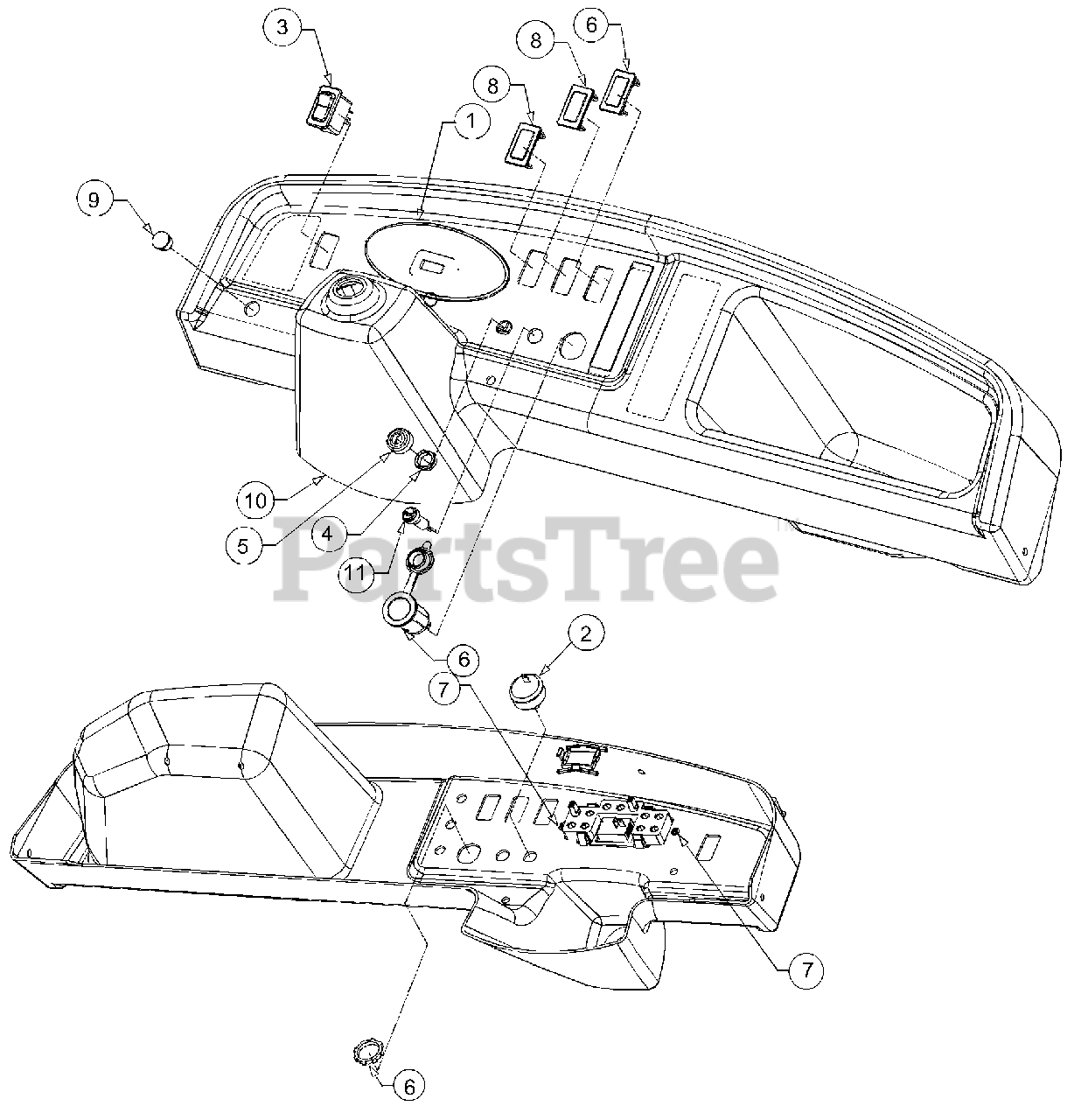

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 625-04009

Instrument Panel

$

$

Not available

2

Cub Cadet 725-04000

Switch, Key
(Superseded to 925-04000)

$80.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 725-04006

Rocker Switch, Headlight

$47.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-1346

Ignition Switch Nut, 5/8-32
(Superseded to 925-1346)

$

$

Not available

5

Cub Cadet 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 725-2003

Receptacle, Power, 12v

$42.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 726-0293

Nut, Retainer 1/8

$

$

Not available

8

Cub Cadet 731-04010

Switch

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-04023

Plug

$

$

Not available

10

Cub Cadet 731-04270

Dash Panel

$

$

Not available

11

Cub Cadet 725-04014

Switch, Horn
(Superseded to 725-04014P)

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04015

Horn, Assembly 12V
(Superseded to 725-04015A)

Note: (Shown on "Steering (Upper)")

$90.99

$

Usually ships in 3-6 days

0
