Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Chain Guide Parts Diagram

6x4 Utility Vehicle

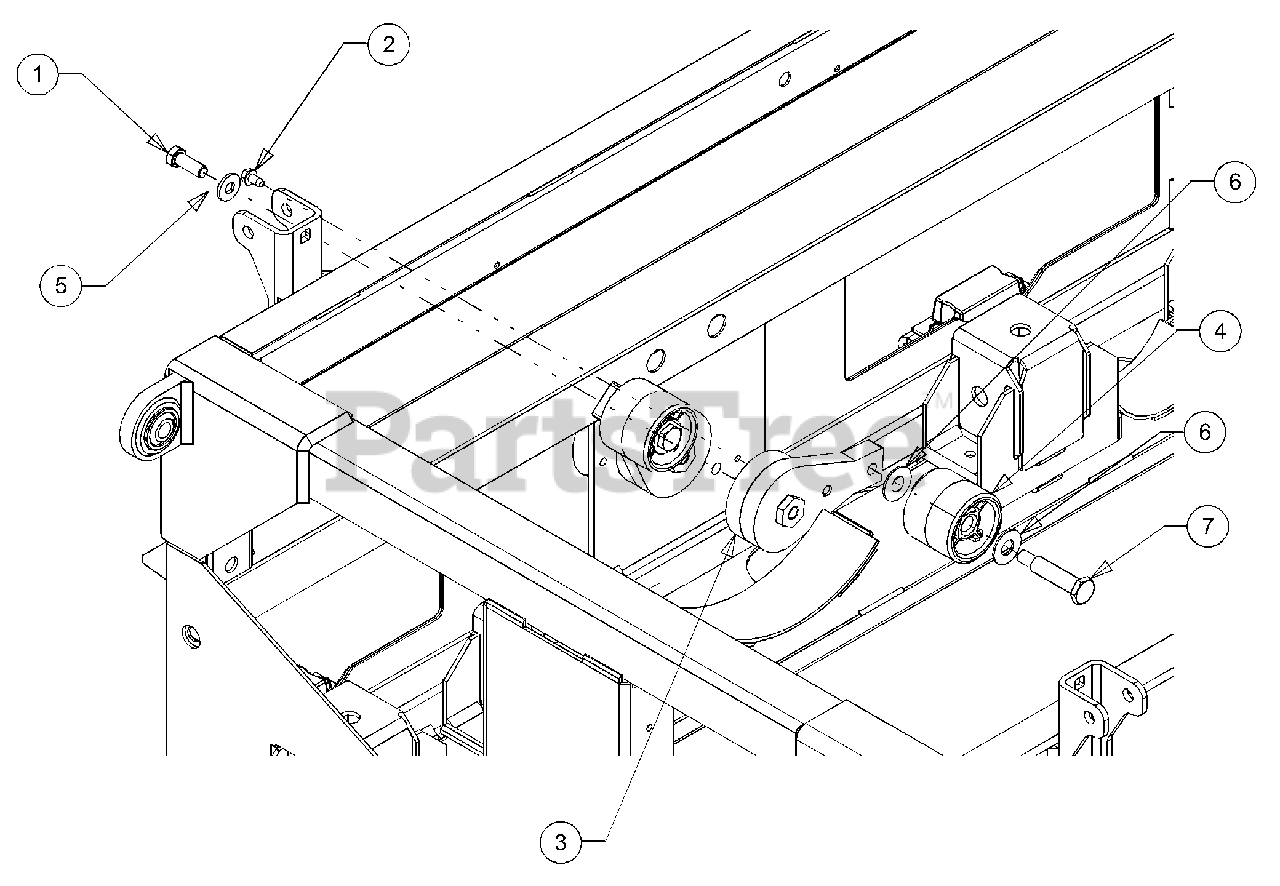

Chain Guide Parts Diagram

  • Title
1

Cub Cadet 738-0509

Shoulder Screw, .50 x 1.825

$

$

Not available

2

Cub Cadet 736-3084

Washer, Flat, .510 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-04078

Roller, Chain
(Superseded to 731-04078A)

$

$

Not available

5

Cub Cadet 718-04033

Adjuster, Rotary

$120.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0
