Big Country 642 Fire & Rescue (37AS642E100) - Cub Cadet 6x4 Utility Vehicle Alternator Parts Diagram

6x4 Utility Vehicle

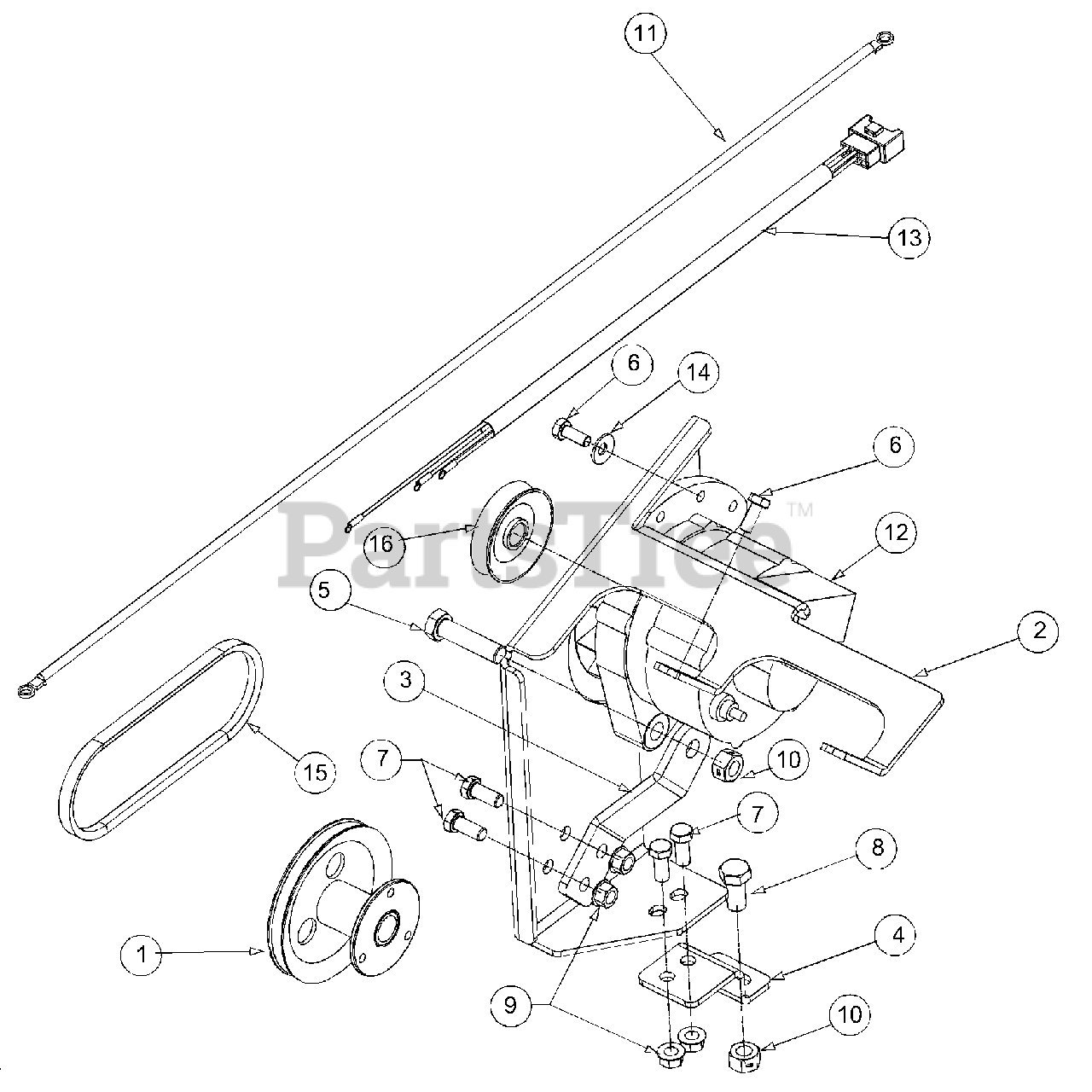

Alternator Parts Diagram

  • Title

1

Cub Cadet 607-04041

Pulley Assembly Alternator

Variations

Cub Cadet 607-04041-0637

PULLEY ASSEMBLY-ALTNR (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 707-04179

Bracket, Mount Front

Variations

Cub Cadet 707-04179-0637

BRACKET-ALTNR MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 707-04189

Bracket, Support Rear

Variations

Cub Cadet 707-04189-0637

BRACKET-ALTNR SUPPORT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 707-04220

Bracket, Support
(Superseded to 707-04220A-0637)

Note: 4 x 2 Only

Variations

Cub Cadet 707-04220-0637

ALTERNATOR SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0489

Screw, 1/2-13 x 2.00 GR5

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1681

Screw, M8- 1.25 - 20

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880, Gr5

$7.49

$

In Stock, Qty 9

0

8

Cub Cadet 710-3131

Hex Screw, 1/2-13 GR8

Note: 4 x 2 Only

$5.49

$

In Stock, only 1 left!

0

9

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-04148

Harness, Aux, Alternator

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-04161

Alternator, Aux 65 Amp

$926.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-04163

Harness, Alternator Regulator

$38.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 754-0465

V-Belt 3/8 x 35.68 LG
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 17

0

16

Cub Cadet 756-04097

Pulley, 2.65 OD

$108.99

$

Usually ships in 3-6 days

0
