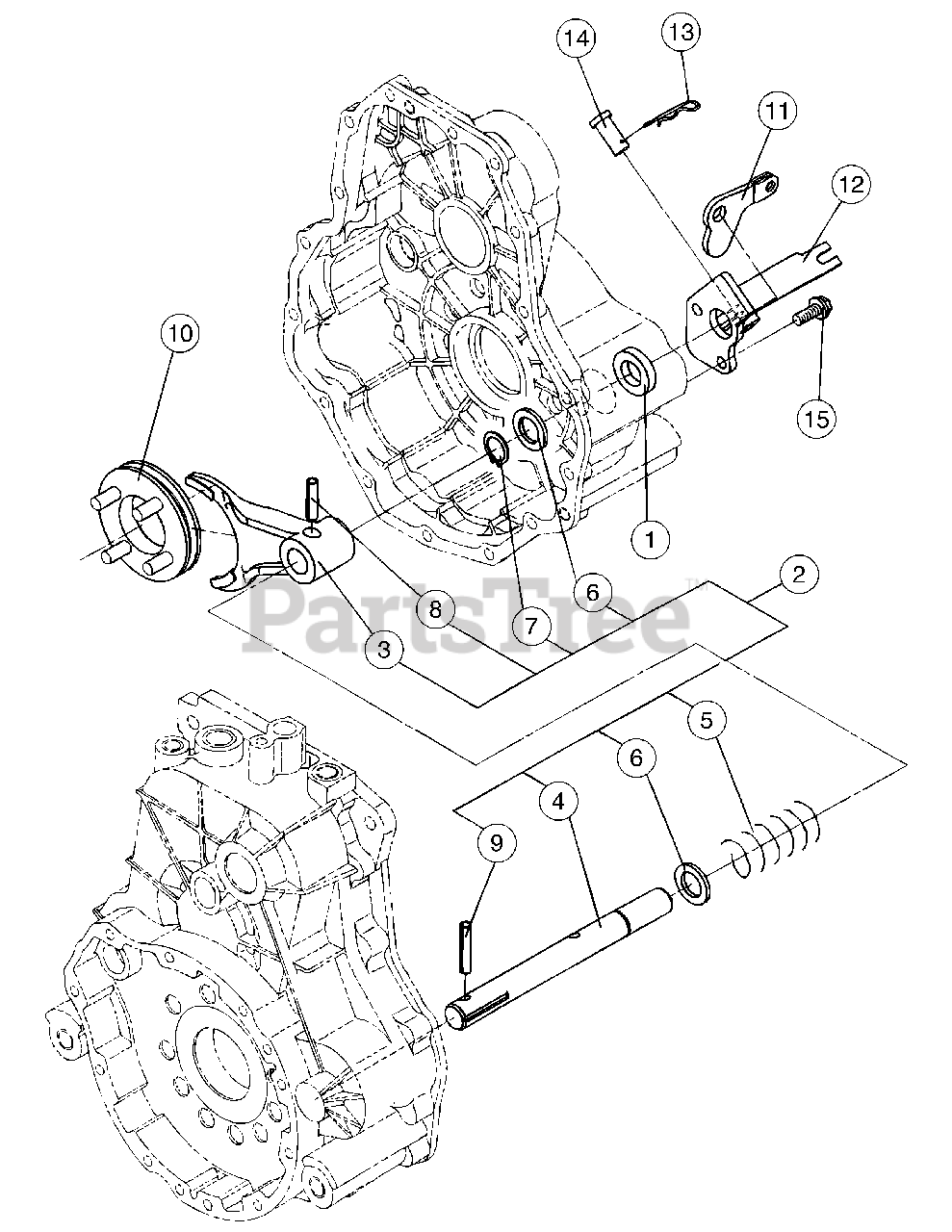

Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Transmission - Differential Lock Assembly Parts Diagram

6x4 Utility Vehicle

Transmission - Differential Lock Assembly Parts Diagram

  • Title

1

Cub Cadet TT-19423527270

Seal, TC4 20 35 7

$

$

Not available

2

Cub Cadet TT-19216233100

Differential Lock Kit

$

$

Not available

3

Cub Cadet N/A

Fork, Differential Lock

Note: (furnish Differntial Lock Kit)

$

$

Currently unavailable

4

Cub Cadet N/A

Shaft, Differential Lock

Note: (furnish Differntial Lock Kit)

$

$

Currently unavailable

5

Cub Cadet N/A

Spring, Differential Lock

Note: (furnish Differntial Lock Kit)

$

$

Currently unavailable

6

Cub Cadet TT-19430033200

Spacer, 20 x 32 x 3.2

$

$

Not available

7

Cub Cadet TT-22242000200

Ring, 20

$

$

Not available

8

Cub Cadet TT-22351080032

Pin, 8.0A x 32

$

$

Not available

9

Cub Cadet TT-22351080040

Pin, 8.0A x 40

$

$

Not available

10

Cub Cadet TT-19485433110

Slider, Differential Lock

$

$

Not available

11

Cub Cadet TT-19216233140

Arm, Differential Lock

$

$

Not available

12

Cub Cadet TT-19216233150

Bracket, Differential Lock

$

$

Not available

13

Cub Cadet TT-22360120000

Pin, 12
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet TT-22487120200

Pin, 12 x 20

$

$

Not available

15

Cub Cadet TT-26476080202

Tapping Screw, 8 x 20

Note: (KT35 transmission)

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet TT-1A632010020

Flange Bolt, M8 x 20

Note: (KT35 transmission)

$2.99

$

Usually ships in 3-6 days

0
