Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Transmission - Brake Assembly Parts Diagram

6x4 Utility Vehicle

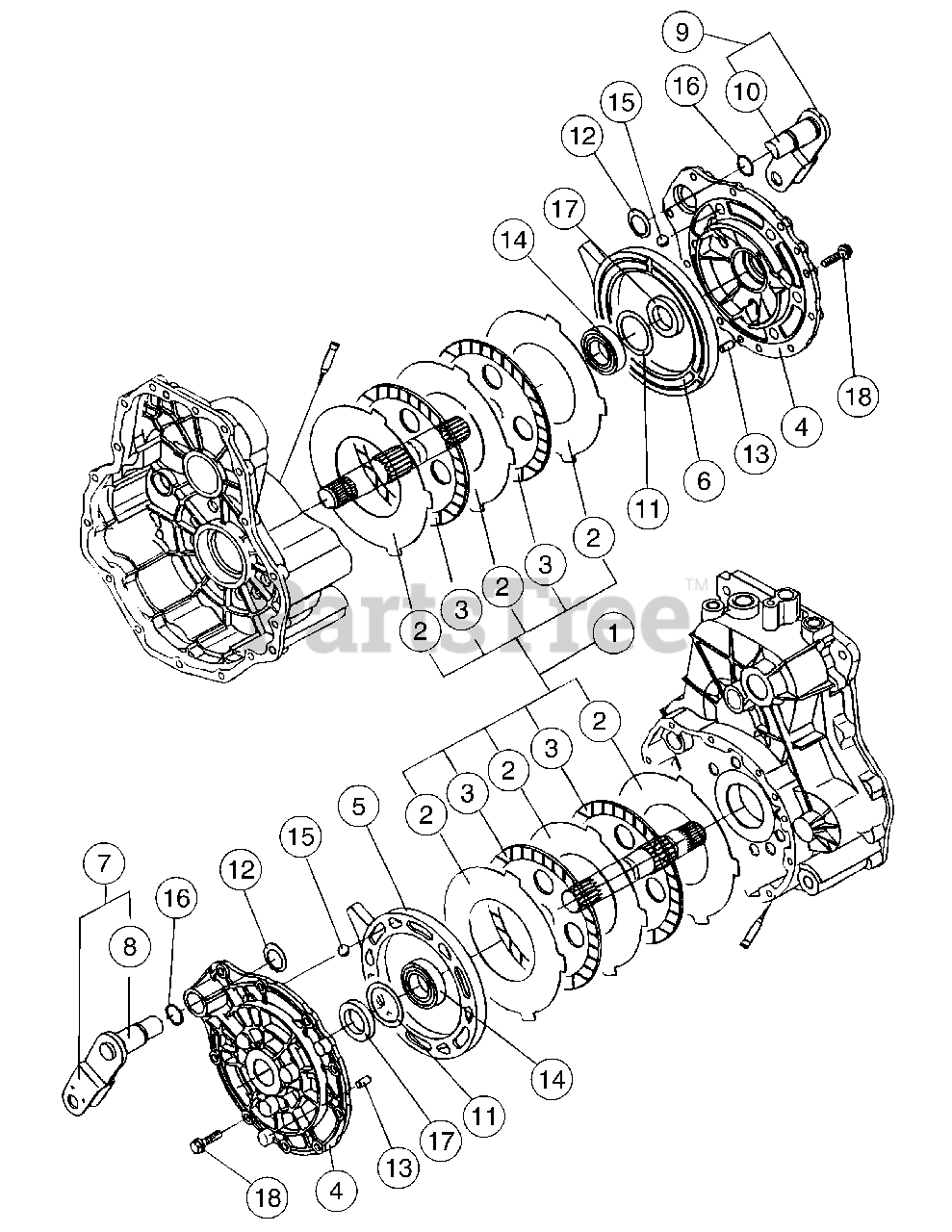

Transmission - Brake Assembly Parts Diagram

  • Title

1

Cub Cadet TT-19216236300

Plate Kit

$

$

Not available

2

Cub Cadet N/A

Steel Plate

Note: (furnish Plate Kit)

$

$

Currently unavailable

3

Cub Cadet N/A

Friction Plate, 175

Note: (furnish Plate Kit)

$

$

Currently unavailable

4

Cub Cadet TT-19216236310

Cover, Brake

$

$

Not available

5

Cub Cadet TT-19216236330

Actuator, LH

$

$

Not available

6

Cub Cadet TT-19216236340

Actuator, RH

$

$

Not available

7

Cub Cadet TT-19216236400

Cam Lever, Complete, LH

$

$

Not available

8

Cub Cadet N/A

Cam Lever Shaft

Note: (furnish Complete Cam Lever)

$

$

Currently unavailable

9

Cub Cadet TT-19216236410

Cam Lever, Complete, RH

$

$

Not available

10

Cub Cadet N/A

Cam Lever Shaft

Note: (furnish Complete Cam Lever)

$

$

Currently unavailable

11

Cub Cadet TT-19216236390

Washer, 42 x 54.6 x 1

$

$

Not available

12

Cub Cadet TT-22242000250

Ring, 25

$

$

Not available

13

Cub Cadet TT-22312080160

Pin, 8 x 16

$

$

Not available

14

Cub Cadet TT-24101060064

Bearing, 6006

$

$

Not available

15

Cub Cadet TT-24190160001

Ball, 1/2

$

$

Not available

16

Cub Cadet TT-24311000210

Packing, P 21

$

$

Not available

17

Cub Cadet TT-24421304708

Seal, TC304708

$

$

Not available

18

Cub Cadet TT-26476080302

Tapping Screw, 8 x 30

Note: (KT35 transmission)

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet TT-187Q0110010

Flange Bolt, M8 x 30

Note: (KT35C transmission)

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet TT-19216290300

Seal Kit

Note: (Not shown)

$73.99

$

Usually ships in 3-6 days

0
