Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Shifter Assembly and Rear, Center Suspension Parts Diagram

6x4 Utility Vehicle

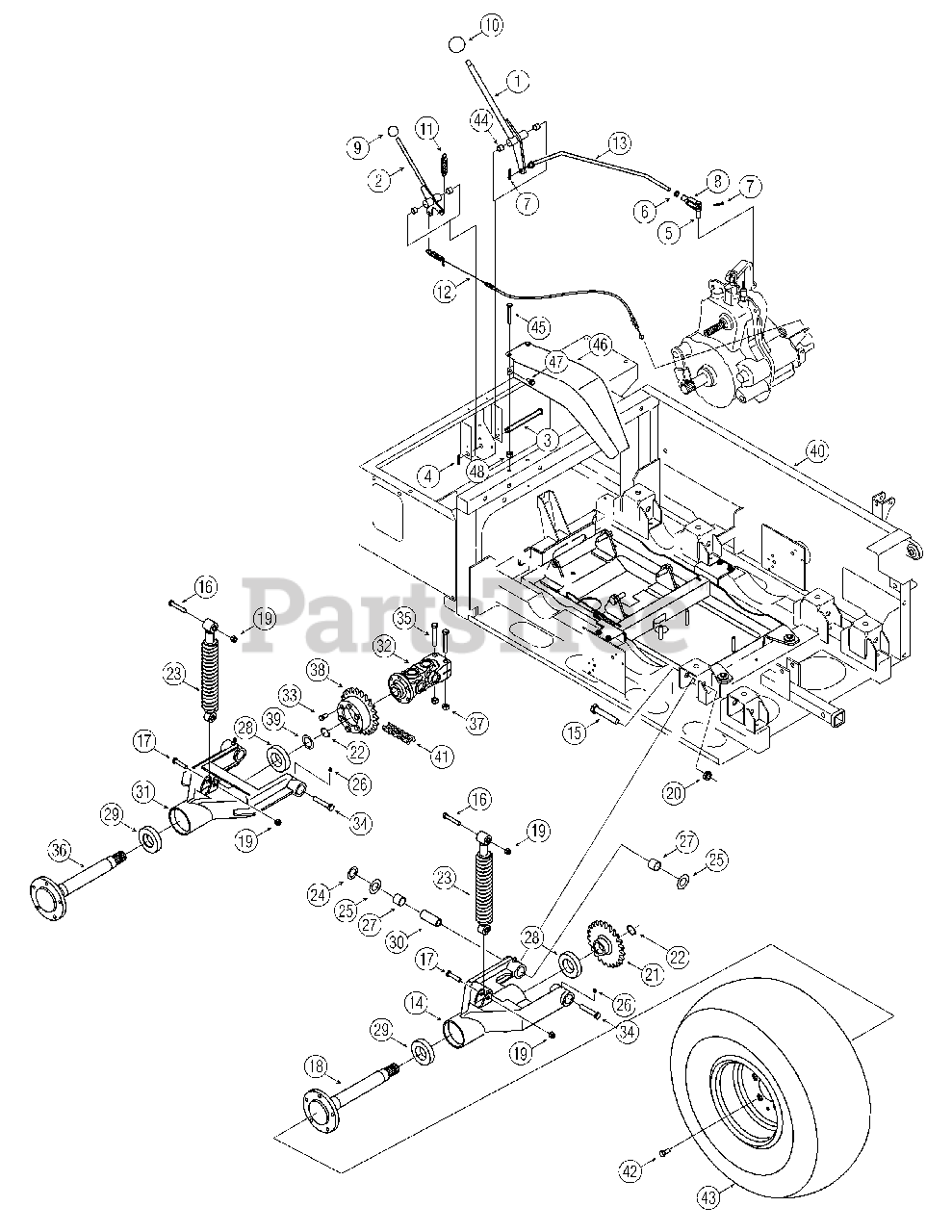

Shifter Assembly and Rear, Center Suspension Parts Diagram

  • Title

1

Cub Cadet 647-0069B

Lever Assembly, Transmission

$

$

Not available

2

Cub Cadet 647-0071B

Shifter Assembly, Differential Lock

$

$

Not available

3

Cub Cadet 711-04068

Pin, Clevis,.50 x 5.375

$

$

Not available

4

Cub Cadet 714-0115

Pin, Cotter

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 711-04017

Pin, Clevis, .375 x 2.0

$

$

Not available

6

Cub Cadet 712-0711

Nut, Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 719-3013

Clevis, Adjustment

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 720-04002

Knob, Ball

$

$

Not available

10

Cub Cadet 720-0434

Knob, Ball

$

$

Not available

11

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

12

Cub Cadet 746-04004

Control Cable, Differential Lock

$75.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 747-04010A

Shifter Rod, Transmission

$36.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 607-0042A

Axle Support Assembly, Rear Weld

Variations

Cub Cadet 607-0042A-0637

SUPPORT-REAR AXLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0298

Screw, Hex, 5/8-18 x 3.5, Gr5

$9.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3011

Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 711-1764

Axle Shaft, Rear Drive

$

$

Not available

19

Cub Cadet 712-0130

Nut, Hex Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

20

Cub Cadet 712-0413

Jam Nut, Lock, 5/8-18

$6.49

$

In Stock, only 1 left!

0

21

Cub Cadet 713-04007

Sprocket

$215.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 716-0401

Retaining Ring, External, 1.14

$7.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04176

Shock Absorber, 2.9 Stroke

$

$

Not available

24

Cub Cadet 736-0424

Washer, Flat, 1.06 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 736-3046A

Washer, Flat, 1.010 x 1.86 x .060

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 741-04030

Bearing Flange, 1.0 x 1.125 x 1.0
(Superseded to 941-04030)

$

$

Not available

28

Cub Cadet 741-0759

Ball Bearing, Internal Axle

$44.99

$

In Stock, Qty 6

0

29

Cub Cadet 741-0760

Ball Bearing, External Axle

$47.99

$

In Stock, only 4 left!

0

30

Cub Cadet 750-04004

Spacer, .63 x 1.0 x 2.594

$

$

Not available

31

Cub Cadet 607-0043A

Axle Support Assembly, Center Weld
(Superseded to 607-0043A-0637)

Variations

Cub Cadet 607-0043A-0637

SUPPORT-CENTER AXL - POWDER BLACK (0637)

$472.99

$

Usually ships in 3-6 days

0

$472.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 623-0026A

Weld Coupling Assembly
(Superseded to 923-0026A)

$396.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-3119

Screw, Hex, 3/8-16 x .75, Gr5

$6.99

$

In Stock, only 1 left!

0

34

Cub Cadet 710-0298

Screw, Hex, 5/8-18 x 3.5, Gr5

$9.99

$

In Stock, only 2 left!

0

35

Cub Cadet 710-3229

Screw, Hex, 7/16-14 x 2.75, Gr5

$

$

Not available

36

Cub Cadet 711-1763

Axle Shaft, Drive Center

$474.99

$

In Stock, only 1 left!

0

37

Cub Cadet 712-0290

Nut, Hex Lock,7/16-14

$4.99

$

In Stock, Qty 11

0

38

Cub Cadet 713-04005

Sprocket, Hub, 1.75 - 23T

$212.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-1389

Spacer, 1.78 x 1.88

$

$

Not available

40

Cub Cadet 607-04084

Frame Assembly, Complete

$

$

Not available

41

Cub Cadet 713-0605

Chain, 60-97 Pitch

$137.99

$

In Stock, only 2 left!

0

42

Cub Cadet 710-04009

Hex Screw, 7/16-20 x 1.5, Gr5

$

$

Not available

43

Cub Cadet 634-04108

Wheel Ass’y, 25 x 11 x 10, RH, All Terr.

$

$

Not available

43

Cub Cadet 634-04109

Wheel Ass’y, 25 x 11 x 10, LH, All Terr.

$

$

Not available

44

Cub Cadet 741-04002

Bushing,.504 x.628 x.50

$

$

Not available

45

Cub Cadet 710-0378

Hex Screw, 5/16-18 x 2.50

$4.99

$

In Stock, only 4 left!

0

46

Cub Cadet 707-04006

Belt Guard

$

$

Not available

47

Cub Cadet 710-0759

Screw, 5/16-18 x.625

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0
