Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Pedals and Dash Parts Diagram

6x4 Utility Vehicle

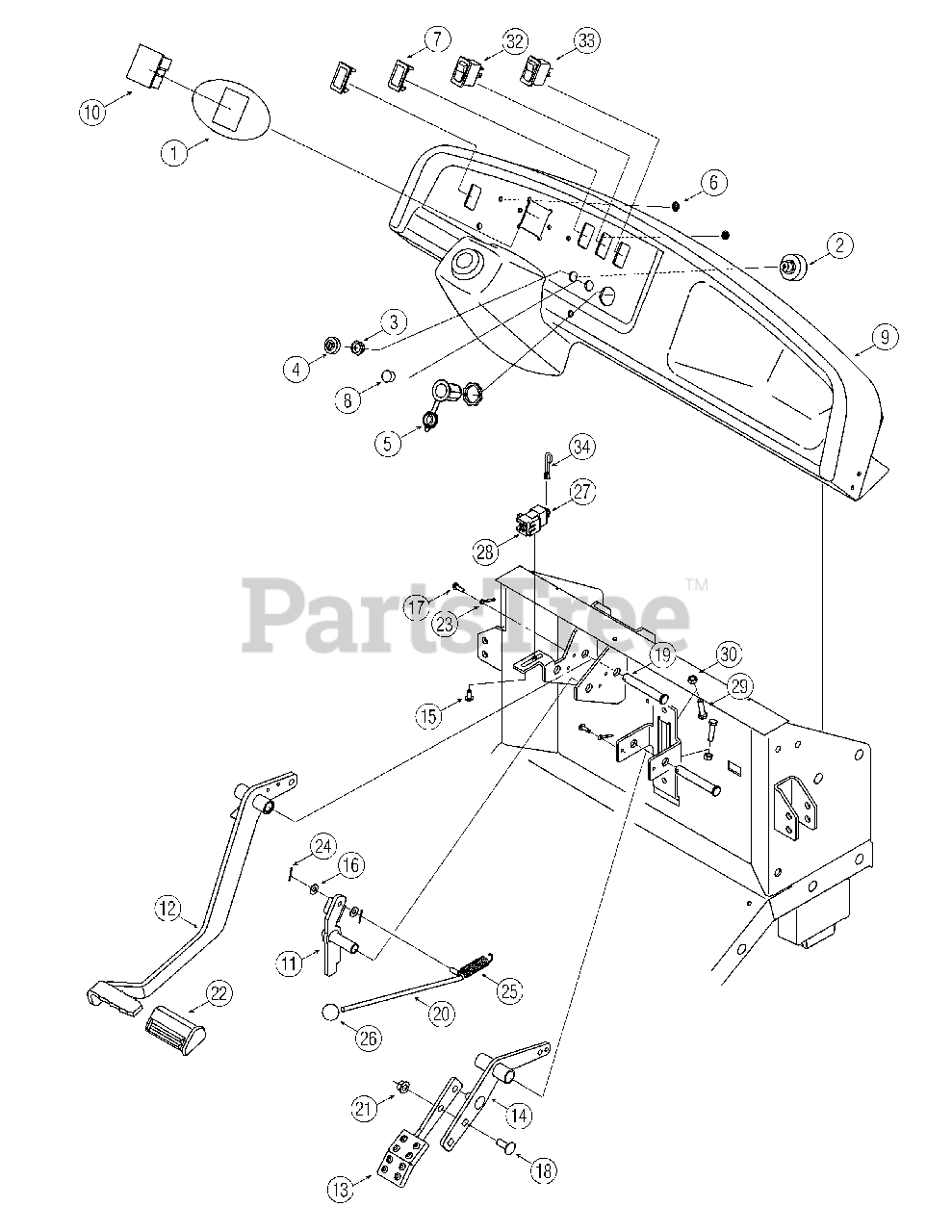

Pedals and Dash Parts Diagram

  • Title

1

Cub Cadet 731-04755

Instrument Dash Cover

$

$

Not available

2

Cub Cadet 725-3284

Key Switch
(Superseded to 925-3284A)

$64.99

$

In Stock, Qty 11

0

3

Cub Cadet 731-1346

Nut, Ignition Switch, 5/8-32

$

$

Currently unavailable

4

Cub Cadet 731-1347

Cap, Ignition Switch

$

$

Not available

5

Cub Cadet 725-2003

Power Receptacle, 12V

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-0293

Nut, Retainer, 1/8

$

$

Not available

7

Cub Cadet 731-04010

Switch Plug Panel

$20.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-04014

Plug, Horn Switch
(Superseded to 931-04014)

$

$

Not available

9

Cub Cadet 731-04676

Dash Panel

$

$

Not available

10

Cub Cadet 725-04022

Hour Indicator Meter
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

11

Cub Cadet 607-0021

Lever, Parking Brake

$

$

Not available

12

Cub Cadet 607-04077

Pedal Assembly, Brake
(Superseded to 607-04077-0637)

Variations

Cub Cadet 607-04077-0637

PEDAL ASM-BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 607-04082

Pedal Assembly, Throttle

$111.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 607-04083

Pedal Arm Assembly, Throttle

$135.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-04030

Screw, Hi-Lo, 1/4-20 x .5

$

$

Not available

16

Cub Cadet 736-0463

Washer, Flat .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

17

Cub Cadet 710-1237

Screw, Self-tapping, #10-32 x.625

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-04067

Pin, Clevis.50 x 3.25
(Superseded to 911-04067)

$6.49

$

In Stock, only 1 left!

0

20

Cub Cadet 711-1765

Rod, Brake Lock

$

$

Not available

21

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 735-3049

Pad, Brake Pedal
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

23

Cub Cadet 714-0121

Pin, Cotter, 5/32 x 1.00
(Superseded to 914-0121)

$

$

Not available

24

Cub Cadet 714-0127

Pin, Cotter, 1/16

$

$

Not available

25

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

26

Cub Cadet 720-04001

Knob, Ball

$

$

Not available

27

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

28

Cub Cadet 725-1657A

Snap Mount Switch, Interlock
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

29

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 759-3476A

Ignition Keys (Not shown)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

32

Cub Cadet 725-04012

Bed Lift Switch

$51.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 725-04016

Power Receptacle Switch

$52.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 714-0101

Cotter Pin

$4.99

$

In Stock, only 2 left!

0
