Big Country 642 Fire & Rescue (37AC642E710) - Cub Cadet 6x4 Utility Vehicle Engine - Air Intake Filtration Parts Diagram

6x4 Utility Vehicle

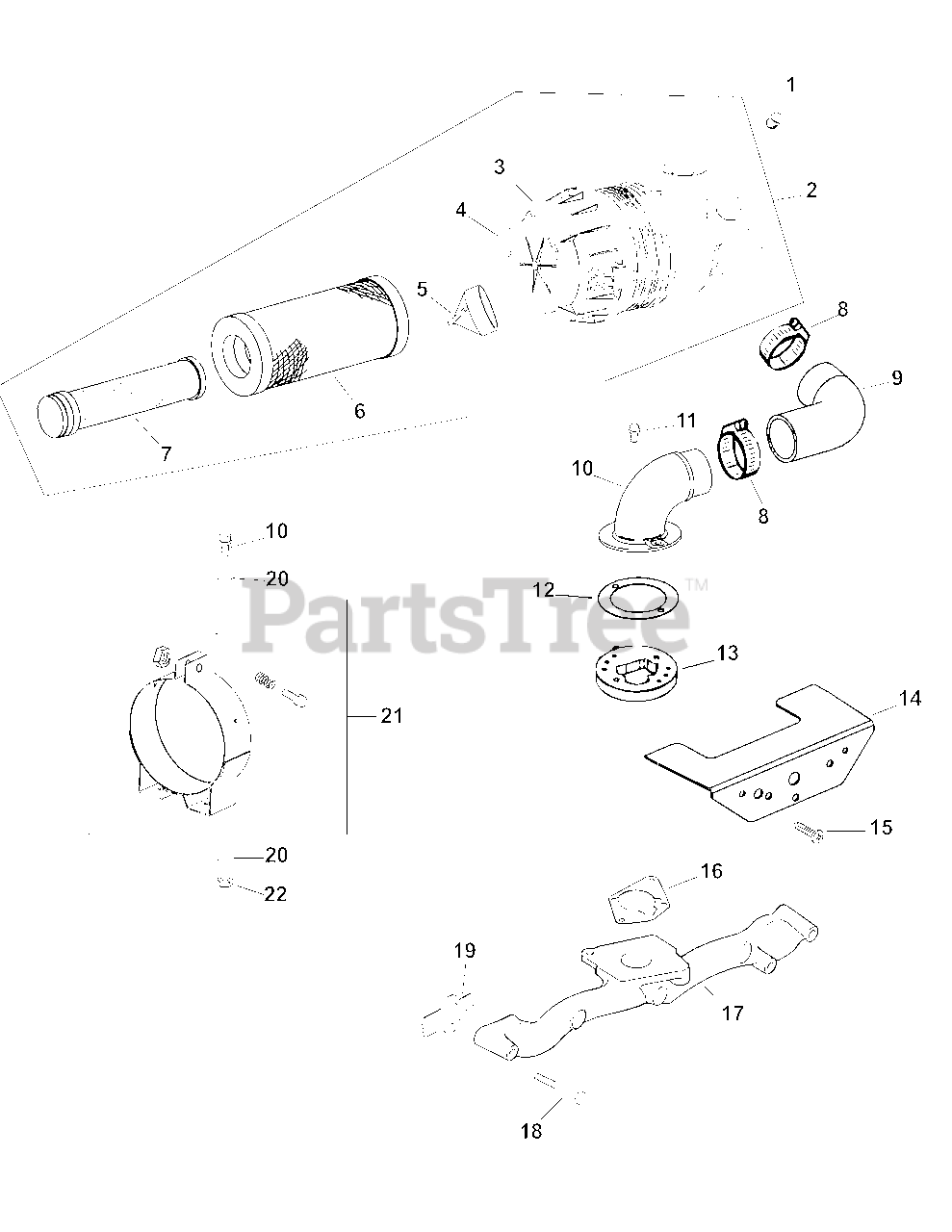

Engine - Air Intake Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-139-20-S

Plug, pipe

$8.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-048-08-S

Air cleaner assembly 5-1/4" (Includes 3-8)

$255.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-096-06-S

Cover assembly, plastic air cleaner (Includes 4)

$87.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-25-154-05-S

Clip
(Superseded to KH-62-154-07-S)

$13.99

$

In Stock, Qty 12

0

5

Cub Cadet KH-24-462-07-S

Valve, dust ejector

$21.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-25-083-01-S

Element, air cleaner - primary

$32.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-083-04-S

Element, safety

$32.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-24-237-02-S

Clamp, hose (2)

$5.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-326-32-S

Hose, air cleaner

$14.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-029-21-S

Adapter, remote air cleaner

$139.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-639016-S

Screw, hex. flange M6x1.0x16 (6)

$2.49

$

In Stock, Qty 6

0

12

Cub Cadet KH-24-041-34-S

Gasket, adapter

$3.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-029-26-S

Adapter assembly
(Superseded to KH-24-029-66-S)

$

$

Not available

14

Cub Cadet KH-24-314-25-S

Shield, debris

$44.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-086-06

Screw, phillips hd. 11-16x3/4" (2)

$

$

Not available

16

Cub Cadet KH-24-041-06

Gasket, air cleaner base

$2.99

$

In Stock, Qty 19

0

17

Cub Cadet KH-24-164-14

Manifold, intake

$

$

Not available

18

Cub Cadet KH-25-086-84-S

Screw, hex. flange M6x1.0x55 (4)
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-24-041-01

Gasket, intake manifold (2)
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

20

Cub Cadet KH-X-25-73-S

Washer, plain (4)

$3.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-25-126-02-S

Bracket, air cleaner
(Superseded to KH-24-126-191-S)

$62.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-M-647060

Nut, hex. lock (2)

$

$

Not available

Cub Cadet KH-25-113-27-S

Decal, air cleaner

$

$

Not available
