Big Country 641 Camo (37AS641D710) - Cub Cadet 6x4 Utility Vehicle Seats And Fuel Tank Parts Diagram

6x4 Utility Vehicle

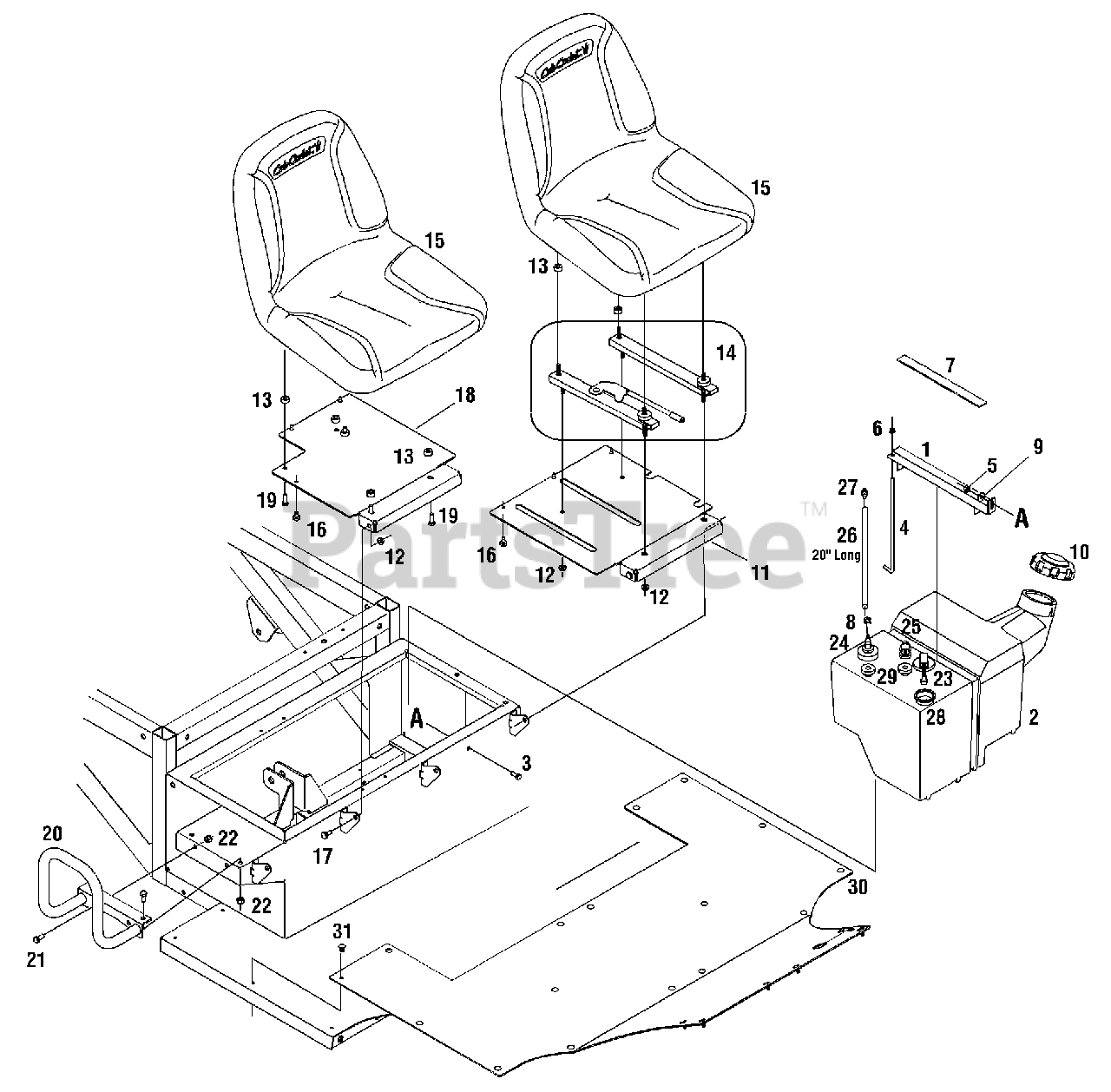

Seats And Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 607-0034

Bracket Assembly, Fuel Tank

$

$

Not available

2

Cub Cadet 631-04097

Tank Assembly, Fuel

Note: (Incl. valve, grommets, cap. switch & fitting)

$

$

Not available

Cub Cadet 751-10064

Fuel Tank Only

$

$

Currently unavailable

3

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1768

Hold-down Rod, Fuel Tank

$

$

Not available

5

Cub Cadet 712-0265

Sems Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 721-04006

Gasket, Fuel Tank (11")

$

$

Not available

8

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

9

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0852

Cap, Fuel
(Superseded to 951-0852)

$

$

Not available

11

Cub Cadet 707-04061A

Plate, Seat, LH
(Superseded to 907-04061A)

$

$

Not available

12

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 750-0258

Spacer, Seat

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 757-0389

Track Assembly, Seat

$

$

Not available

15

Cub Cadet 757-04008A

Seat
(Superseded to 757-04097)

$426.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 735-0271

Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, only 4 left!

0

17

Cub Cadet 738-0140

Shoulder Screw,.435 x .178-5/16 x .56

$5.99

$

In Stock, Qty 15

0

18

Cub Cadet 707-04062A

Plate, Seat, RH
(Superseded to 907-04062A)

$

$

Not available

19

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet 649-04002

Tube, Grab Handle
(Superseded to 649-04002-0637)

Variations

Cub Cadet 649-04002-0637

HANDLE-GRAB - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet 712-0130

Nut, Hex Lock Nylon, 3/8-16

$3.99

$

In Stock, Qty 13

0

23

Cub Cadet 725-2068

Low Fuel Sensor

$

$

Not available

24

Cub Cadet 751-3174

Fuel Return Fitting

$19.99

$

In Stock, only 1 left!

0

25

Cub Cadet 737-04010

Fuel Tank Shut Off Valve

$

$

Not available

26

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

27

Cub Cadet 737-0296

Vent

$12.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-0699

Grommet

$16.99

$

In Stock, only 3 left!

0

29

Cub Cadet 741-04006

Fuel Tank Grommet
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

30

Cub Cadet 735-04001

Floor Mat

$

$

Currently unavailable

31

Cub Cadet 726-0465

Retainer Clip

$4.99

$

In Stock, Qty 16

0
