Big Country 641 Camo (37AS641D100) - Cub Cadet 6x4 Utility Vehicle Transmission Accessories Parts Diagram

6x4 Utility Vehicle

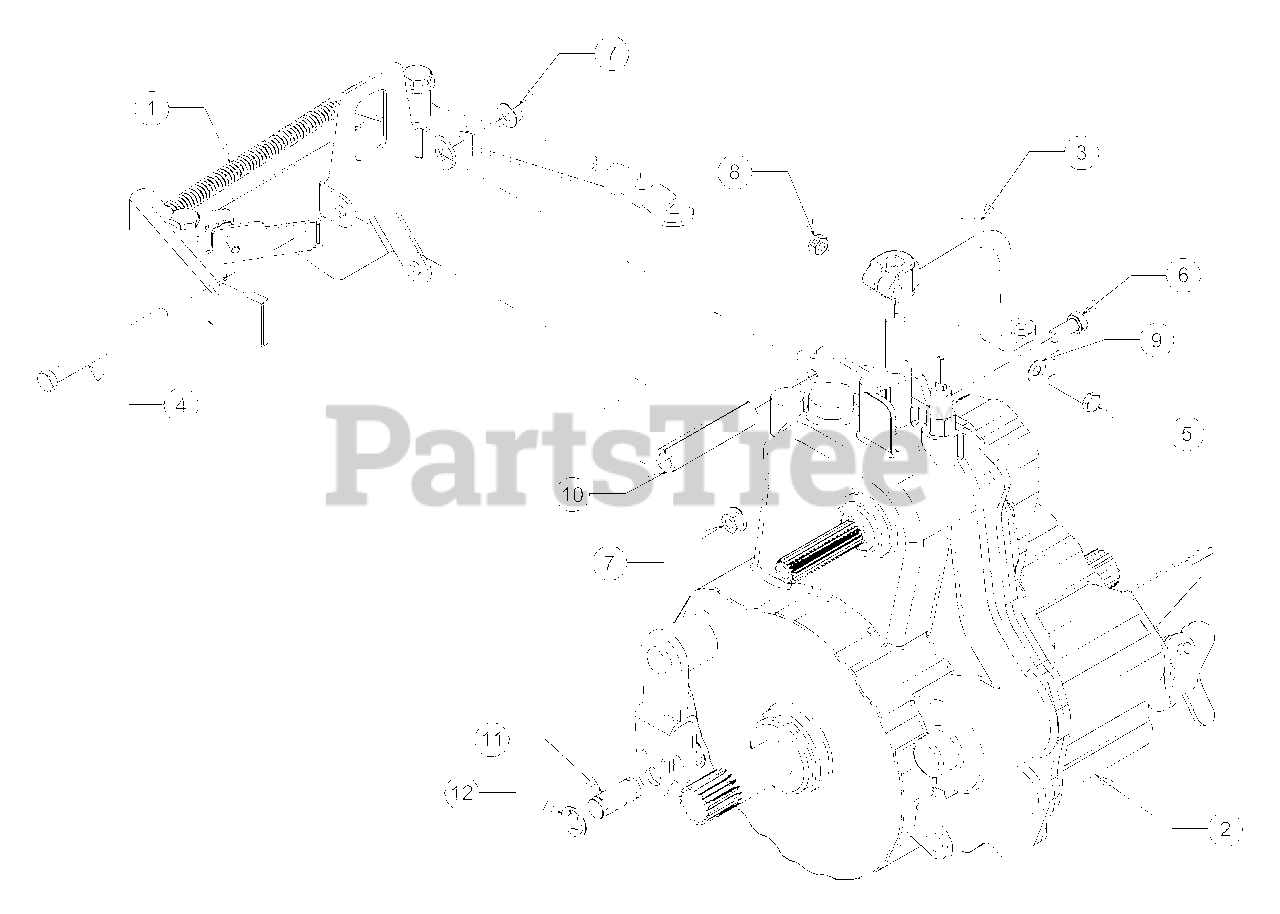

Transmission Accessories Parts Diagram

  • Title

1

~N/A

Shift Assembly, Interlock

$

$

Not available

2

Cub Cadet 618-0685

Transmission,Tuff Torq Model KT 35
(Superseded to TT-79216224023)

$3932.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-0369

Lever, Transmission

$

$

Not available

4

Cub Cadet 710-0693

Hex Screw, 3/8-16 x 4.50, Gr5

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0805

Hex Screw, 5/16-18 x 1.50, Gr5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3001

Hex Screw, 3/8-16 x .880, Gr5

$7.49

$

In Stock, Qty 9

0

7

Cub Cadet 712-3005

Lock Nut, Hex Flange 3/8-16

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3009

Nut, Hex Lock, 5/16-18

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0278

Washer, Flat, .330 x .687 x .030

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 750-3235

Spacer, .505 x .75 x 3.31

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04024

Pin, .625 x 1.37
(Superseded to 911-04024)

$25.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0106

E-Ring, .625

$4.49

$

In Stock, Qty 12

0

Cub Cadet 737-3120

Oil, DSO Plus
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 607-04015

Lever-Clutch Brake w/Pad B/C

Note: Part not shown for Interlock Shift Assembly

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 607-04017

Plate-Shift Interlock PLTD B/C

Note: Part not shown for Interlock Shift Assembly

$

$

Not available

Cub Cadet 607-04018-0637

BRKT-Shift Interlopowder Black

Note: Part not shown for Interlock Shift Assembly

$

$

Not available

Cub Cadet 710-0788

Screw-Tap 1/4-20 x 1.00

Note: Part not shown for Interlock Shift Assembly

$7.49

$

In Stock, only 2 left!

0

Cub Cadet 912-0298

Nut-Hex Jam 1/4-20

Note: Part not shown for Interlock Shift Assembly

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-3005

Nut-Hex Flange 3/8-16

Note: Part not shown for Interlock Shift Assembly

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-0814

Spring-Extension .56 Dia x 5.52

Note: Part not shown for Interlock Shift Assembly

$7.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0326

Washer-FL

Note: Part not shown for Interlock Shift Assembly

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 738-0213

Screw-SHLD .498 Dia x 1.450-THD

Note: Part not shown for Interlock Shift Assembly

$7.99

$

In Stock, only 2 left!

0

Cub Cadet 741-0491

Bearing-Nyliner

Note: Part not shown for Interlock Shift Assembly

$5.49

$

In Stock, only 3 left!

0
