Big Country 641 Camo (37AS641D100) - Cub Cadet 6x4 Utility Vehicle Frame Parts Diagram

6x4 Utility Vehicle

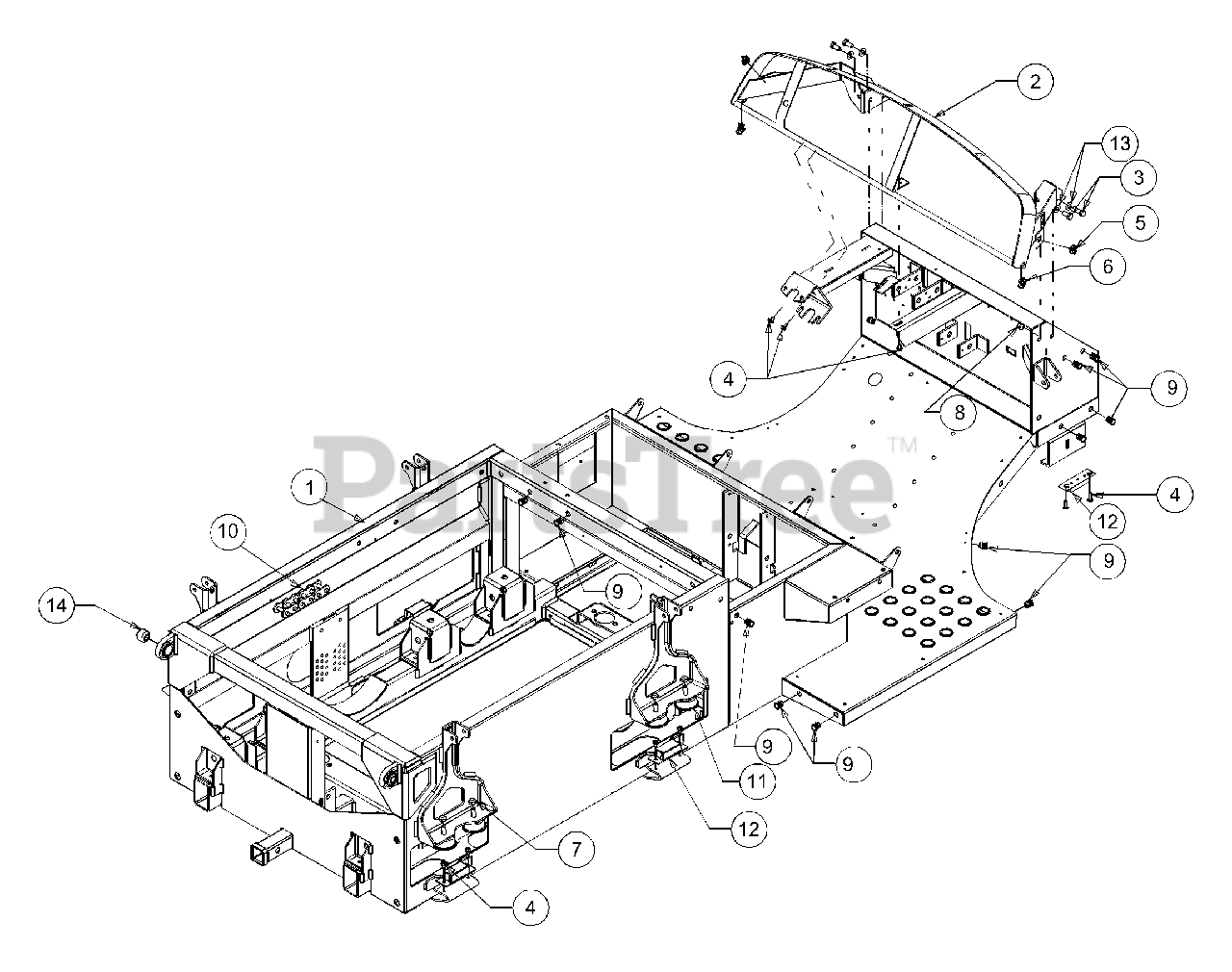

Frame Parts Diagram

  • Title

1

Cub Cadet 607-0044C

Frame Assembly, Complete

$

$

Not available

2

Cub Cadet 607-04007A

Frame Assembly, Upper Dash

Variations

Cub Cadet 607-04007A-0637

UPPER DASH FRAME(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0216

Screw, Hex, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04004

Nut, Retainer, 5/16-18

$

$

Not available

6

Cub Cadet 712-04005

U-Nut, 1/4-20

$

$

Not available

7

Cub Cadet 712-04006

Nut, Nylon Lock, M10-1.25

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0703A

Nut, Insert, 5/16-18

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 713-0605

Chain, 60-97 Pitch

$137.99

$

In Stock, only 2 left!

0

11

Cub Cadet 731-04011

Bumper, Compression Suspension

$

$

Not available

12

Cub Cadet 731-04016

Bumper, Compression Extension

$45.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-3050

Washer, Flat, .406 x 812 x .51

$4.49

$

In Stock, Qty 16

0

14

Cub Cadet 741-0761

Rubber Bushing, Bed Pivot

$

$

Not available

15

Cub Cadet 750-1261

Insert, 1/4-20

Note: Not Shown

$

$

Not available
