Big Country 641 Camo (37AC641D710) - Cub Cadet 6x4 Utility Vehicle Transmission - Input Shaft Assembly Parts Diagram

6x4 Utility Vehicle

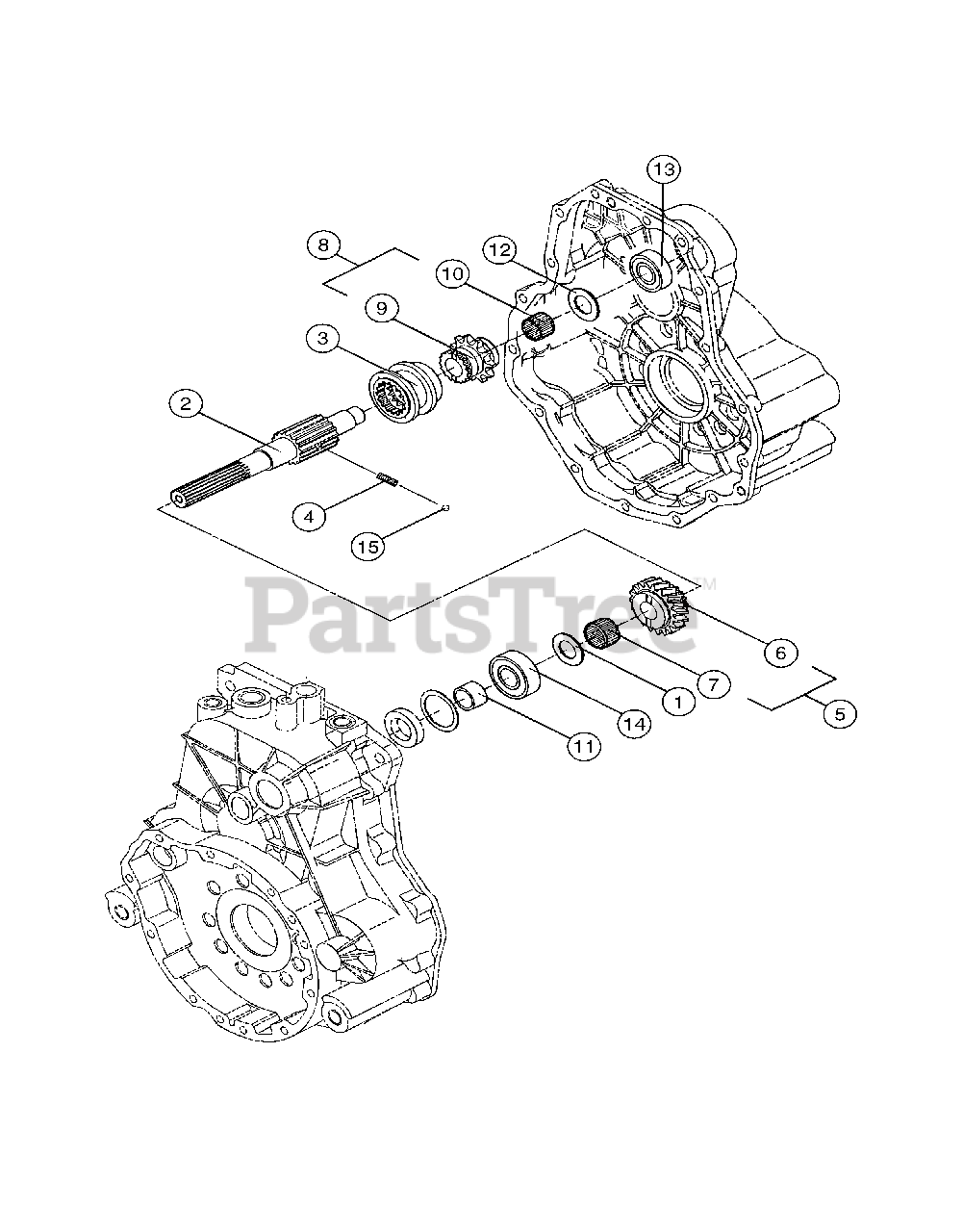

Transmission - Input Shaft Assembly Parts Diagram

  • Title

1

Cub Cadet TT-19216224680

Washer

$

$

Not available

2

Cub Cadet TT-19216225212

Shaft-Input

$

$

Not available

3

Cub Cadet TT-19216225341

Shifter
(Superseded to TT-19216225342)

$315.99

$

In Stock, only 1 left!

0

4

Cub Cadet TT-19216225250

Spring 29.5

Note: (KT35 transmission)

$

$

Not available

4

Cub Cadet TT-19216225310

Spring 18

Note: (KT35C transmission)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet TT-19216225371

Gear Asm
(Superseded to TT-19216225372)

$386.99

$

Usually ships in 3-6 days

0

6

Use Ref #5

$

$

Not available

7

Use Ref #5

$

$

Not available

8

Cub Cadet TT-19216225281

Sprocket Asm
(Superseded to TT-19216225282)

$371.99

$

Usually ships in 3-6 days

0

9

Use Ref #8

$

$

Not available

10

Use Ref #8

$

$

Not available

11

Cub Cadet TT-19216225290

Sleeve

$

$

Not available

12

Cub Cadet TT-1E619054160

Washer

$

$

Not available

13

Cub Cadet TT-24101062034

Bearing

$

$

Not available

14

Cub Cadet TT-19215931410

Bearing

$

$

Not available

15

Cub Cadet TT-24190080001

Bearing Ball, 1/4

$

$

Not available
