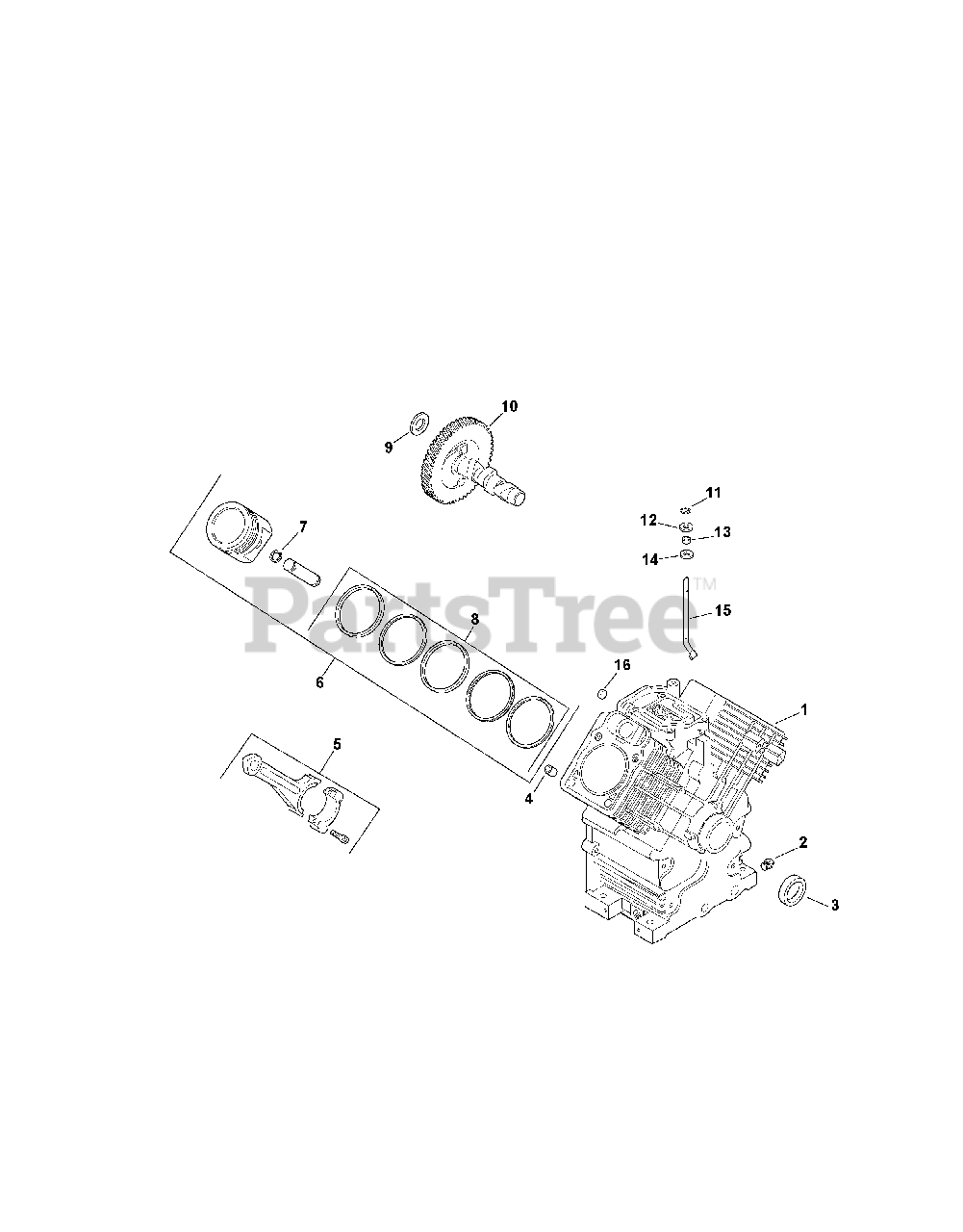

  • Title

1

Crankcase (Use Miniblock KH-24-782-15)

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, hex. head 3/8" (2)

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-032-01-S

Seal, front oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-380-13-S

Pin, locating (6)
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-13-S

Connecting Rod (Std.) (2)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-067-14

Connecting Rod (.25) (2)

$

$

Not available

6

Cub Cadet KH-24-874-17-S

Piston w/Ring Set (Std.) (2) Includes 7,8)
(Superseded to KH-24-874-46-S)

$

$

Not available

Cub Cadet KH-24-874-14-S

Piston w/Ring Set (.08) (2)
(Superseded to KH-24-874-47-S)

$

$

Not available

Cub Cadet KH-24-874-18-S

Piston w/Ring Set (.25) (2)
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-19-S

Piston w/Ring Set (.50) (2)
(Superseded to KH-24-874-49-S)

$

$

Not available

7

Cub Cadet KH-24-018-01

Retainer, piston pin (4)
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-24-108-11-S

Ring Set (Std. & .08) (2)
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-12-S

Ring Set (.25) (2)
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-13-S

Ring Set (.50) (2)
(Superseded to KH-24-108-25-S)

$

$

Not available

9

Cub Cadet KH-12-422-09

Shim, camshaft (A.R.) red
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, camshaft (A.R.) black
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, camshaft (A.R.) white
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, camshaft (A.R.) blue
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, camshaft - yellow
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, camshaft (A.R.) green
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, camshaft (A.R.) gray
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Camshaft
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-018-09-S

Retainer, ring

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-931010-S

Washer, plain 9 mm

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-28-032-09-S

Seal, governor cross shaft

$3.49

$

In Stock, Qty 6

0

14

Cub Cadet KH-24-468-15-S

Washer, plain 1/4"

$2.49

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-144-38-S

Shaft, governor cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-52-139-09

Plug, cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-462-12-S

Valve, oil drain ( NOT ILLUSTRATED goes in the 2 o'clock position)

$50.99

$

Usually ships in 2-5 days

0
