Big Country 640 (37BS640C100) - Cub Cadet 6x4 Utility Vehicle Fenders Parts Diagram

6x4 Utility Vehicle

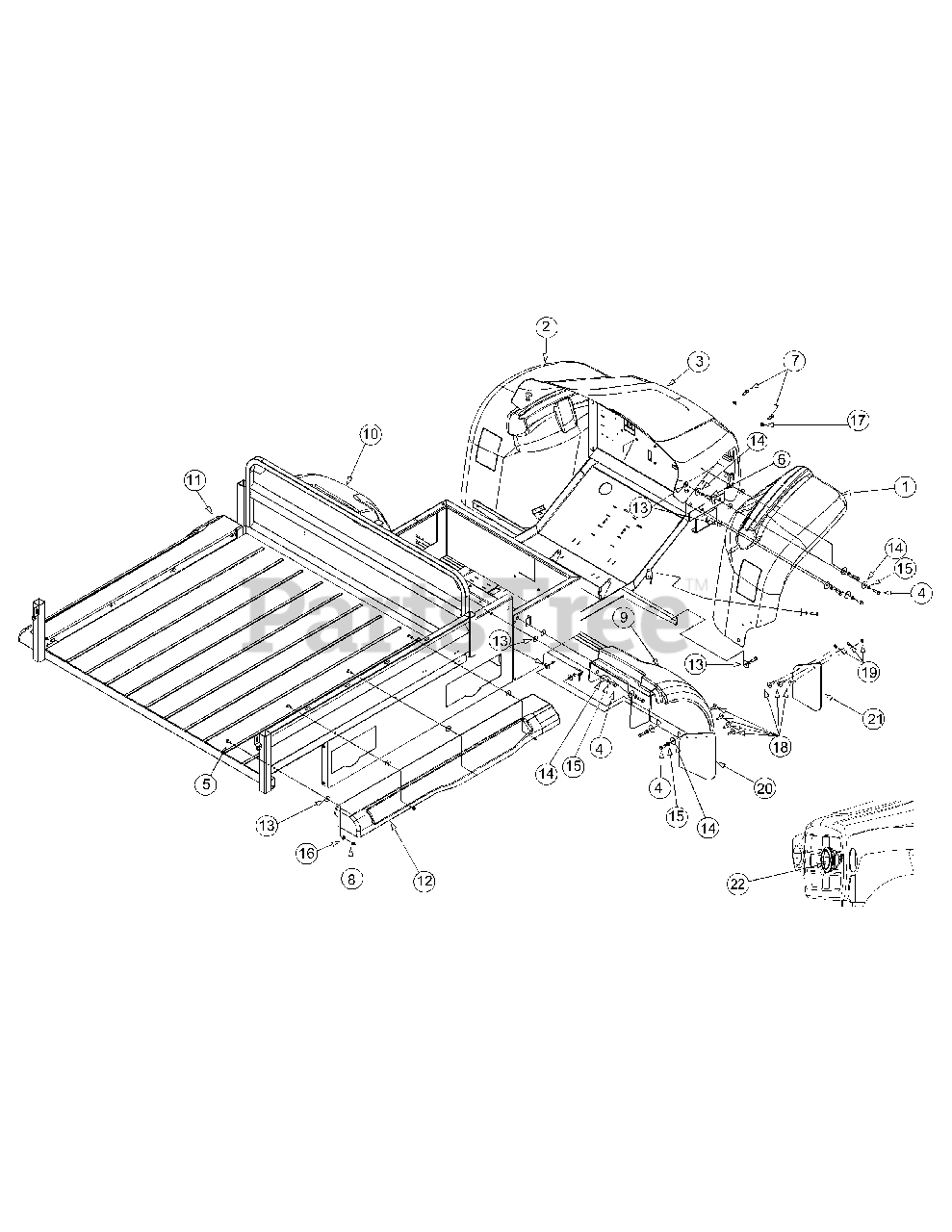

Fenders Parts Diagram

  • Title
1

Cub Cadet 731-04406

Front Fender Panel, RH
(Superseded to 931-04406)

$

$

Not available

2

Cub Cadet 731-04407

Front Fender Panel, LH
(Superseded to 931-04407)

$

$

Not available

3

Cub Cadet 731-04403

Hood Panel
(Superseded to 931-04403)

$

$

Not available

4

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-3232

Thumb Adjust Screw, 5/16-18 x 1.0

$9.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-3008

Hex Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0324

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 731-04404

Rear Fender Panel, RH
(Superseded to 931-04404)

$

$

Not available

10

Cub Cadet 731-04405

Rear Fender Panel, LH
(Superseded to 931-04405)

$

$

Not available

11

Cub Cadet 731-04411

Bed Skirt Panel, LH
(Superseded to 931-04411)

$

$

Not available

12

Cub Cadet 731-04410

Bed Skirt Panel, RH
(Superseded to 931-04410)

$

$

Not available

13

Cub Cadet 736-04008

Rubber Washer, .310 x 1.0 x .125

$

$

Not available

14

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

15

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-3020

Flat Washer, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

17

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .0652

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 728-04004

Pop Rivet .188 Dia
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0400

Flat Washer, .194 x .62 OD x .063

$5.49

$

In Stock, Qty 14

0

20

Cub Cadet 735-04035

Rear Mud Flap

$73.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-04003

Front Mud Flap

$48.99

$

In Stock, only 1 left!

0

22

Cub Cadet 625-04017

Headlight Assembly
(Superseded to 925-04017)

$

$

Not available
