Big Country 640 (37BS640B100) - Cub Cadet 6x4 Utility Vehicle Engine & Transmission Cradle Parts Diagram

6x4 Utility Vehicle

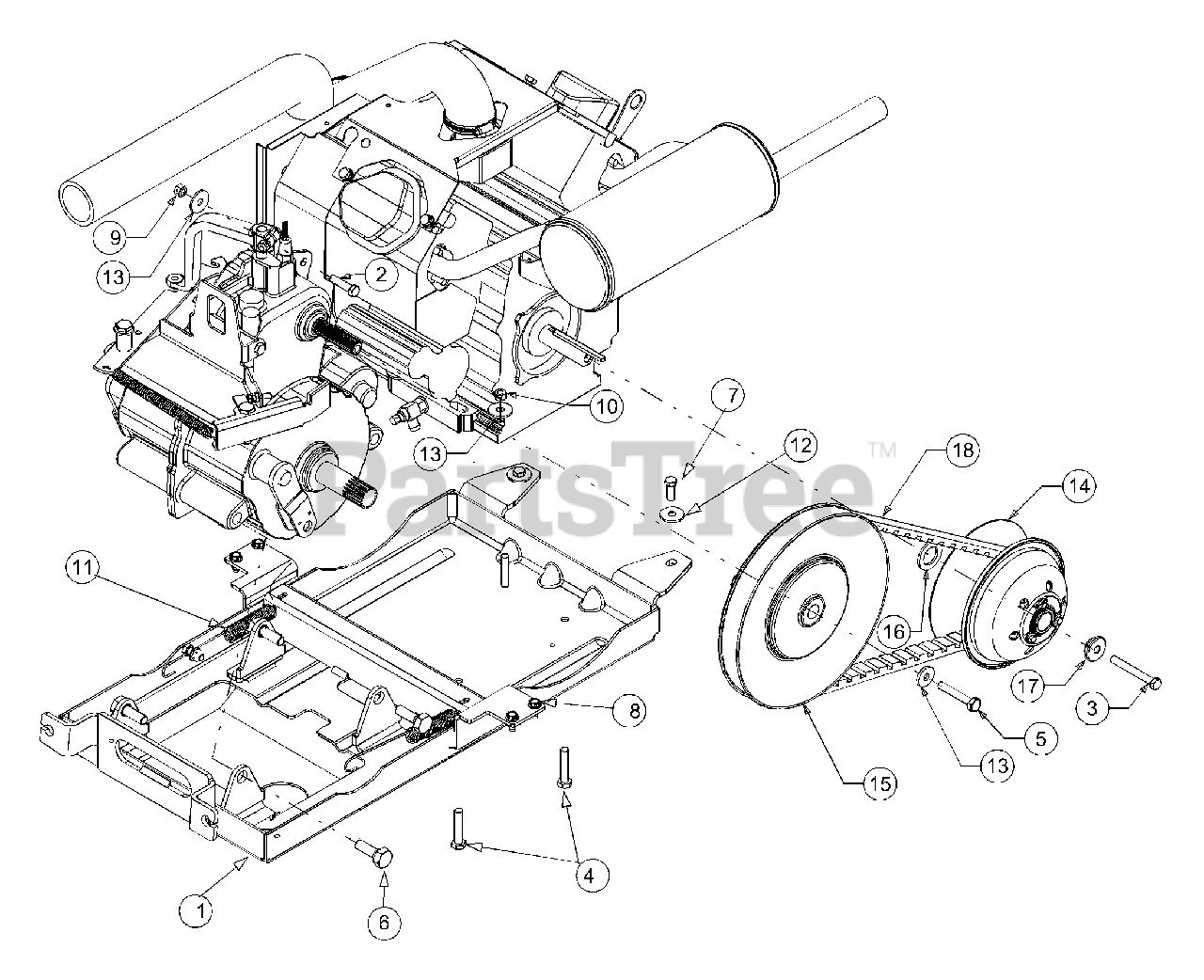

Engine & Transmission Cradle Parts Diagram

  • Title

1

Cub Cadet 607-0029A

Frame Assembly, Engine/Trans. Support

$

$

Not available

2

Cub Cadet 710-0344

Hex Screw, 3/8-16 x 1.5, Gr5

$5.99

$

In Stock, Qty 11

0

3

Cub Cadet 710-04019

Hex Screw, 3/8-24 x 3, Gr5

$

$

Not available

4

Cub Cadet 710-04024

Hex Screw, M10-1.25 x .50, Gr8

$

$

Not available

5

Cub Cadet 710-04025

Hex Screw, M10-1.5 x 60mm, Gr8

$

$

Not available

6

Cub Cadet 710-04028

Hex Screw, M16-2 x 40mm

$

$

Not available

7

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 2.25, Gr5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1260A

Hex Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 712-04006

Nut, Nylon Lock, M10-1.25

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-1186

Spring, Extension, .795 x 5.42

$

$

Not available

12

Cub Cadet 736-0133

Washer, Flat, .411 x 1.25 x .10

$5.49

$

In Stock, Qty 7

0

13

Cub Cadet 736-04005

Washer, Flat, .395 x 1.12 x .14

$8.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 618-0686A

Clutch Assembly, Engine
(Superseded to 302610C)

$822.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 618-0687

Clutch Assembly, Transmission

$

$

Not available

16

Cub Cadet 736-04009

Washer, 1.03 x 1.625 x .12

$46.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-04002

Spacer, Drive, .39 ID x 1.00 OD
(Superseded to 738-04002A)

$

$

Not available

18

Cub Cadet 754-0646

V-type Belt, Cogged, 1.19
(Superseded to 954-0646)

$64.99

$

In Stock, Qty 5

0
