Big Country 640 (37BS640B100) - Cub Cadet 6x4 Utility Vehicle Engine Accessories Parts Diagram

6x4 Utility Vehicle

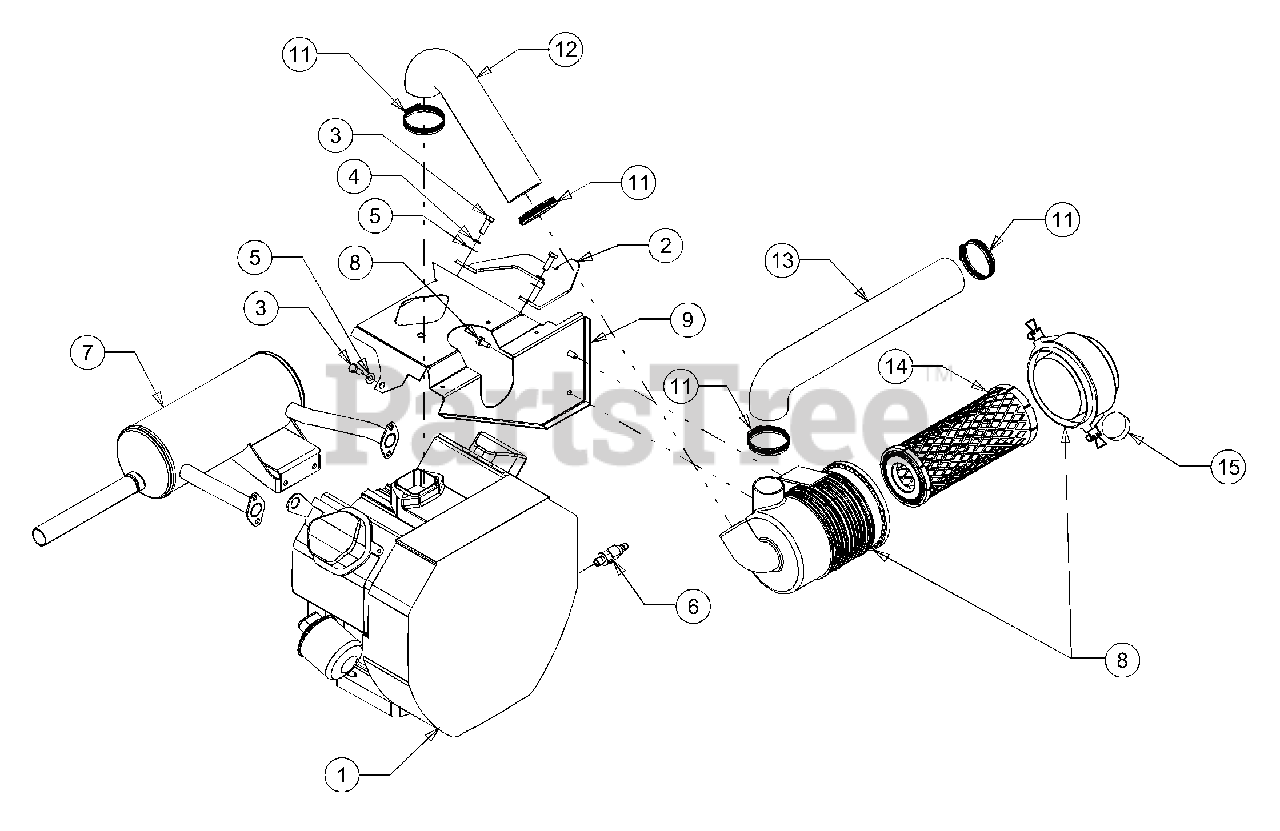

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 752H636740

Engine,Honda GX620K1

$

$

Not available

2

Cub Cadet 707-0375

Support, Upper Transmission

$

$

Not available

3

Cub Cadet 710-3206A

Hex Screw, M8-1.25 x 25, Gr8

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0278

Washer, Flat, .33 x .678 x .030

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

7

Cub Cadet 751-0854

Muffler,Honda GX620

$

$

Not available

8

Filter Assembly, Air Cleaner

Note: (Refs. 14 & 15)

$

$

Not available

9

Cub Cadet 707-04067A

Shoulder, Air Intake

Variations

Cub Cadet 707-04067A-0637

BRACKET-AIR INTAKE(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 710-1376

Hex Screw, M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0476

Hose Clamp, Adjustable 2"-3"

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-0851

Hose, Air Filter,Honda

$

$

Not available

13

Cub Cadet 751-0856

Hose, Air Cleaner Intake

$

$

Not available

14

Cub Cadet 751-3207

Filter, Air Cleaner Element

$28.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-3197

Filter, Air Cleaner Dust Valve

$37.99

$

In Stock, only 4 left!

0

Cub Cadet 751-3206

Canister, Air Cleaner

$

$

Not available

Cub Cadet 751-3208

Cap, Air Cleaner

$

$

Not available
