Big Country 640 (37BS640A100) - Cub Cadet 6x4 Utility Vehicle Bed Parts Diagram

6x4 Utility Vehicle

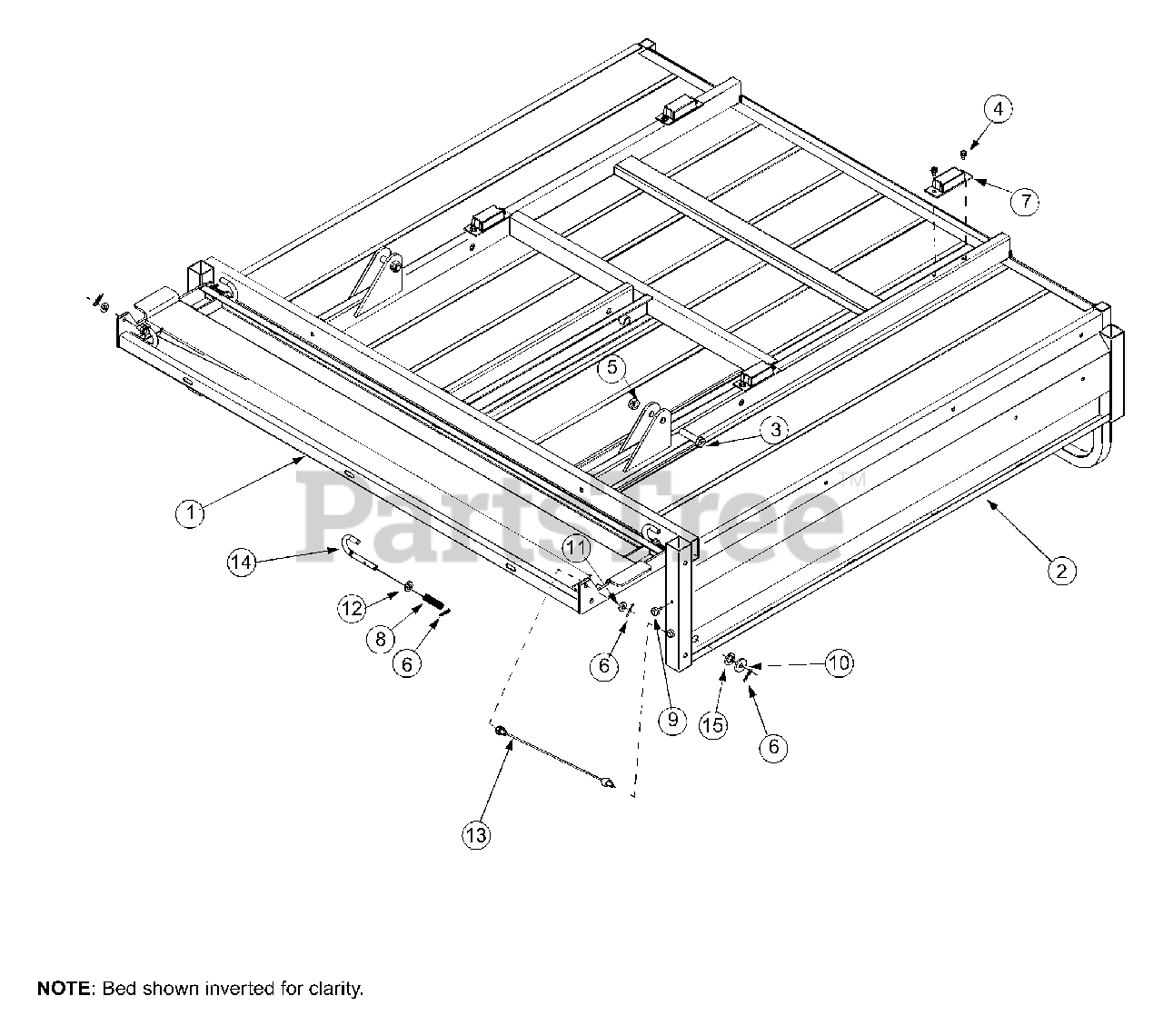

Bed Parts Diagram

  • Title

1

Cub Cadet 607-04028

Tailgate Assembly
(Superseded to 607-04028A)

$

$

Not available

2

Cub Cadet 607-04035

Bed Assembly, Utility
(Superseded to 907-04035-0637)

$

$

Not available

3

Cub Cadet 710-0489

Screw, Hex, 1/5-13 x 2.0, Gr5

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0104

Cotter Pin, .072Dia x 1.13LG

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-04016

Bumper, Extension Suspension

$45.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0306

Compression Spring, .406 x .531 x 1.75 LG
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

9

Cub Cadet 735-0271

Bumper, .62Dia x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0162

Washer, Flat, .64 ID x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3008

Washer, Flat, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 HDN

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 746-0968

Cable, LIft 16.16 LG

$19.99

$

In Stock, Qty 20+

0

14

Cub Cadet 747-1116

Handle, Deck Release

$12.99

$

In Stock, Qty 6

0

15

Cub Cadet 748-0331

Spacer, Shoulder .625 Dia x .324 Dia
(Superseded to 948-0331)

$

$

Not available
