Big Country 640 (37BS640-100) - Cub Cadet 6x4 Utility Vehicle Electrical System (Part 1) Parts Diagram

6x4 Utility Vehicle

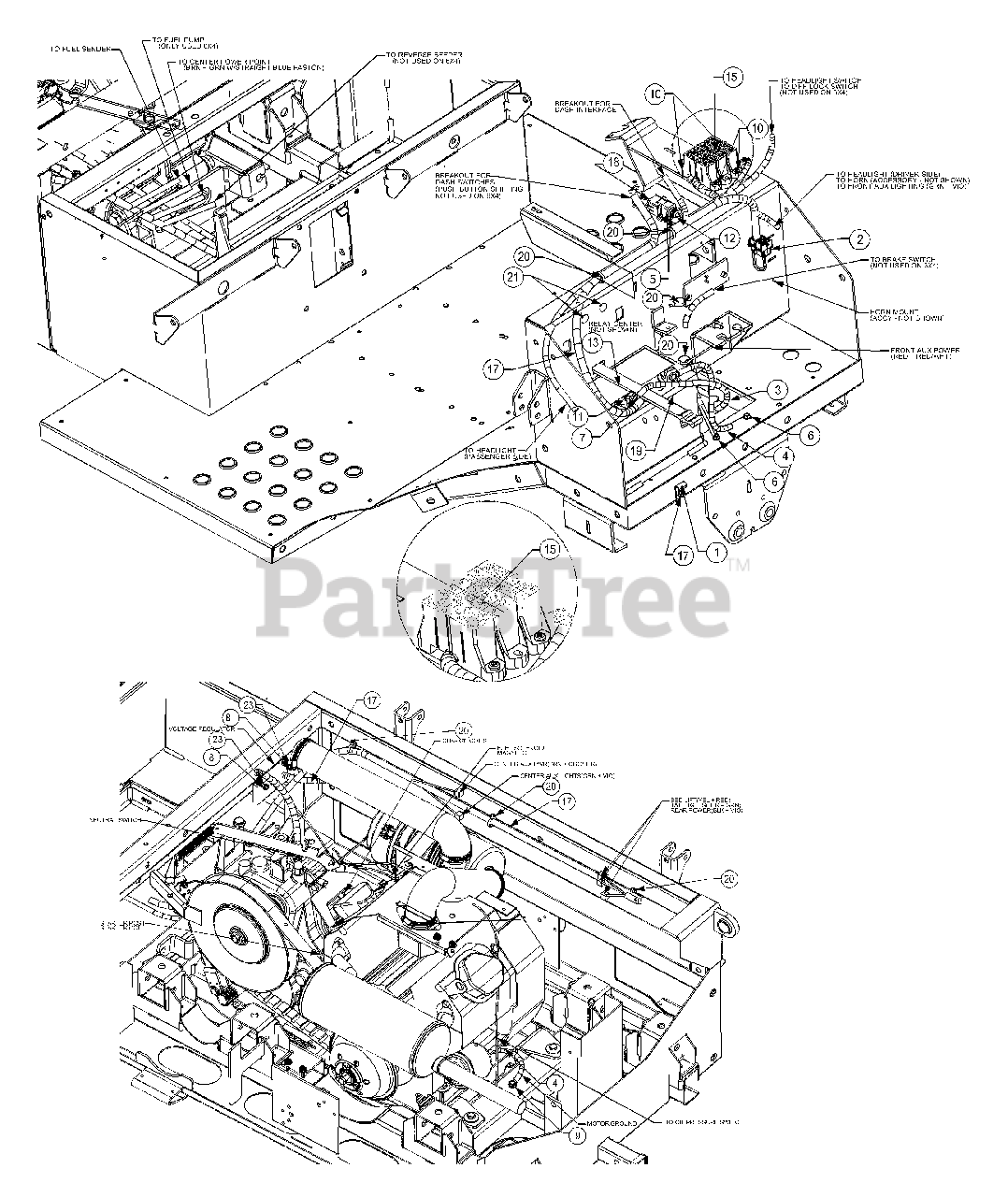

Electrical System (Part 1) Parts Diagram

  • Title
1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 629-04008

Connection Assembly

$

$

Currently unavailable

3

Cub Cadet 629-04001

Harness Assembly, Utility Starter
(Superseded to 929-04001)

$

$

Not available

4

Cub Cadet 629-04060

Harness Assembly, Ground

$

$

Not available

5

Cub Cadet 710-04030

Screw, Self-tapping 1/4-20

$

$

Not available

6

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0703

Screw, Hex Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

8

Cub Cadet 710-0788

Screw, Self-tapping, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-1260A

Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3009

Screw, #10-24 x 0.75

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 721-3049

Cover, Protection

$

$

Not available

13

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

14

Cub Cadet 725-0157

Cable, Tie 3/16 x.05 x 7.4

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 725-04008

Fuse, 5 Amp

$

$

Not available

16

Cub Cadet 725-04065

Harness, Utility Wire
(Superseded to 925-04065)

$

$

Not available

17

Cub Cadet 725-04067

Harness, Motor Wire
(Superseded to 925-04067)

$

$

Not available

18

Cub Cadet 725-1657A

Switch, Interlock
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

19

Cub Cadet 725-1738

Battery, 300 CCA
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 726-0470

Cable Tie, 19" x 8.39"

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-3046

Clip, Ratchet.250 Dia.

$3.99

$

In Stock, Qty 16

0

22

Cub Cadet 726-3008

Heat Shield Cable Clip

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
