Big Country 640 (37AS640D710) - Cub Cadet 6x4 Utility Vehicle Engine - Cylinder Head Parts Diagram

6x4 Utility Vehicle

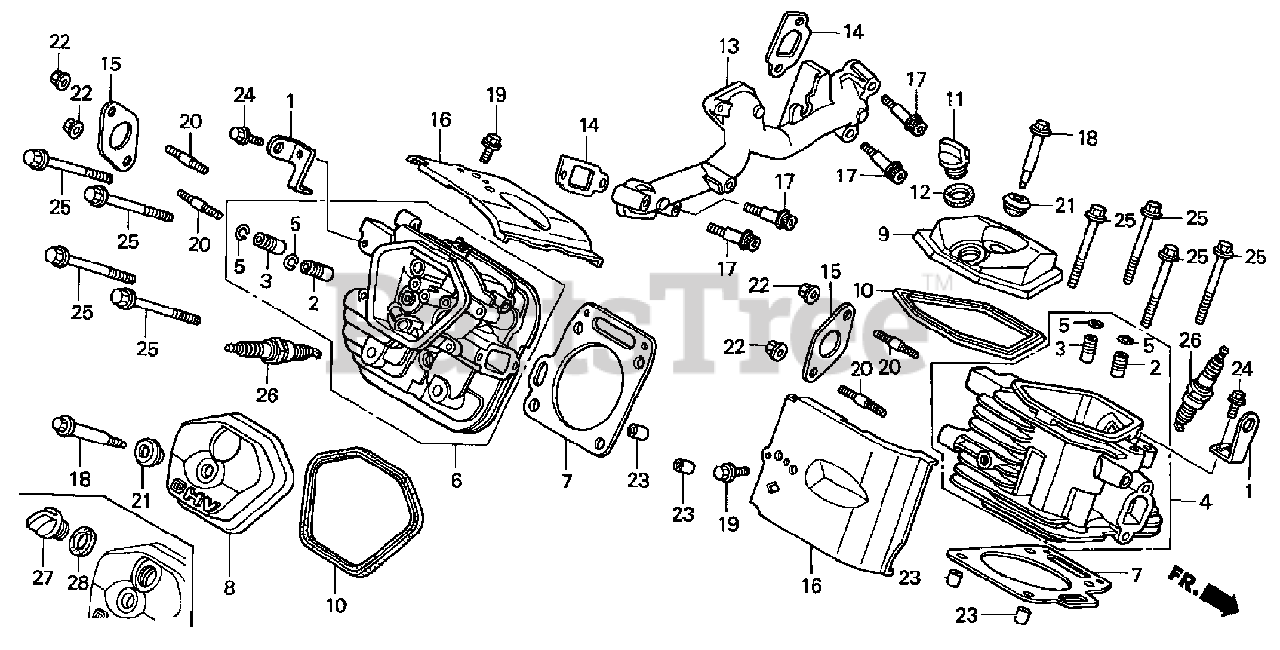

Engine - Cylinder Head Parts Diagram

  • Title
1

Honda 11911-ZJ1-840

Hanger, Engine

$3.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

Guide, Valve (OS)

$

$

Not available

3

Honda 12205-ZJ1-405

Guide, Ex. Valve (OS)

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 12210-ZJ1-840

Cylinder Head (#1)
(Superseded to 12210-ZJ1-406)

$

$

Not available

5

Honda 12216-ZE2-300

Clip, Valve Guide

$2.49

$

In Stock, Qty 5

0

6

Cub Cadet 12220-ZJ1-840

Cylinder Head (#2)

$

$

Not available

7

Honda 12251-ZJ1-841

Gasket, Cylinder Head

$20.99

$

In Stock, only 2 left!

0

8

Honda 12311-ZJ1-840

Cover, Head

$38.99

$

In Stock, only 1 left!

0

9

Honda 12314-ZJ1-840

Cover, Head Filler

$43.99

$

Usually ships in 3-6 days

0

10

Honda 12391-ZE2-020

Gasket, Cylinder Head Cover

$11.99

$

In Stock, Qty 6

0

11

Honda 15611-MB0-000

Cap, Oil Filler

$12.99

$

In Stock, Qty 5

0

12

Honda 15625-ZJ1-840

Gasket, Oil Filler Cap

$5.49

$

In Stock, only 1 left!

0

13

Honda 17101-ZJ1-840

Manifold, In

$220.99

$

Usually ships in 3-6 days

0

14

Honda 17151-ZJ1-841

Gasket, In. Manifold

$5.49

$

In Stock, only 2 left!

0

15

Honda 18333-ZE3-800

Gasket, Ex. Pipe
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

16

Honda 19682-ZJ1-840

Shroud, Head

$12.99

$

Usually ships in 3-6 days

0

17

Honda 90011-ZJ1-841

Bolt, Socket (8x45)

$4.99

$

In Stock, only 2 left!

0

18

Honda 90014-ZE2-000

Bolt, Head Cover

$6.99

$

In Stock, only 1 left!

0

19

Honda 90014-952-000

Bolt, Flange (6x14)

$2.99

$

In Stock, only 4 left!

0

20

Honda 90018-ZJ1-840

Bolt, Stud (8x22)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90441-ZE2-010

Washer, Head Cover

$6.49

$

In Stock, Qty 6

0

22

Honda 94050-08000

Nut, Flange (8mm)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94301-12200

Pin A, Dowel (12x20)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08020-00

Bolt, Flange (8x20)

$2.49

$

In Stock, only 3 left!

0

25

Honda 95701-10080-00

Bolt, Flange (10x80)

$4.49

$

In Stock, only 3 left!

0

26

Honda 98079-52876

Spark Plug (BPR2ES) (NGK)

$3.49

$

In Stock, only 4 left!

0
