Big Country 640 (37AS640B710) - Cub Cadet 6x4 Utility Vehicle Engine - Cylinder Barrel Parts Diagram

6x4 Utility Vehicle

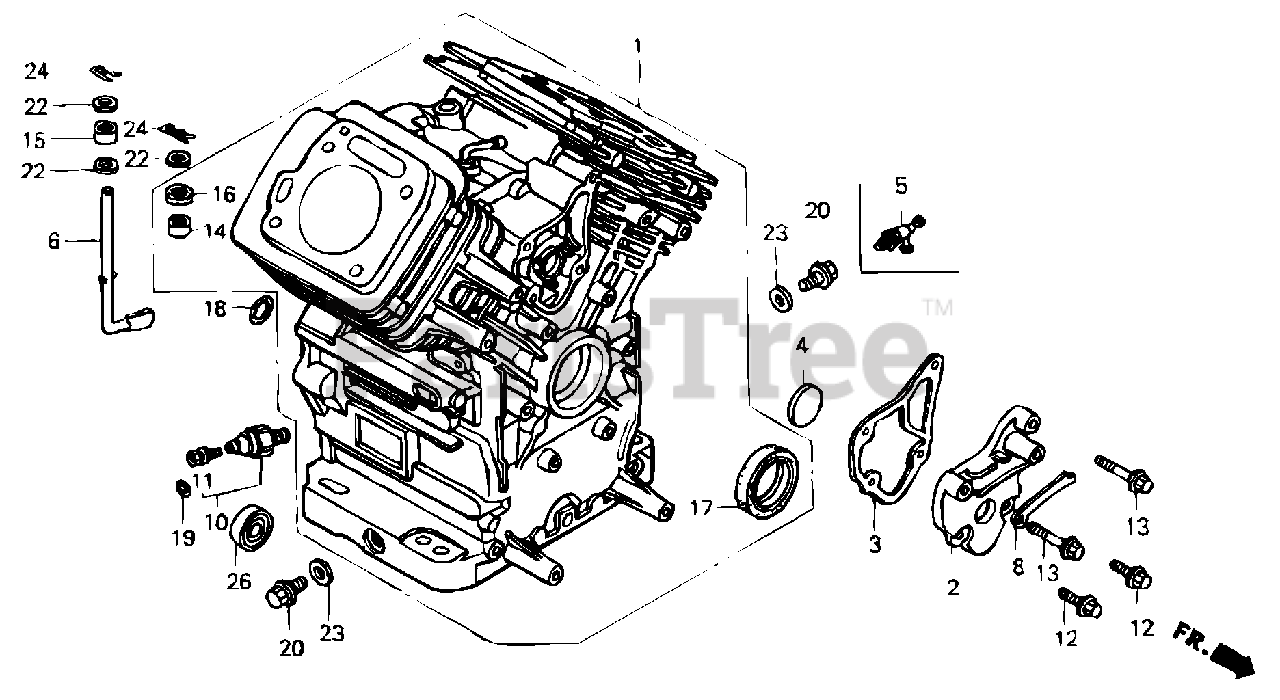

Engine - Cylinder Barrel Parts Diagram

  • Title

1

Honda 12000-ZJ1-841

Cylinder Assembly
(Superseded to 12000-ZJ1-415)

$1440.99

$

Usually ships in 3-6 days

0

2

Honda 12356-ZJ1-000

Cover, Breather

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

Gasket, Breather Cover

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

Valve, Breather

$3.99

$

In Stock, Qty 5

0

5

Honda 15558-ZJ1-010AH

Valve, Drain (14x1.5)

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16541-ZJ1-840

Shaft, Governor Arm

$44.99

$

Usually ships in 3-6 days

0

8

Honda 31511-ZJ1-000

Clamp, Wire

$4.49

$

Usually ships in 3-6 days

0

10

Honda 37240-ZG3-E01

Switch, Oil Pressure

$44.99

$

Usually ships in 3-6 days

0

11

Honda 90002-ZG5-004

Screw-washer (4x8)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90029-888-000

Bolt, Flange (6x16)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90031-ZE1-000

Bolt, Flange (6x32)

$3.99

$

In Stock, only 2 left!

0

14

Honda 91001-ZJ1-841

Bearing, Needle (8x12.7x11.1)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 91002-ZJ1-841

Bearing, Needle (8x12x10)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 91201-ZE9-003

Oil Seal (8x14x5)

$5.49

$

In Stock, Qty 11

0

17

Honda 91201-ZJ1-841

Oil Seal (38x58x9)

$11.99

$

In Stock, only 1 left!

0

18

Honda 91302-MB6-830

O-ring (13x3.0)

$2.49

$

In Stock, only 1 left!

0

20

Honda 92800-14000

Bolt, Drain Plug (14mm)

$5.99

$

Usually ships in 3-6 days

0

22

Honda 94102-08800

Washer, Plain (8mm)

$1.49

$

In Stock, Qty 9

0

23

Honda 94109-14000

Washer, Drain Plug (14mm)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94251-08000

Pin, Lock (8mm)

$1.99

$

In Stock, Qty 13

0

26

Honda 96140-60030-10

Bearing, Radial Ball (6003)

$19.99

$

Usually ships in 3-6 days

0
