Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Fenders January 7, 2003 And After Parts Diagram

6x4 Utility Vehicle

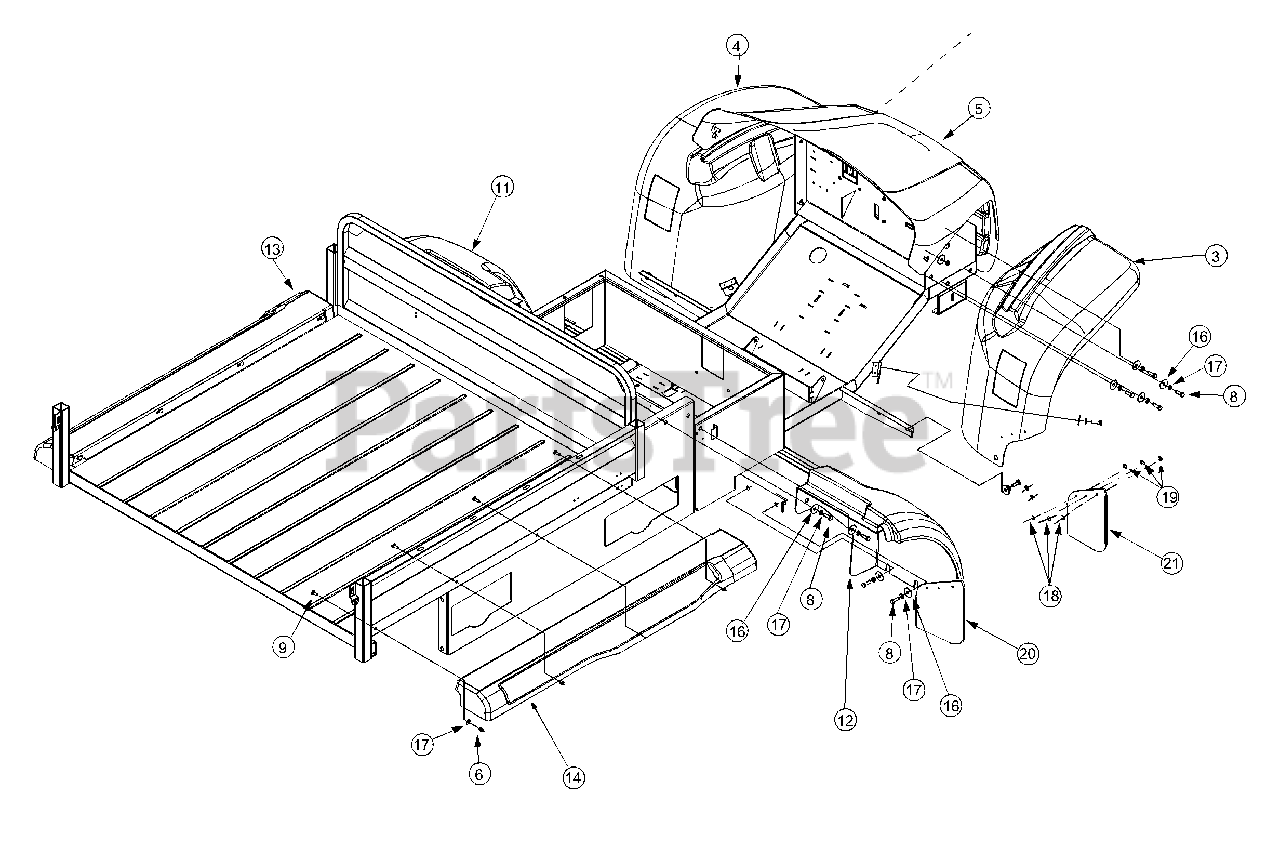

Fenders January 7, 2003 And After Parts Diagram

  • Title

3

Cub Cadet 631-04068

Panel, Front Fender, RH

$

$

Currently unavailable

4

Cub Cadet 631-04069

Panel, Front Fender, LH

$

$

Currently unavailable

5

Cub Cadet 631-04067

Panel, Hood

$

$

Currently unavailable

6

Cub Cadet 710-0324

Hex Lock Nut, Nylon, 1/4-20

$

$

Currently unavailable

8

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3232

Screw, Thumb Adjust, 5/16-18 x 1.0

Note: (Not Shown)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet 710-3008

Hex Screw, 1/4-20

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 731-04405

Panel, Rear Fender, LH
(Superseded to 931-04405)

$

$

Not available

12

Cub Cadet 731-04404

Panel, Rear Fender,RH
(Superseded to 931-04404)

$

$

Not available

13

Cub Cadet 731-04411

Panel, Bed Skirt, LH
(Superseded to 931-04411)

$

$

Not available

14

Cub Cadet 731-04410

Panel Bed Skirt, RH
(Superseded to 931-04410)

$

$

Not available

Cub Cadet 736-04008

Washer, Rubber, .310 x 1.0 x .125

$

$

Not available

16

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

17

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3020

Flat Washer, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .0652

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 728-04004

Rivet, Pop .188 Dia
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0400

Flat Washer, .194 x .62 OD x .063

$5.49

$

In Stock, Qty 11

0

20

Cub Cadet 735-04035

Mud Flap, Rear

$73.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-04003

Mud Flap, Front

$48.99

$

In Stock, only 1 left!

0
