Big Country 640 (37AS640A100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Fuel System (Part 1) Parts Diagram

6x4 Utility Vehicle

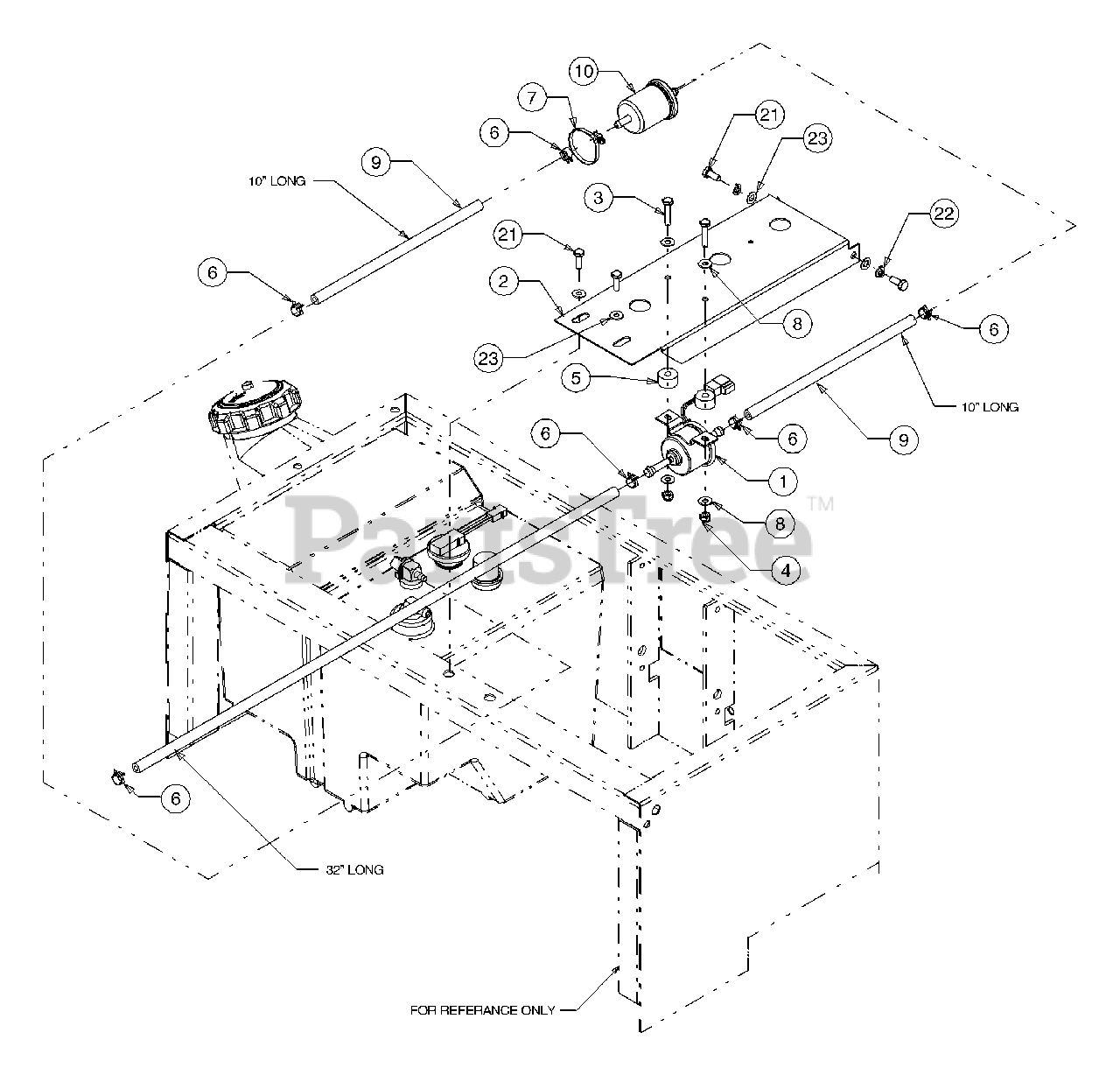

Fuel System (Part 1) Parts Diagram

  • Title

1

Cub Cadet KM-49040-2065

Pump Assembly, Fuel

$182.99

$

In Stock, Qty 6

0

2

Cub Cadet 707-0381

Support Plate, Console

Variations

Cub Cadet 707-0381-0637

PLATE-CONSOLE SUPT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0106

Hex Screw, 1/4-20 x 1.25, Gr5

$3.99

$

In Stock, Qty 12

0

4

Cub Cadet 712-0324

Nut, Nylon Hex Lock, 1/4-20, Gr8

$3.99

$

In Stock, Qty 16

0

5

Cub Cadet 722-0160

Bushing, .96 OD x .50

$

$

Not available

6

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 726-0470

Cable Tie, 19 x 8.39

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-3020

Washer, Flat, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

9

Cub Cadet 751-0535

Hose, Fuel Line

$

$

Currently unavailable

10

Cub Cadet KB-12581-43012

Filter, Fuel

$44.99

$

Usually ships in 3-6 days

0

?18

Cub Cadet 751-0853

Gauge, Fuel Tank

$

$

Not available

21

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0278

Washer, Flat, .330 x .687 x .030

$5.99

$

Usually ships in 3-6 days

0
