Big Country 640 (37AS640A100) - Cub Cadet 6x4 Utility Vehicle (SN: 2E012B & After) Axle (Front Suspension) Parts Diagram

6x4 Utility Vehicle

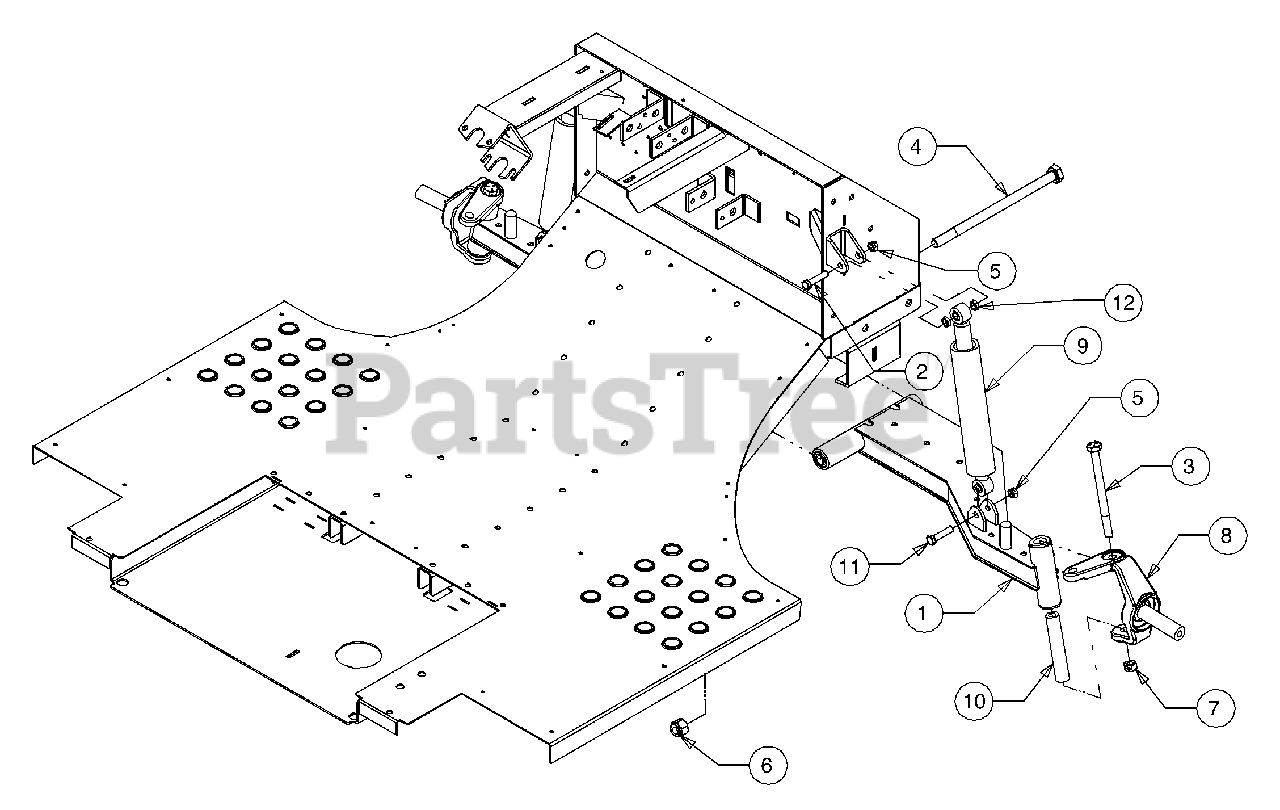

Axle (Front Suspension) Parts Diagram

  • Title

1

Cub Cadet 607-04004

Axle Assembly, Right-front

$

$

Not available

Cub Cadet 737-04006

Grease Fitting

$

$

Not available

Cub Cadet 741-0758

Bearing, .63 ID x 1.19 OD

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0762

Bushing, Stearing

$

$

Not available

Cub Cadet 750-1357

Spacer, .645 ID x 1.063 OD

$

$

Not available

Cub Cadet 607-04005

Axle Assembly, Left-front

$

$

Not available

Cub Cadet 737-04006

Grease Fitting

$

$

Not available

Cub Cadet 741-0758

Bearing, .63 ID x 1.19 OD

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0762

Bushing, Stearing

$

$

Not available

Cub Cadet 750-1357

Spacer, .645 ID x 1.063 OD

$

$

Not available

2

Cub Cadet 710-04023

Hex Screw, M10-1.25 x 65mm

$

$

Not available

3

Cub Cadet 710-04012

Hex Screw, 1/2-13 x 6.50, Gr5

$16.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04013

Hex Screw, 5/8-11 x 11, Gr5

Note: Used September 17, 2002 and before

$

$

Not available

Cub Cadet 710-04120

Hex Screw, 5/8-11 x 11.3, Gr5

Note: Used September 18, 2002

$

$

Not available

5

Cub Cadet 712-04006

Nut, Hex Lock, Nylon, M10 -1.25

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3016

Nut, Hex Lock, Nylon, 5/8-11, Gr5

$6.99

$

In Stock, Qty 13

0

7

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 723-0618

Steering Control Knuckle, RH

$

$

Not available

Cub Cadet 723-0619

Steering Control Knuckle, LH

$191.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-1189

Shock Absorber, 2.88 Stroke

Note: Used January 5, 2003 and prior

$

$

Not available

Cub Cadet 732-04069

Shock Absorber, 2.9 Stroke
(Superseded to 932-04069)

Note: Used January 6, 2003 and after

$301.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 750-1388

Tube, .875 x .50 x 4.75

$34.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04024

Hex Screw, M10-1.25 x 50mm

$

$

Not available

12

Cub Cadet 750-04014

Spacer, Shock

$

$

Not available

Cub Cadet 737-0168

Grease, Alvania, EP Lead-Free .5 oz. per pivot arm
(Superseded to 737-0168A)

$30.99

$

In Stock, only 1 left!

0
