4x2 Utility Vehicle

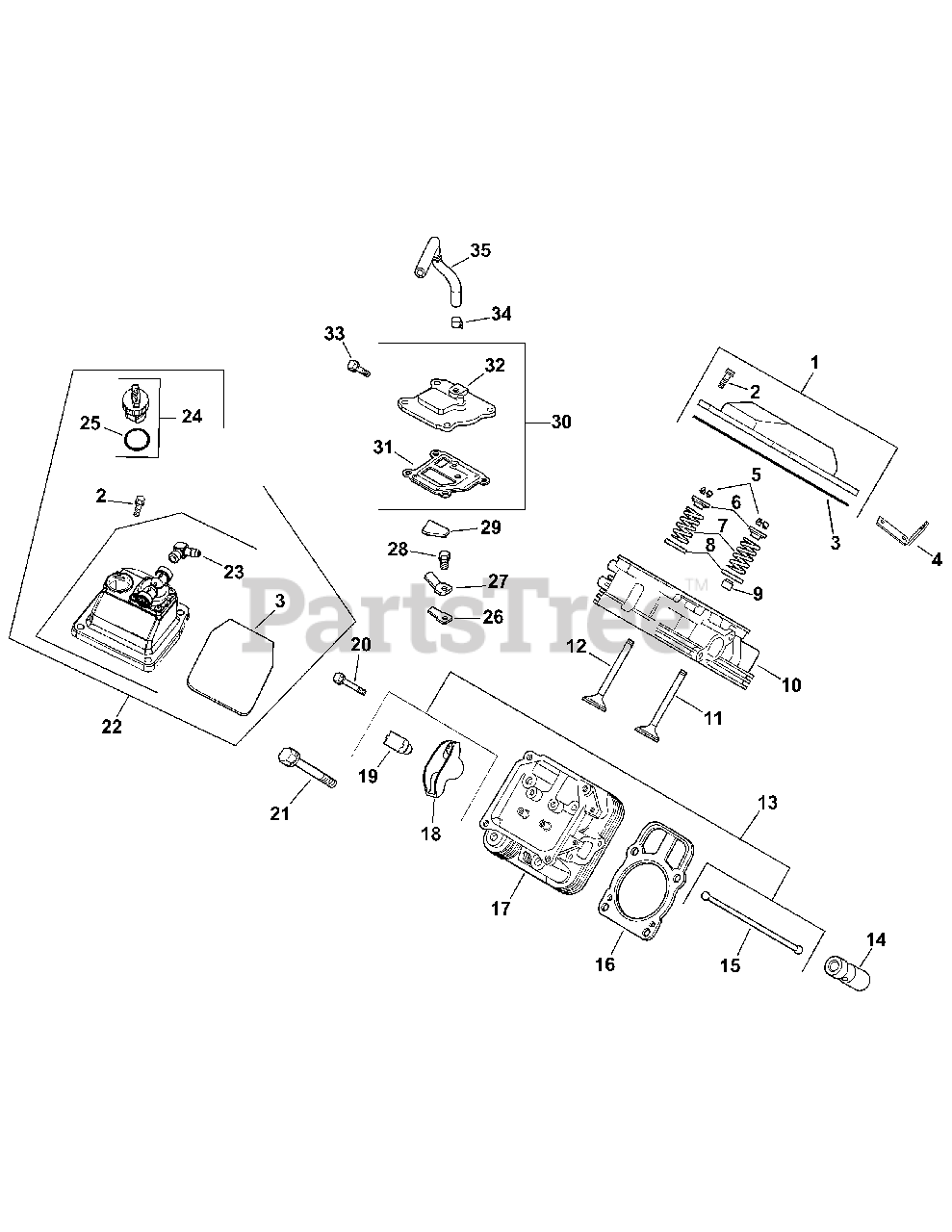

Engine - Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Kit, valve cover - plain (Includes 2,3)

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-651030-S

Screw, hex. flange M6x1.0x30 (4)
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-28-S

O-Ring, valve cover
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, Qty 7

0

4

Cub Cadet KH-24-445-01

Strap, lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, retainer (4)

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

Cap, valve spring (4)
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

Spring, valve (4)

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, spring (4)

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, valve stem (2)
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 8

0

10

Cub Cadet KH-24-318-68-S

Head assembly, #1 cylinder
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-017-01

Valve, intake (Std.) (2)

$

$

Not available

11

Cub Cadet KH-24-017-02

Valve, intake (.25) (2)

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, exhaust (Std.) (2)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet KH-24-016-02

Valve, exhaust (.25) (2)

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, valve train (Includes 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-01

Lifter, valve (4)
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-411-05

Rod, push (4)

$

$

Not available

16

Cub Cadet KH-24-841-01-S

Kit, cylinder head gasket (Includes head mounting hardware)

$45.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-318-71-S

Head assembly, #2 cylinder
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-186-01

Arm, rocker (4)

$

$

Not available

19

Cub Cadet KH-24-599-01

Pivot, rocker arm (4)
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-66-086-07-S

Screw, hex. flange M6x1.0x34 (4)
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

21

Cub Cadet KH-12-086-16

Screw, hex. flange M10x1.5x90 (8)
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

22

Cub Cadet KH-24-559-08-S

Kit, fuel pump valve (Includes 2,3,23-25)
(Superseded to KH-24-559-10-S)

$168.99

$

In Stock, Qty 13

0

23

Cub Cadet KH-25-294-11-S

Fitting, 90° (2)

$11.99

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-227-02-S

Cap assembly, oil fill (Includes 25)

$7.99

$

In Stock, Qty 6

0

25

Cub Cadet KH-24-153-09

O-Ring
(Superseded to KH-24-153-32-S)

$2.49

$

In Stock, only 4 left!

0

26

Cub Cadet KH-24-402-03

Reed, breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-66-018-04-S

Retainer, breather reed

$4.99

$

In Stock, Qty 6

0

28

Cub Cadet KH-M-545010

Screw, hex. flange M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available

29

Cub Cadet KH-24-050-01

Filter, breather
(Superseded to KH-24-050-11-S)

$2.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-24-033-01

Kit, breather (Includes 31,32)

$

$

Not available

31

Cub Cadet KH-24-041-51-S

Gasket, breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

32

Cub Cadet KH-24-096-86-S

Cover, breather
(Superseded to KH-24-033-01)

$

$

Not available

33

Cub Cadet KH-M-645020-S

Screw, hex. flange M6x1.0x20 (4)
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

34

Cub Cadet KH-25-237-14-S

Clamp, breather
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

35

Cub Cadet KH-24-326-26-S

Hose, breather
(Superseded to KH-24-326-89-S)

$9.99

$

In Stock, Qty 6

0

Cub Cadet KH-24-755-147-S

Kit, cylinder head hardware (Includes 5-9,11,12,15,18-20) (not shown)

$96.99

$

In Stock, only 3 left!

0
