Big Country 435A Sports Edition Green (37AB435A710) - Cub Cadet 4x2 Utility Vehicle Diff. Lock Shifter 1 Parts Diagram

4x2 Utility Vehicle

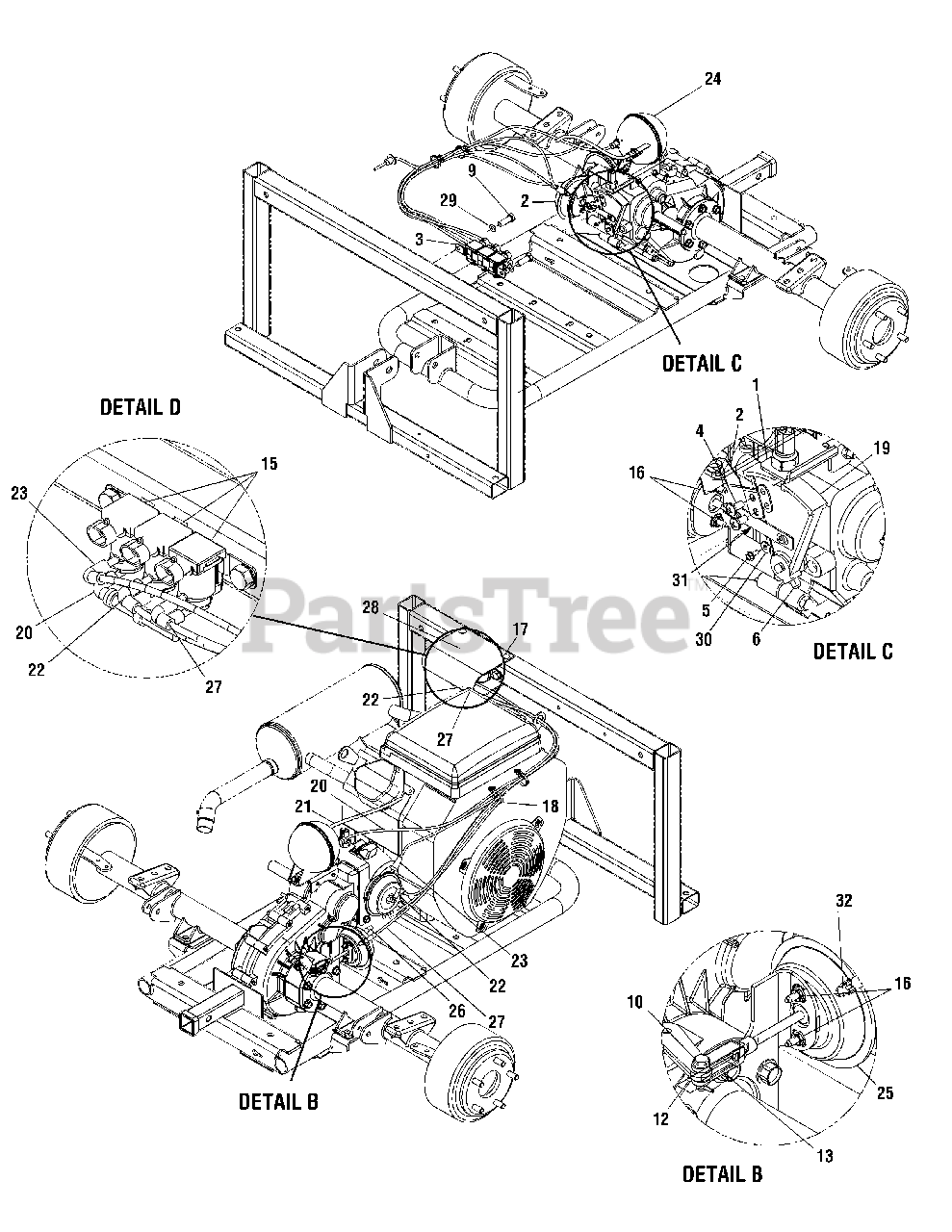

Diff. Lock Shifter 1 Parts Diagram

  • Title
1

Cub Cadet 707-04133

Mounting Bracket, Vacuum Actuator

$

$

Not available

2

Cub Cadet 707-04140

Bracket, Shift

$

$

Not available

3

Cub Cadet 707-04146

Bracket, Vac Relay

$

$

Not available

4

Cub Cadet 710-04030

Screw, 1/4-20 x.5

$

$

Not available

5

Cub Cadet 710-04164

Screw, Hex. #8 - 18 .375

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04169

Screw, Set, 5/16-24 x .50 LG

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0607

Screw, 5/16-18

$6.99

$

In Stock, Qty 9

0

8

Cub Cadet 710-0896

Screw, 1/4-14

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3008

Screw, 5/16-18 x .75 Hex

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-04142

Pin, Yoke 1/4

$

$

Not available

11

Cub Cadet 712-04048

Nut, Hex 9/16-18
(Superseded to 912-04048)

$

$

Not available

12

Cub Cadet 714-0127

Pin, Cotter 1/16x.750

$

$

Not available

13

Cub Cadet 719-04065

Yoke, 1/4-28
(Superseded to 919-04065)

$41.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-04049

Switch, Neutral
(Superseded to 925-04049)

$85.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 759-04258

Solenoid, Kit Vacuum Actuator

Note: Replaces 725-3278

$144.99

$

In Stock, only 2 left!

0

16

Cub Cadet 726-04024

Self Threading Nut

$3.99

$

In Stock, Qty 6

0

17

Cub Cadet 726-0465

Clip, Panel Retainer

$4.99

$

In Stock, Qty 16

0

18

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-04289

Arm, Shift

$

$

Not available

20

Cub Cadet 731-05230

Hose, Kohler

$

$

Not available

21

Cub Cadet 731-04296

Hose, Manifold Vacuum
(Superseded to 931-04296)

$

$

Not available

22

Cub Cadet 731-05217

Hose, Actuator Vacuum
(Superseded to 931-05217)

$

$

Not available

23

Cub Cadet 731-05214

Hose, Actuator Vacuum
(Superseded to 931-05214)

$

$

Not available

24

Cub Cadet 731-04310

Reservoir, Air
(Superseded to 931-04310)

$

$

Not available

25

Cub Cadet 731-04333

Actuator, Vac Differential Lock
(Superseded to 931-04333)

$

$

Not available

26

Cub Cadet 737-0296

Differential Lock Vent 3/8 dia.

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-05215

Hose, Vac Differential Lock Supply
(Superseded to 931-05215)

$

$

Not available

28

Cub Cadet 735-04034

Cover, Solenoid

$

$

Not available

29

Cub Cadet 736-0278

Flat Washer, .330 x .687 x .030

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-3067

Flat, Washer, .188 x .437 x .042

$3.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 751-0876

Actuator, Vacuum Shift

$

$

Not available

32

Cub Cadet 731-04778

Straight Fitting

$

$

Not available
