Big Country 431 Camo (37AR431D710) - Cub Cadet 4x2 Utility Vehicle Transmission Brake Assembly Parts Diagram

4x2 Utility Vehicle

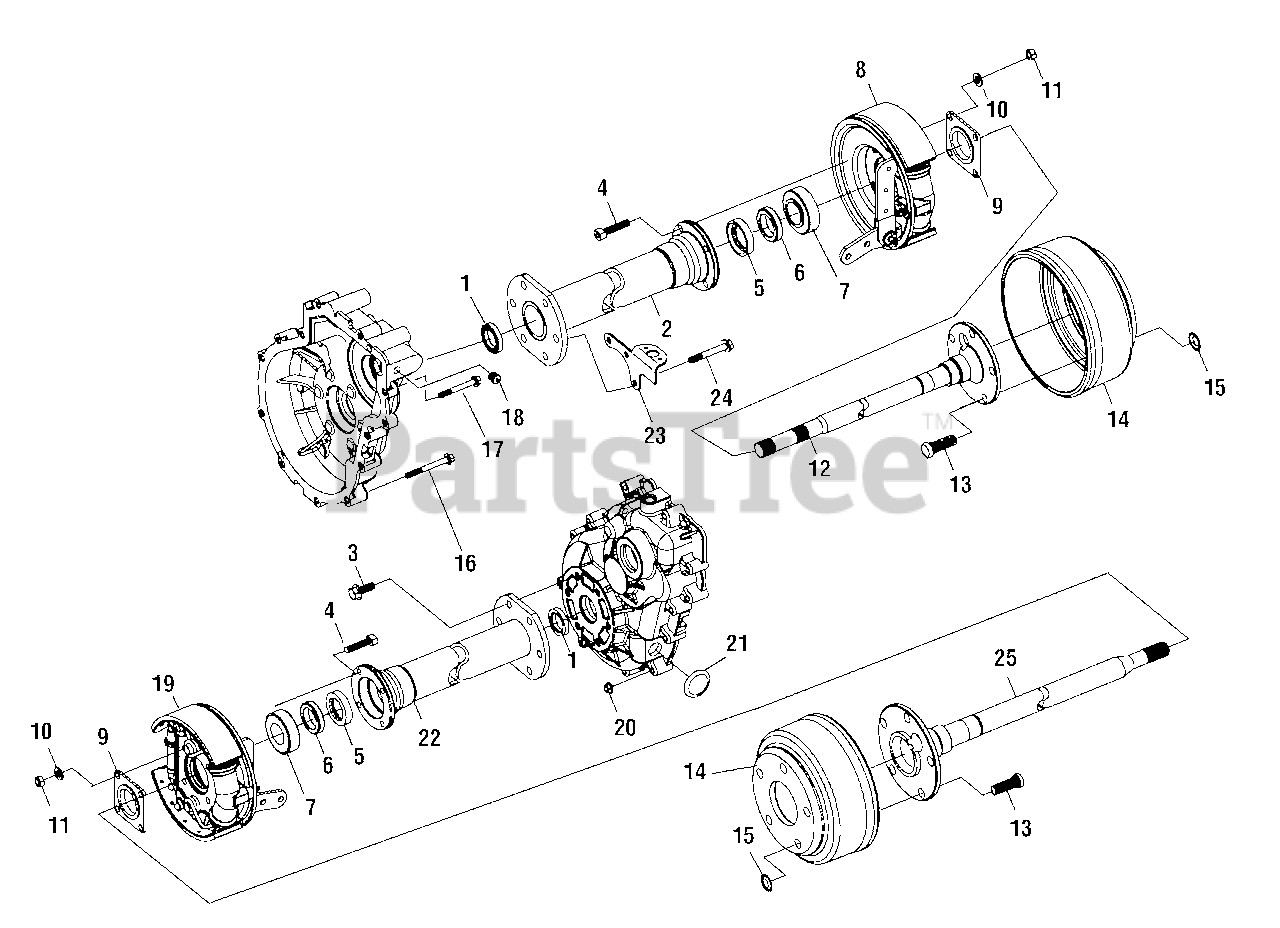

Transmission Brake Assembly Parts Diagram

  • Title
1

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet DC-012TA350-1

Assembly, Tube
(Superseded to DC-012TA359-2X)

$

$

Not available

3

Cub Cadet DC-070HM282

Screw, Flange Head

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet DC-A20HM102

Screw, Socket Head

$

$

Not available

5

$

$

Not available

6

Cub Cadet DC-536A1

Ring, Retainer

$

$

Not available

7

Cub Cadet DC-585907

Ass'y, Bearing, Tapered Roller

$91.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DC-018WD119

Assembly, Brake RH
(Superseded to DC-4170722)

$

$

Not available

8

Cub Cadet DC-4170693P

Brake Shoes (per axle)
(Superseded to DC-4171025P)

Note: Not shown

$

$

Not available

9

Cub Cadet DC-515A7

Seal, Oil

$

$

Not available

10

Cub Cadet DC-012HN126

Washer, Flat

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

Cub Cadet DC-012WA127

Drum, Brake

$68.99

$

Usually ships in 3-6 days

0

15

Cub Cadet DC-34391-2

Nut, Spring

$

$

Not available

16

Cub Cadet DC-012HM110-1

Screw, Flange Head

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet DC-012HM110-2

Screw, Flange Head

$

$

Not available

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet DC-018WD118

Assembly, Brake LH
(Superseded to DC-4170721)

$

$

Not available

19

Cub Cadet DC-4170693P

Brake Shoes (per axle)
(Superseded to DC-4171025P)

Note: Not shown

$

$

Not available

20

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet DC-41356

Plug, Rubber
(Superseded to DC-002HG101)

$15.99

$

Usually ships in 3-6 days

0

22

Cub Cadet DC-012TA349-1

Assembly, Tube
(Superseded to DC-012TA358-1X)

$

$

Not available

23

Cub Cadet DC-012TF238

Bracket, Differential Lock Actuator

$

$

Not available

24

Cub Cadet DC-012HM137

Screw, Flange Head

$3.49

$

Usually ships in 3-6 days

0

25

$

$

Not available
