Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Seats Parts Diagram

4x2 Utility Vehicle

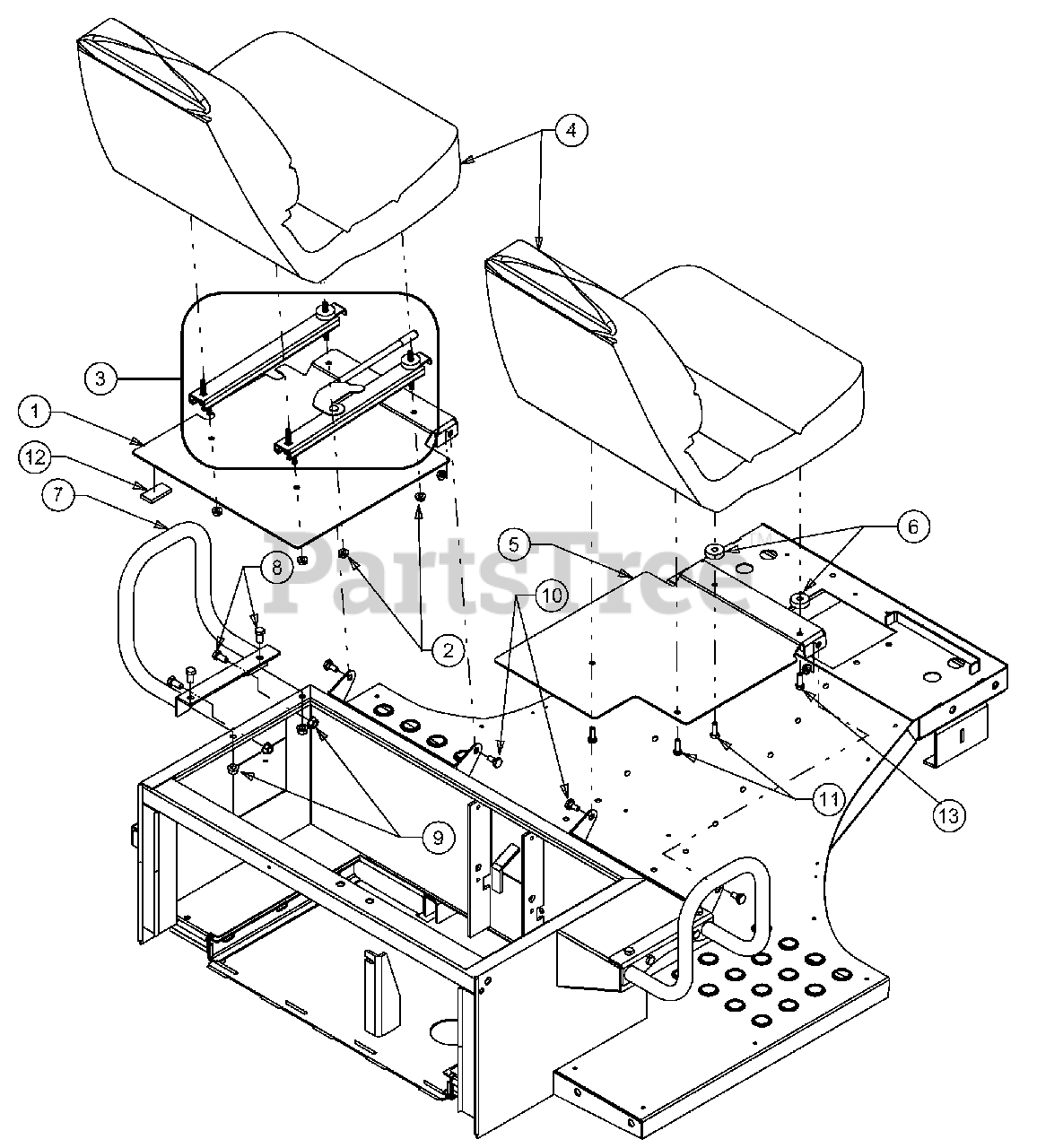

Seats Parts Diagram

  • Title

1

Cub Cadet 707-04061A

Plate, Seat, LH
(Superseded to 907-04061A)

$

$

Not available

2

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 757-0389

Track Assembly, Seat

$

$

Not available

4

Cub Cadet 757-04008

Seat
(Superseded to 757-04097)

$426.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04062A

Plate, Seat, RH
(Superseded to 907-04062A)

$

$

Not available

6

Cub Cadet 750-04023

Spacer, Seat

$

$

Not available

7

Cub Cadet 649-04002

Tube Assembly, Grab Handle
(Superseded to 649-04002-0637)

Variations

Cub Cadet 649-04002-0637

HANDLE-GRAB - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .75, Gr5

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 738-0140

Shoulder Screw, .435 x .178-5/16 x .56

$5.99

$

In Stock, Qty 15

0

11

Cub Cadet 710-3025

Hex Screw, 5/16-18 x .625, Gr5

$3.99

$

In Stock, Qty 8

0

12

Cub Cadet 735-0271

Bumper .62 Dia x .3
(Superseded to 735-0271A)

$8.99

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0376

Hex Screw 5/16-18 x 1.00 Gr 5

$3.99

$

In Stock, only 4 left!

0
