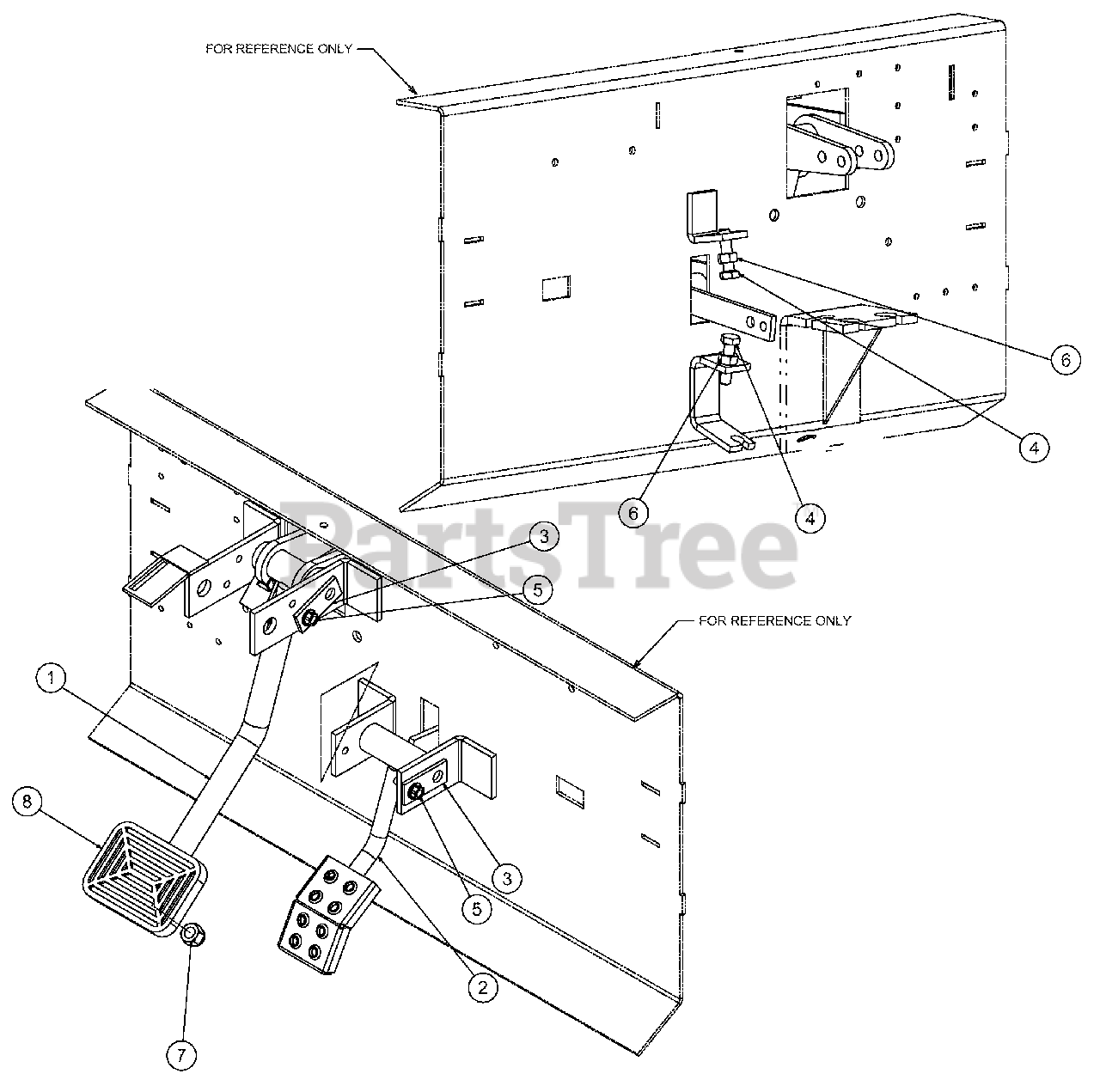

Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Pedals Parts Diagram

4x2 Utility Vehicle

Pedals Parts Diagram

  • Title
1

Cub Cadet 607-0038

Pedal Assembly, Brake

Variations

Cub Cadet 607-0038-0637

BRAKE PEDAL ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 607-0039

Pedal Assembly, Throttle
(Superseded to 759-04283)

$

$

Not available

3

Cub Cadet 611-0157

Shaft Assembly, Pedal Pivot

$

$

Not available

4

Cub Cadet 710-0528

Hex Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0875

Screw, Self-tapping, 1/4-20 x .75

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 712-3010

Nut, Hex Lock, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3061

Lock Nut, Nylon, 3/8-24

$6.99

$

In Stock, Qty 14

0

8

Cub Cadet 735-04000

Pad, Pedal Brake

$

$

Not available
