Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Fuel System Parts Diagram

4x2 Utility Vehicle

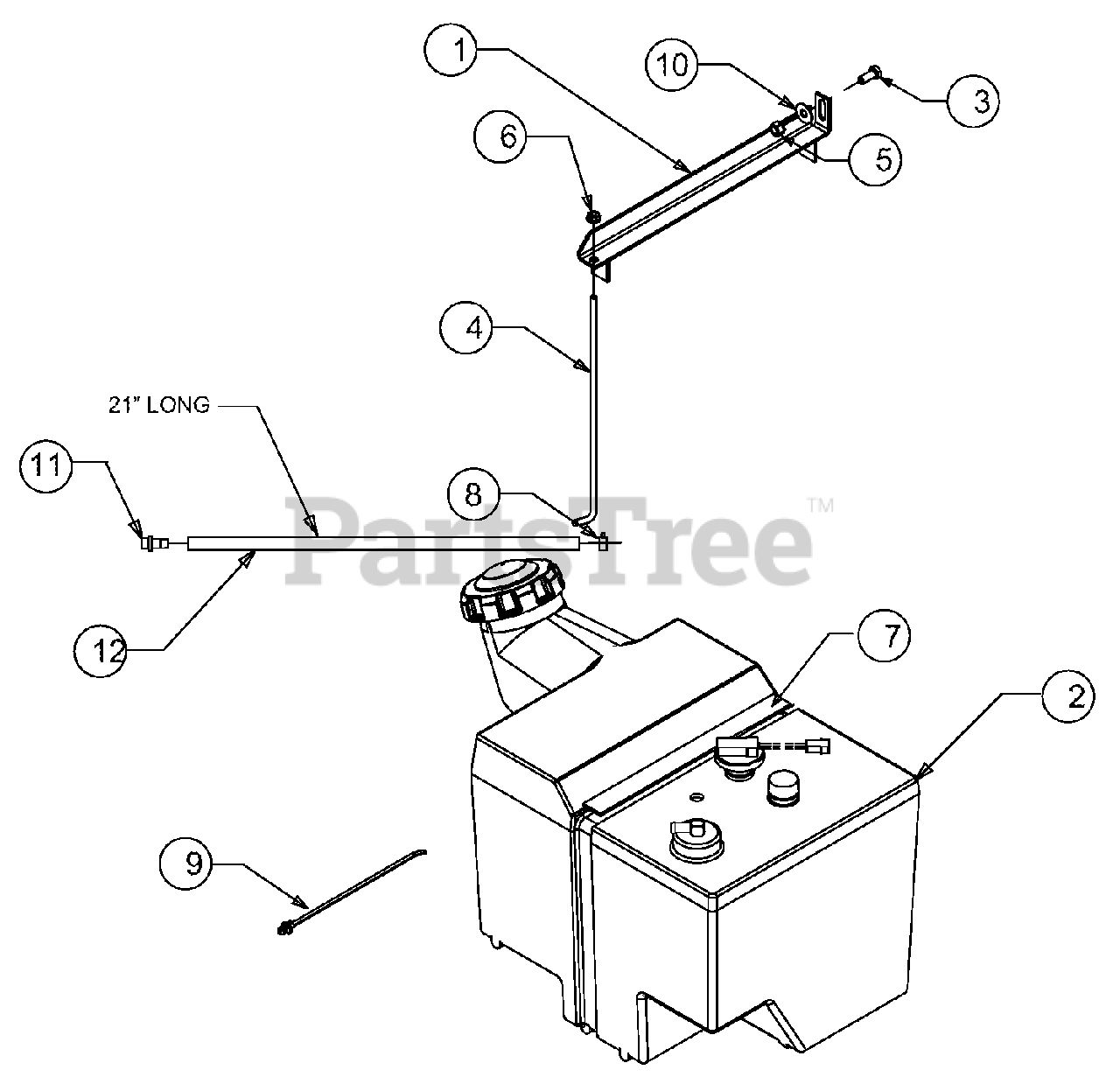

Fuel System Parts Diagram

  • Title

1

Cub Cadet 607-0034

Bracket Assembly, Fuel Tank

$

$

Not available

2

Cub Cadet 631-0223

Tank Assembly, Fuel

$

$

Not available

3

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1768

Hold-down Rod, Fuel Tank

$

$

Not available

5

Cub Cadet 712-0265

Sems Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

7

~N/A

Gasket, Fuel Tank

$

$

Not available

8

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0470

Cable Tie, 19 x 8.39

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 737-0296

Vent, 3/8 Dia.

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-0535-46

Hose, Fuel Line
(Superseded to 751-10349-54)

Note: Cut to length

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 16910-ZE8-015

Filter, Fuel

Note: Not Shown

$15.99

$

In Stock, only 3 left!

0
