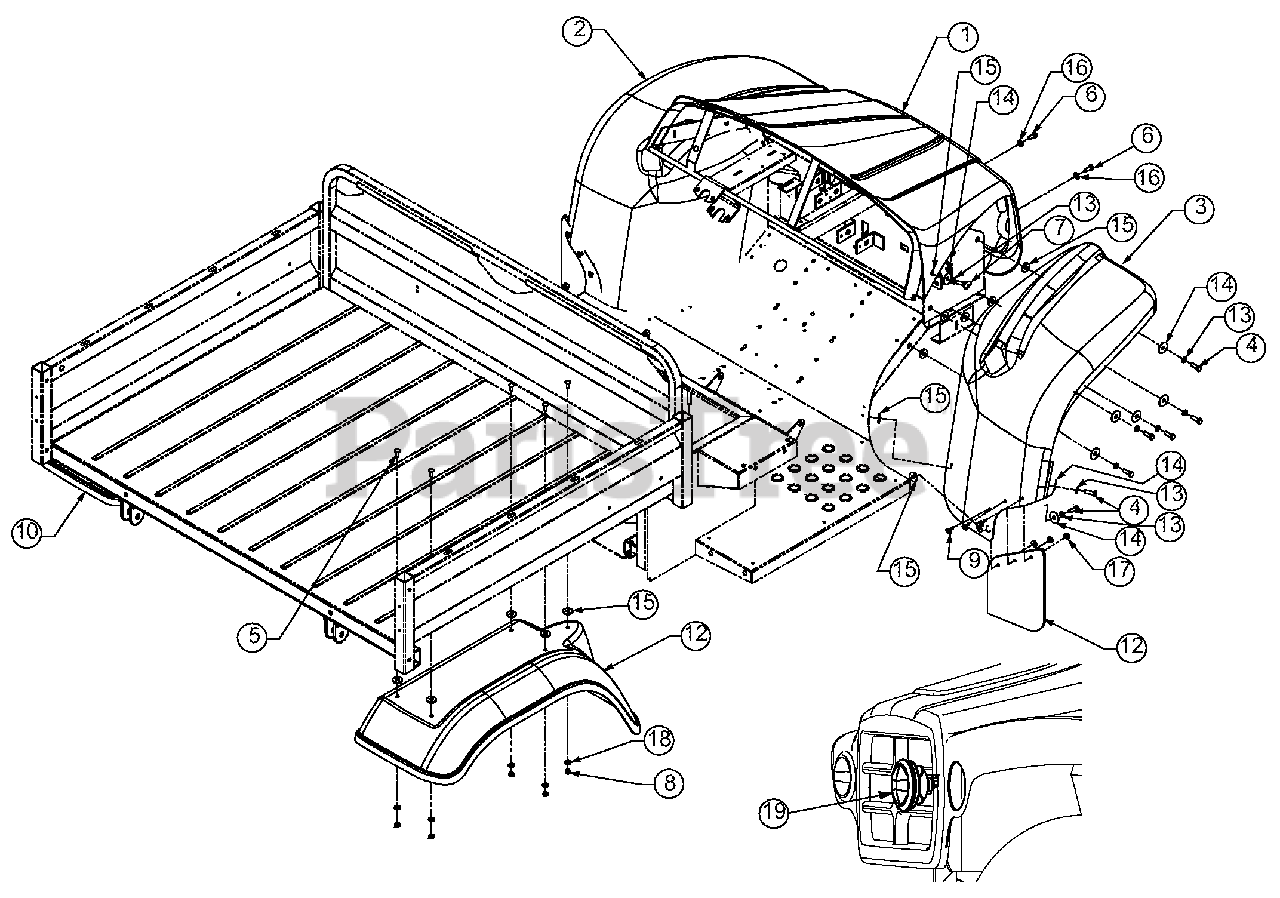

Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Fenders Dark Camo Parts Diagram

4x2 Utility Vehicle

Fenders Dark Camo Parts Diagram

  • Title

1

Cub Cadet 731-04524

Panel, Hood
(Superseded to 931-04524)

$

$

Not available

2

Cub Cadet 731-04517

Panel, Front Fender, LH
(Superseded to 931-04517)

$

$

Not available

3

Cub Cadet 731-04516

Panel, Front Fender, RH
(Superseded to 931-04516)

$

$

Not available

4

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75 Gr5

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-3232

Screw, Thumb 5/16-18

$9.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-0324

Hex Lock Nut, Nylon, 1/4-20

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 728-04004

Rivet, Pop
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-04521

Panel, Rear Fender, LH
(Superseded to 931-04521)

$

$

Not available

?11

Cub Cadet 731-04520

Panel, Rear Fender, RH
(Superseded to 931-04520)

$

$

Not available

12

Cub Cadet 735-04003

Flap, Mud

$48.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 9

0

14

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

15

Cub Cadet 736-04008

Washer, Rubber, .310 x 1.0 x .125

$

$

Not available

16

Cub Cadet 736-0275

Flat Washer, .44 x .688 x .65

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

18

Cub Cadet 736-3020

Flat Washer, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

19

Cub Cadet 625-04003

Headlight Assembly
(Superseded to 925-04017)

$

$

Not available

Cub Cadet 725-2022

Bulb

$39.99

$

Usually ships in 3-6 days

0
