Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Engine & Transmission Cradle Parts Diagram

4x2 Utility Vehicle

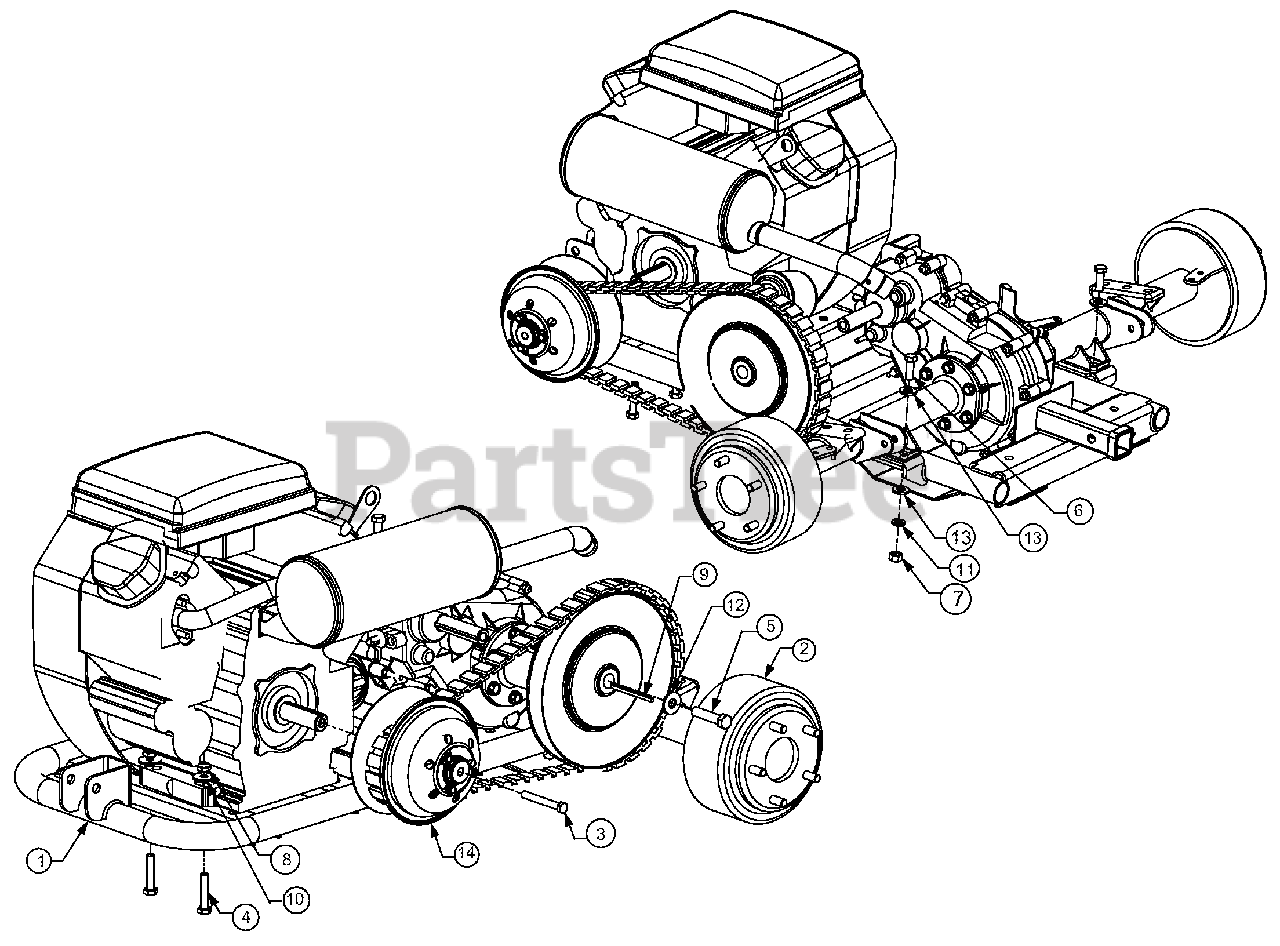

Engine & Transmission Cradle Parts Diagram

  • Title

1

Cub Cadet 607-04022

Engine/Trans. Cradle

$

$

Not available

2

Cub Cadet 918-04080A

Transmission Ass'y, Diff-Lock

$

$

Not available

2

Cub Cadet DC-4170693P

Brake Shoes (per axle)
(Superseded to DC-4171025P)

Note: Not shown

$

$

Not available

3

Cub Cadet 710-04019

Hex Screw,3/8-24 x 3.00

$

$

Not available

4

Cub Cadet 710-04024

Hex Screw, M10-1.25

$

$

Not available

5

Cub Cadet 710-04167

Hex Screw, 1/2-20 x 2.25

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3029

Hex Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 712-0378

Nut, Hex 7/16-20

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04006

Nut, Nylon Lock, M10-1.25

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-04030

Key, Square 1875 x 3.25

$

$

Not available

10

Cub Cadet 736-0133

Washer, Flat, .510 x 1.00 x .125

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet 736-0171

Washer, Lock 7/16

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 736-04019

Washer, Flat, .531ID x 1.25 OD x .181

$7.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-0326

Washer, Flat, .510 x 1.00 x .125

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 618-04062

Clutch Assembly, Engine
(Superseded to 302647C)

$848.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-04063

Clutch Assembly, Transmission

Note: Not shown

$

$

Not available

Cub Cadet 754-04018

V-Belt, Cogged
(Superseded to 954-04018A)

Note: Not shown

$78.99

$

In Stock, only 3 left!

0

Cub Cadet 737-04040

Transmission Oil (Approx. 22 oz.)
(Superseded to 490-000-V045)

Note: Not shown, Also use 737-04158 Cub Cadet Gear Oil

$19.99

$

In Stock, only 2 left!

0
