Big Country 431 Camo (37AR431D100) - Cub Cadet 4x2 Utility Vehicle Chassis Parts Diagram

4x2 Utility Vehicle

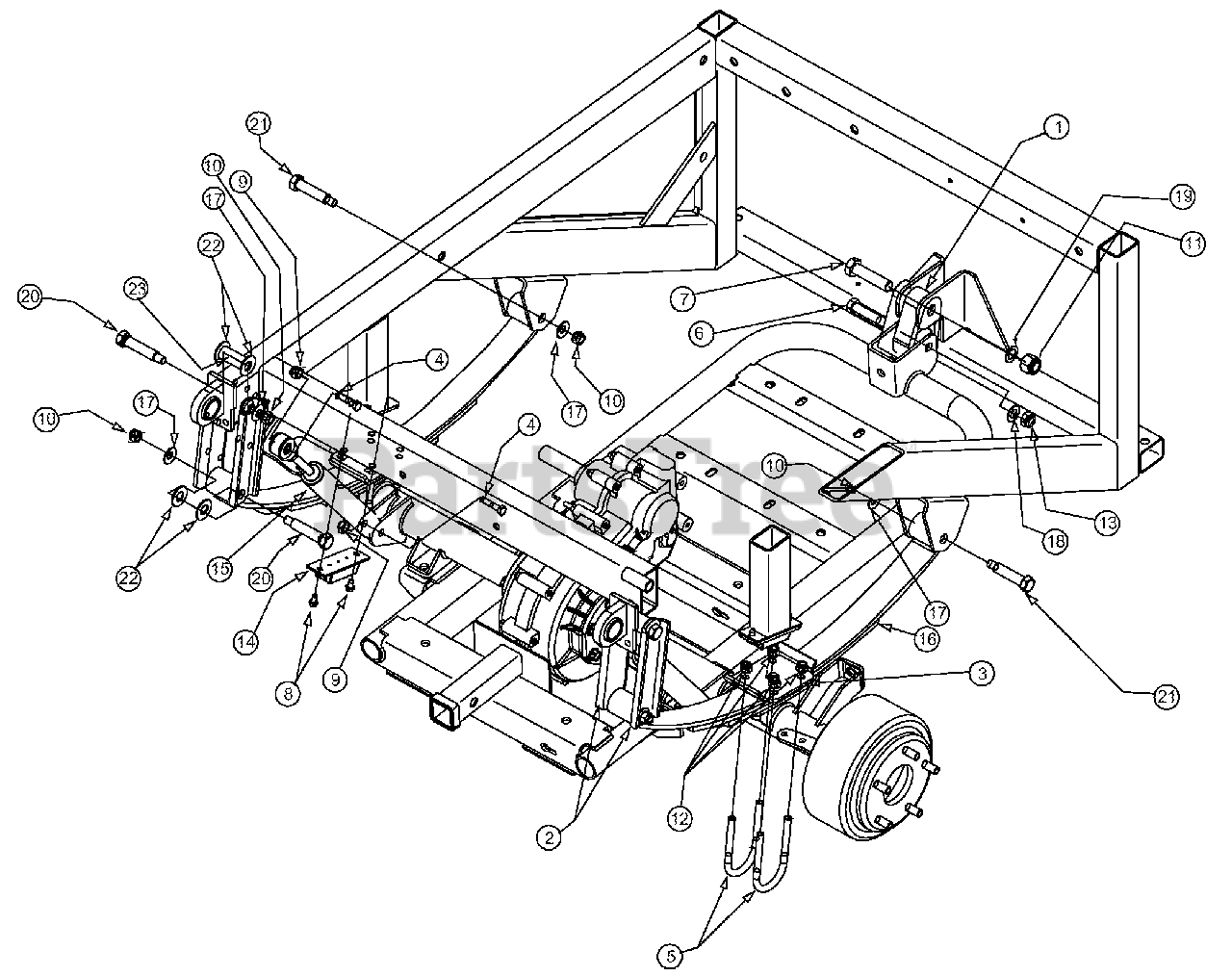

Chassis Parts Diagram

  • Title

1

Cub Cadet 607-04025

Link Assembly

$

$

Not available

2

Cub Cadet 707-04119

Plate, Shackle

$

$

Not available

3

Cub Cadet 707-04120A

Bracket, Spring Leaf

$

$

Not available

4

Cub Cadet 710-04024

Hex Screw, M!)-1.25

$

$

Not available

5

Cub Cadet 710-04119

U-Bolt 3/8-16

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04128

Hex Screw, M12-1.75

$

$

Not available

7

Cub Cadet 710-04129

Hex Screw, 5/8-11 x 2.5

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

Screw, Self Tapping 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04006

Locknut, M10 x 1.25

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04049

Hexlock Nut
(Superseded to 712-0459)

$4.99

$

In Stock, Qty 17

0

11

Cub Cadet 712-3016

Hexlock Nut, 5/8 - 11

$6.99

$

In Stock, Qty 13

0

12

Cub Cadet 712-0130

Hexlock Nut, 3/8-16

$3.99

$

In Stock, Qty 13

0

13

Cub Cadet 712-3103

Hexlock Nut, M12 x 1.75

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 731-04016

Bumper, Suspension

$45.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-04043

Shock Absorber, 2.50 Stroke
(Superseded to 932-04043)

$195.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-04055

Spring, Leaf 4 x 2
(Superseded to 932-04055)

$

$

Not available

17

Cub Cadet 736-0407

Bell Washer, .45 x 1.00 x .062

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0272

Flat Washer, .510 x 1.00 x .060

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0494

Flat Washer, .632 x 1.00 x .035

$4.99

$

In Stock, only 4 left!

0

20

Cub Cadet 738-04035

Shoulder Screw, .550 x 2.290
(Superseded to 938-04035)

$

$

Not available

21

Cub Cadet 738-04042

Shoulder Screw, .550 x 2.13

$

$

Not available

22

Cub Cadet 741-0405

Bearing, .56 ID x 1.25 OD x .06
(Superseded to 941-0405)

$

$

Not available

23

Cub Cadet 750-04137

Bushing, .75 OD x .562 ID x 1.75 LG

$

$

Not available
