4x2 Utility Vehicle

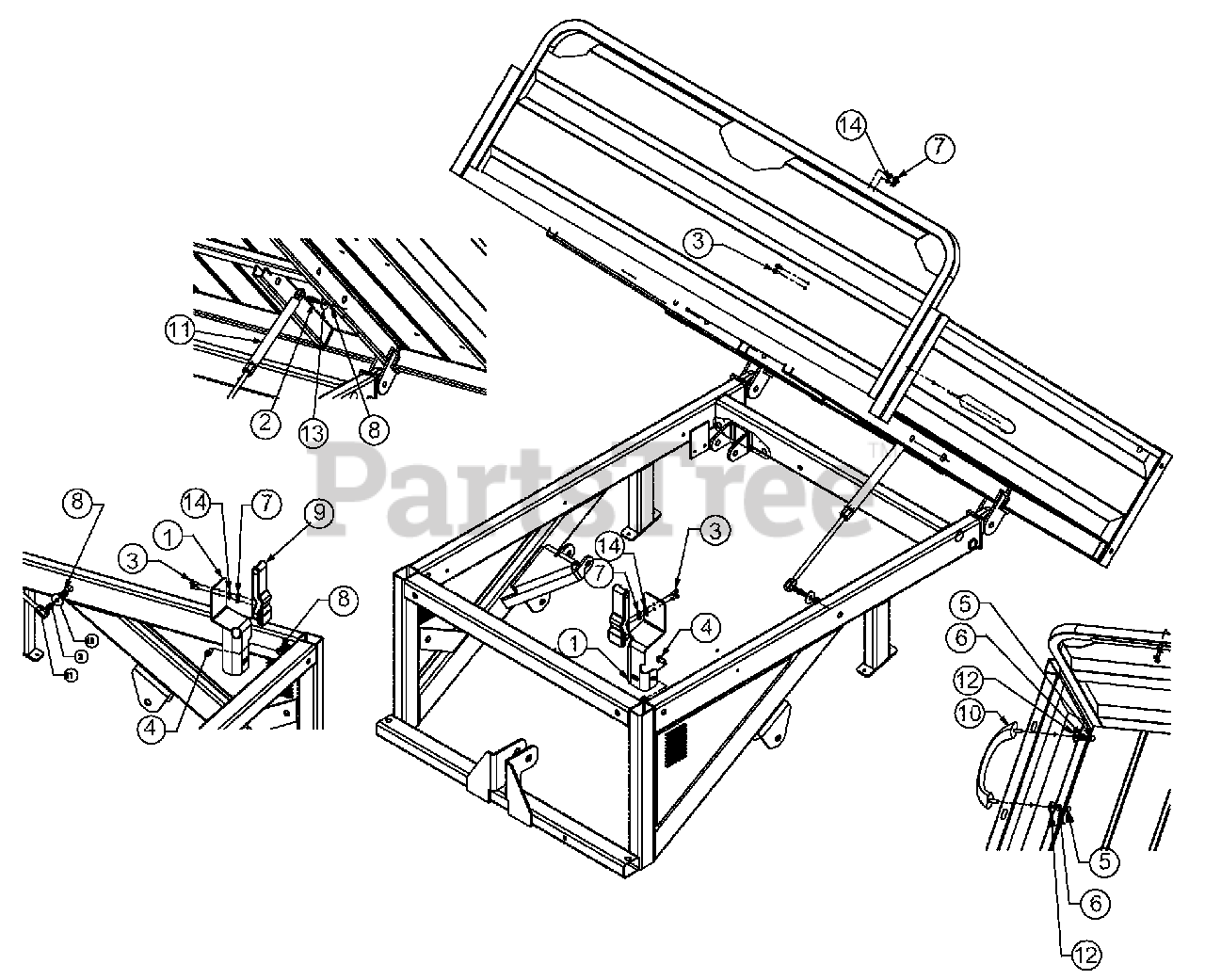

Bed Lift Parts Diagram

  • Title

1

Cub Cadet 707-04060

Bracket, Bed Latch Base

$

$

Not available

2

Cub Cadet 710-04166

Stud, Ball 5/16-18

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0899A

Screw, Hex Sems, #10-32 x .62, Gr5

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3025

Hex Screw, 5/16-18 x .625, Gr5

$3.99

$

In Stock, Qty 8

0

5

Cub Cadet 712-0264

Nut, Acorn 1/4-20 w/o Lock

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0324

Nut, Hexlock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-0349

Hex Nut, 10-32

$4.99

$

In Stock, Qty 5

0

8

Cub Cadet 712-0703A

Nut, Insert 5/16-18

$7.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 726-04005

Latch

$

$

Not available

10

Cub Cadet 731-04174

Handle, Bag w/Screw

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-04109

Spring, Gas .91 Stroke
(Superseded to 932-04109B)

$87.99

$

In Stock, only 4 left!

0

12

Cub Cadet 736-0176

Washer, Flat .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-0231

Washer, Flat .34 ID X1.125 OD x .12

$

$

Currently unavailable

14

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0
