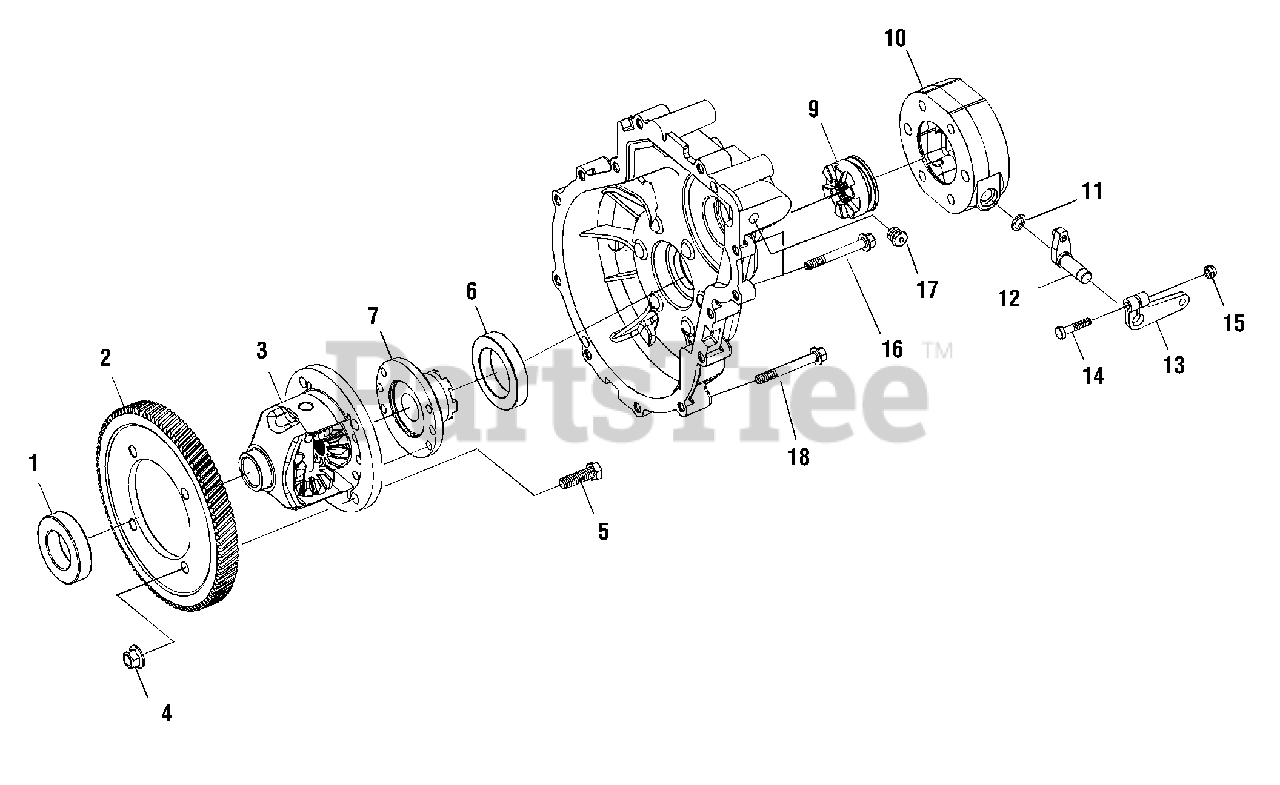

Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Transmission Differential Lock Assembly Parts Diagram

4x2 Utility Vehicle

Transmission Differential Lock Assembly Parts Diagram

  • Title

1

Cub Cadet DC-585994

Bearing, Ball

$19.99

$

Usually ships in 3-6 days

0

2

Cub Cadet DC-012GS216

Gear, Helical (Ring)

$231.99

$

Usually ships in 3-6 days

0

3

Cub Cadet DC-012KD129

Assembly, Differential

$

$

Not available

4

Cub Cadet DC-012HN138

Nut, Lock

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet DC-012HM128

Bolt, Hex

$

$

Not available

6

Cub Cadet DC-012HD142

Bearing, Ball

$77.99

$

Usually ships in 3-6 days

0

7

Cub Cadet DC-012DC123

Flange, Half, Differential

$206.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DC-012HM136

Screw, Socket Head

$

$

Not available

9

Cub Cadet DC-026HS104

Gear, Clutch Differential Lock

$

$

Not available

10

Cub Cadet DC-012CH319

Housing, Differential Lock

$

$

Not available

11

Cub Cadet DC-3112

Seal Oil

$

$

Not available

12

Cub Cadet DC-012SV117X

Assembly, Shift Shaft

$

$

Not available

13

Cub Cadet DC-314004

Lever, Actuating

$

$

Not available

14

Cub Cadet DC-4150221

Screw, Hex Head

$

$

Not available

15

Cub Cadet DC-4150223

Nut, Lock

$

$

Not available

16

Cub Cadet DC-012HM110-2

Screw, Flange Head

$

$

Not available

17

Cub Cadet DC-012HN140

Vent

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet DC-012HM110-1

Screw, Flange Head

$4.99

$

Usually ships in 3-6 days

0
