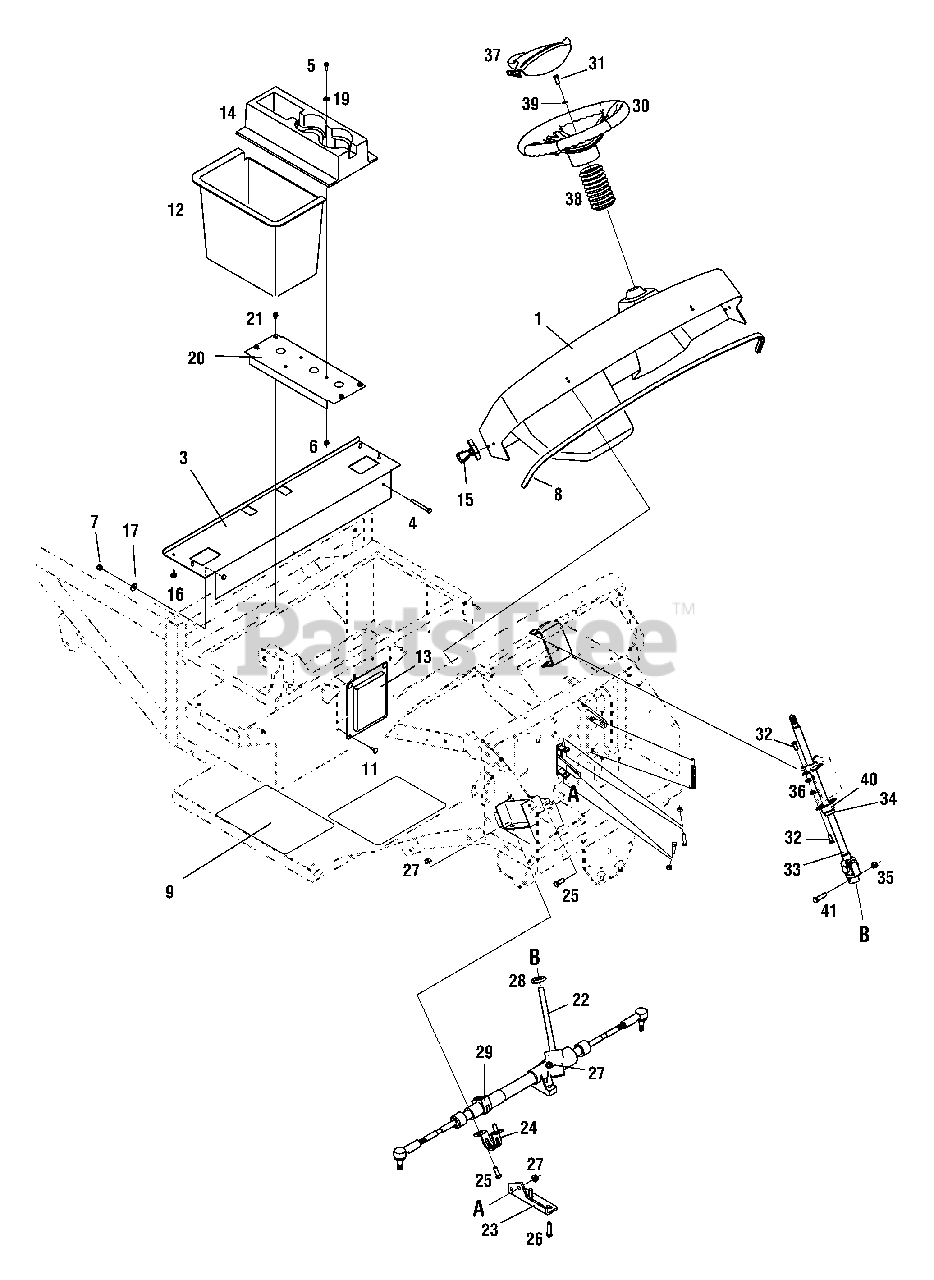

Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Steering SN 1A107B & before Parts Diagram

4x2 Utility Vehicle

Steering SN 1A107B & before Parts Diagram

  • Title

2

Cub Cadet 707-04252

Hood Mounting Plate

$

$

Not available

3

Cub Cadet 707-04337

Cover, Bed-to-Seat

Variations

Cub Cadet 707-04337-0637

COVER-BED TO SEAT POWDER - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Hex Lock Nut, Nylon, 1/4-20

$3.99

$

In Stock, Qty 17

0

7

Cub Cadet 712-0429

Hex Lock Nut, Nylon, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 721-04070A

Trim, Bulb Seal, 1/4
(Superseded to 721-04070A-46)

$

$

Not available

9

Cub Cadet 723-3069

Foot Pad, Abrasive
(Superseded to 00023817)

$

$

Not available

10

Cub Cadet 728-0173

Rivet, Pop, .187
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 728-04004

Rivet, Pop, .188
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-04033A

Container, Bulkhead
(Superseded to 931-04033A)

$

$

Not available

13

Cub Cadet 731-04225

Panel, Shift Cover
(Superseded to 931-04225)

$

$

Not available

14

Cub Cadet 731-2648

Console, Cup Holder

$

$

Not available

15

Cub Cadet 735-04038

Handle, Latch
(Superseded to 935-04038)

$15.99

$

In Stock, Qty 14

0

16

Cub Cadet 735-0199A

Bumper, Rubber

$7.99

$

In Stock, only 4 left!

0

17

Cub Cadet 736-0159

Washer, Flat, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

19

Cub Cadet 736-0356

Washer, Flat, .39 x 1.38 x .062
(Superseded to 936-0356)

$

$

Not available

20

Cub Cadet 707-04386

Plate, Console Support
(Superseded to 707-04386-0637)

Variations

Cub Cadet 707-04386-0637

PLATE-CONSOL SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 617-0075A

Gear Assembly, Steering
(Superseded to 917-0075A)

$

$

Not available

23

Cub Cadet 707-04074

Steering Bracket, Sector Clamp

Variations

Cub Cadet 707-04074-0637

BRACKET-STEERING ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 707-0417

Bracket, Steering Mounting

$

$

Not available

25

Cub Cadet 710-3094A

Hex Screw, 3/8-16, 1.00, Gr8

$4.49

$

In Stock, only 1 left!

0

26

Cub Cadet 710-04321

Hex Screw, 3/8-16, 1.50, Gr5

$

$

Not available

27

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 735-0801

Grommet, Steering Shaft

$

$

Not available

29

Cub Cadet 741-0763

Bushing, Rubber

$

$

Not available

30

Cub Cadet 631-04008

Wheel, Steering
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

31

Cub Cadet 710-1880

Hex Screw, 5/16-18, .75, Gr5, Patch

$4.99

$

In Stock, Qty 11

0

32

Cub Cadet 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 711-04231

Shaft, Steering, 5/8 Spline

$

$

Not available

34

Cub Cadet 711-1774

Collar, .75

$

$

Not available

35

Cub Cadet 712-0130

Nut, Hex Lock Nylon, 3/8-16

$3.99

$

In Stock, Qty 13

0

36

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-04532

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

38

Cub Cadet 731-0954

Bellow, Steering, 4.75 Lg
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

Washer, Flat, .344 x .688 x .065

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-04000

Bearing, Flange, .75 ID, Self-Aligning

$

$

Not available

41

Cub Cadet 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0
