Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Pedals And Dash SN 1A107B & after Parts Diagram

4x2 Utility Vehicle

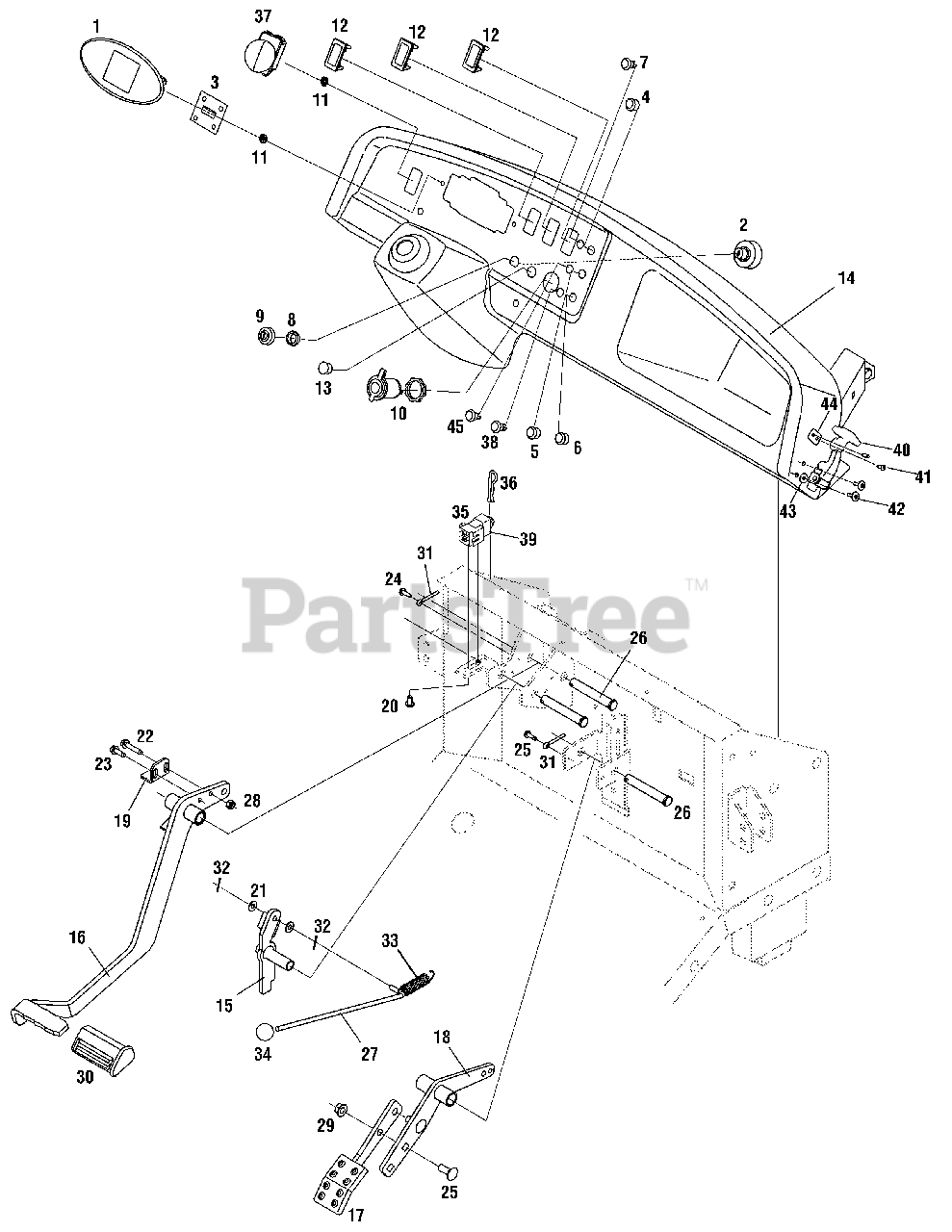

Pedals And Dash SN 1A107B & after Parts Diagram

  • Title

1

Cub Cadet 731-04755

Instrument Cover

$

$

Not available

2

Cub Cadet 725-3284A

Switch, Key
(Superseded to 925-3284A)

$64.99

$

In Stock, Qty 9

0

3

Cub Cadet 725-04022B

Meter, Hour
(Superseded to 925-04022B)

$146.99

$

In Stock, only 1 left!

0

4

Cub Cadet 725-04060

Switch, Green
(Superseded to 925-04060)

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 725-04061

Switch, Yellow
(Superseded to 925-04061)

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-04062

Switch, Red
(Superseded to 925-04062)

$69.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-04287

Light, Ind., Green
(Superseded to 925-04287)

$

$

Not available

8

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

9

Cub Cadet 731-1347

Cap, Ignition Switch

$

$

Not available

10

Cub Cadet 725-2003

Power Receptacle, 12V

$42.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0293

Nut, Retainer, 1/8

$

$

Not available

12

Cub Cadet 731-04010

Panel, Plug, Switch

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-04023

Plug, Horn Switch

$

$

Not available

14

Cub Cadet 731-04994

Dash Panel

$

$

Not available

15

Cub Cadet 607-04044

Lever , Parking Brake

$

$

Not available

16

Cub Cadet 607-04076

Pedal Assembly, Brake

$

$

Not available

17

Cub Cadet 607-04082

Pedal Assembly, Throttle

$111.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 607-04083

Pedal Arm Assembly, Throttle

$135.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 707-04206

Plate, Brake Switch

$

$

Not available

20

Cub Cadet 710-04030

Screw, Hi-Lo, 1/4-20 x .5

$

$

Not available

21

Cub Cadet 736-0463

Washer, Flat .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0809

Screw, Self-Tapping, 1/4-20x1.25

$6.99

$

In Stock, Qty 19

0

23

Cub Cadet 710-0875

Screw, Self-tapping, 1/4-20, .75

$3.99

$

In Stock, only 2 left!

0

24

Cub Cadet 710-1237

Screw, Self-tapp, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 12

0

26

Cub Cadet 711-04067

Pin, Clevis .50 x 3.25
(Superseded to 911-04067)

$6.49

$

In Stock, only 1 left!

0

27

Cub Cadet 711-1765

Rod, Brake Lock

$

$

Not available

28

Cub Cadet 712-0324

Nut, Hexlock, 1/4-20 GR 8

$3.99

$

In Stock, Qty 17

0

29

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 735-3049A

Pad, Brake Pedal

$12.99

$

In Stock, only 1 left!

0

31

Cub Cadet 714-0121

Pin, Cotter, 5/32 x 1.0 Lg.
(Superseded to 914-0121)

$

$

Not available

32

Cub Cadet 714-0127

Pin, Cotter, 1/16

$

$

Not available

33

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

34

Cub Cadet 720-04001

Knob, Ball

$

$

Not available

35

Cub Cadet 725-1657A

Snap Mount Switch, Interlock
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

36

Cub Cadet 714-0101

Pin, Cotter.08 x 1.42

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 725-04255

Differential Lock Switch

$

$

Not available

38

Cub Cadet 725-04288

Light, Ind., Yellow
(Superseded to 925-04288)

$71.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 721-3049

Cvr., Protective

$

$

Not available

40

Cub Cadet 735-04038

Hndl, Latch
(Superseded to 935-04038)

$15.99

$

In Stock, Qty 14

0

41

Cub Cadet 728-0123

Rivet, Pop, 3/16 Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 728-04004

Rivet, Pop, .188 Dia.
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

43

Cub Cadet 736-0400

Wash., Fl, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

44

Cub Cadet 707-04252

Plt., Mnt., Hood

$

$

Not available

45

Cub Cadet 725-04285

Light, Ind., Red
(Superseded to 925-04285)

$71.99

$

Usually ships in 3-6 days

0
