Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Front End SN 1A107B & after Parts Diagram

4x2 Utility Vehicle

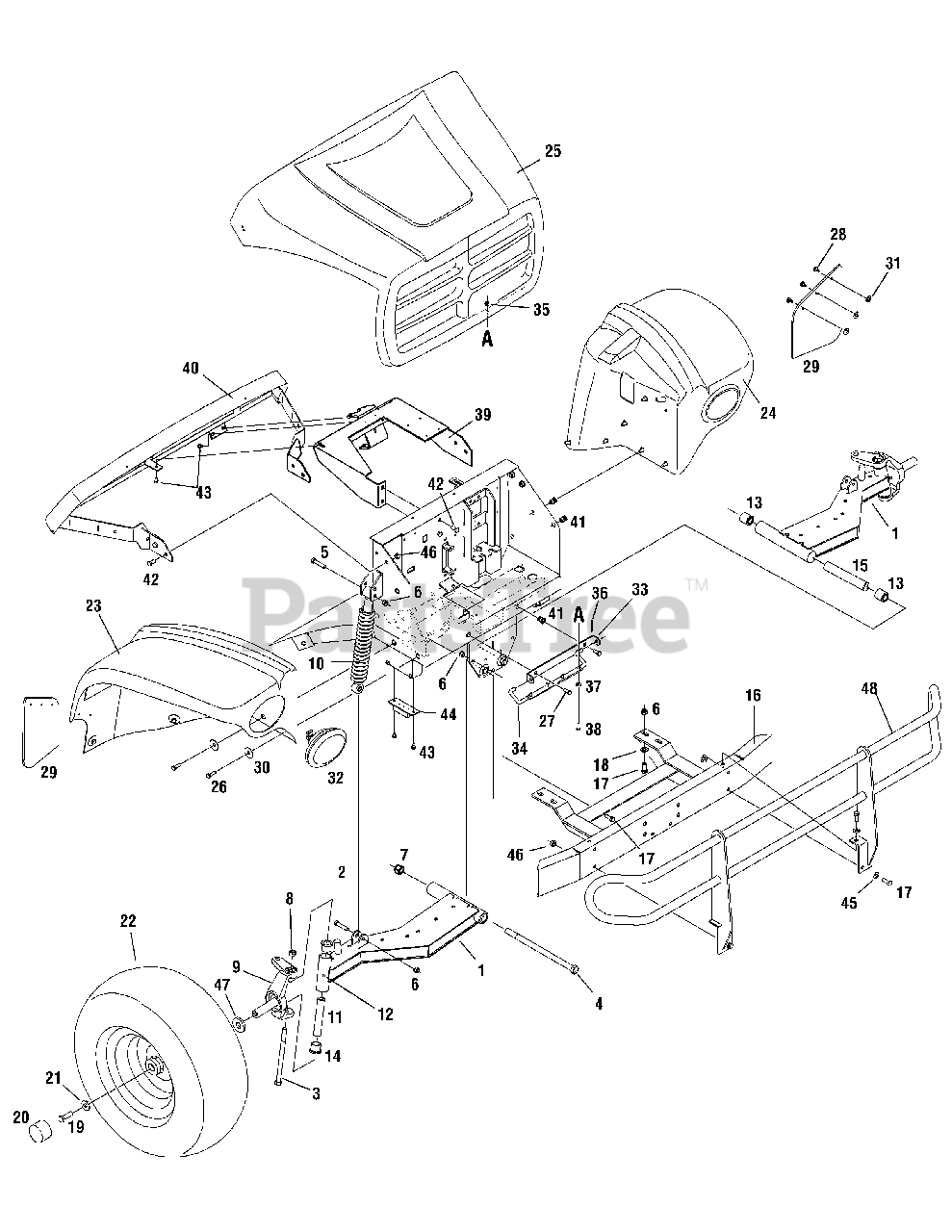

Front End SN 1A107B & after Parts Diagram

  • Title

1

Cub Cadet 607-04004

Axle Assembly, Right-front

Note: (Incl. Ref 12 - 15)

$

$

Not available

1

Cub Cadet 607-04005

Axle Assembly, Left-front

Note: (Incl. Ref 12 - 15)

$

$

Not available

2

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04012

Hex Screw, 1/2-13 x 7.0, Gr5

$16.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04120

Hex Screw, 5/8-11 x 11.13, Gr5

$

$

Not available

5

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0130

Nut, Hex Lock, Nylon, 3/8-16, Gr5

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 712-3016

Nut, Hex Lock, Nylon, 5/8-11, Gr5

$6.99

$

In Stock, Qty 13

0

8

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 19

0

9

Cub Cadet 607-04106

Steering Control Knuckle, RH
(Superseded to 607-04106-0637)

Variations

Cub Cadet 607-04106-0637

BLACK KNUCKLESTEERING - POWDER BLACK (0637)

$176.99

$

Usually ships in 3-6 days

0

$176.99

$

Usually ships in 3-6 days

0

—

Cub Cadet 607-04105

Steering Control Knuckle, LH

$

$

Not available

10

Cub Cadet 732-04176

Shock Absorber, 2.9 Stroke

$

$

Not available

11

Cub Cadet 750-1388

Tube, .875 x .50 x 4.75

$34.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 737-04006

Grease Fitting

$

$

Not available

13

Cub Cadet 741-0758

Bearing, .63 ID x 1.19 OD

$56.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 741-0762

Bushing, Steering

$

$

Not available

15

Cub Cadet 750-1357

Spacer, .645 ID x 1.063 OD

$

$

Not available

16

Cub Cadet 607-0037

Front Bumper Assembly

Variations

Cub Cadet 607-0037-0637

FRONT BUMPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-04186

Hex Screw, 1/2-13 x 1.25, Gr5

$7.49

$

In Stock, only 1 left!

0

20

Cub Cadet 731-04029

Dust Cap

$

$

Not available

21

Cub Cadet 736-04019

Flat Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

22

Cub Cadet 634-04039

RH Wheel Assembly, 22 x 11 x 10
(Superseded to 934-04039)

$318.99

$

In Stock, only 1 left!

0

22

Cub Cadet 634-04040

LH Wheel Assembly, 22 x 11 x 10
(Superseded to 934-04040)

$323.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-04516

Panel Ass’y, Right Fender, Camo
(Superseded to 931-04516)

$

$

Not available

24

Cub Cadet 731-04517

Panel Ass’y, Left Fender, Camo
(Superseded to 931-04517)

$

$

Not available

25

Cub Cadet 731-04748

Panel Ass’y, Hood, Camo
(Superseded to 931-04748)

$

$

Not available

26

Cub Cadet 710-0376

Hex Screw 5/16-18 x 1.00 Gr 5

$3.99

$

In Stock, only 4 left!

0

27

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 728-04004

Rivet, Pop
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

29

Cub Cadet 735-04046

Mud Flap

$

$

Not available

30

Cub Cadet 736-0356

Washer, Bell, .39 x 1.38 x .062
(Superseded to 936-0356)

$

$

Not available

31

Cub Cadet 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

32

Cub Cadet 625-04017

Headlamp Assembly
(Superseded to 925-04017)

$

$

Not available

33

Cub Cadet 707-04165

Bracket, Hood Mounting
(Superseded to 707-04165-0637)

Variations

Cub Cadet 707-04165-0637

BRACKET-HOOD MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 711-04139

Rod, Hood Mounting

$

$

Not available

35

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 17

0

36

Cub Cadet 714-0101

Cotter Pin, Internal, 1.42

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 736-3020

Washer, Flat, .271 x .63 x .065

$6.99

$

In Stock, Qty 9

0

38

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 607-04062

Dash Support Frame Assembly

Variations

Cub Cadet 607-04062-0637

DASH SUPPORT ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 607-04065

Upper Dash Frame Assembly
(Superseded to 607-04065-0637)

Variations

Cub Cadet 607-04065-0637

FRAME-UPPER DASH - POWDER BLACK (0637)

$274.99

$

In Stock, only 1 left!

0

$274.99

$

In Stock, only 1 left!

0

41

Cub Cadet 712-0703A

Insert Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

43

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 731-04016

Suspension Bumper

$45.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-3050

Washer, Flat, .406 x .812 x .051

$4.49

$

In Stock, Qty 16

0

46

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0259

Washer, Flat, 1.030 x 1.625 x .090
(Superseded to 936-0259)

$

$

Not available

48

Brush Guard

Note: contact sales department

$

$

Not available
