Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Engine - Ignition Electrical Parts Diagram

4x2 Utility Vehicle

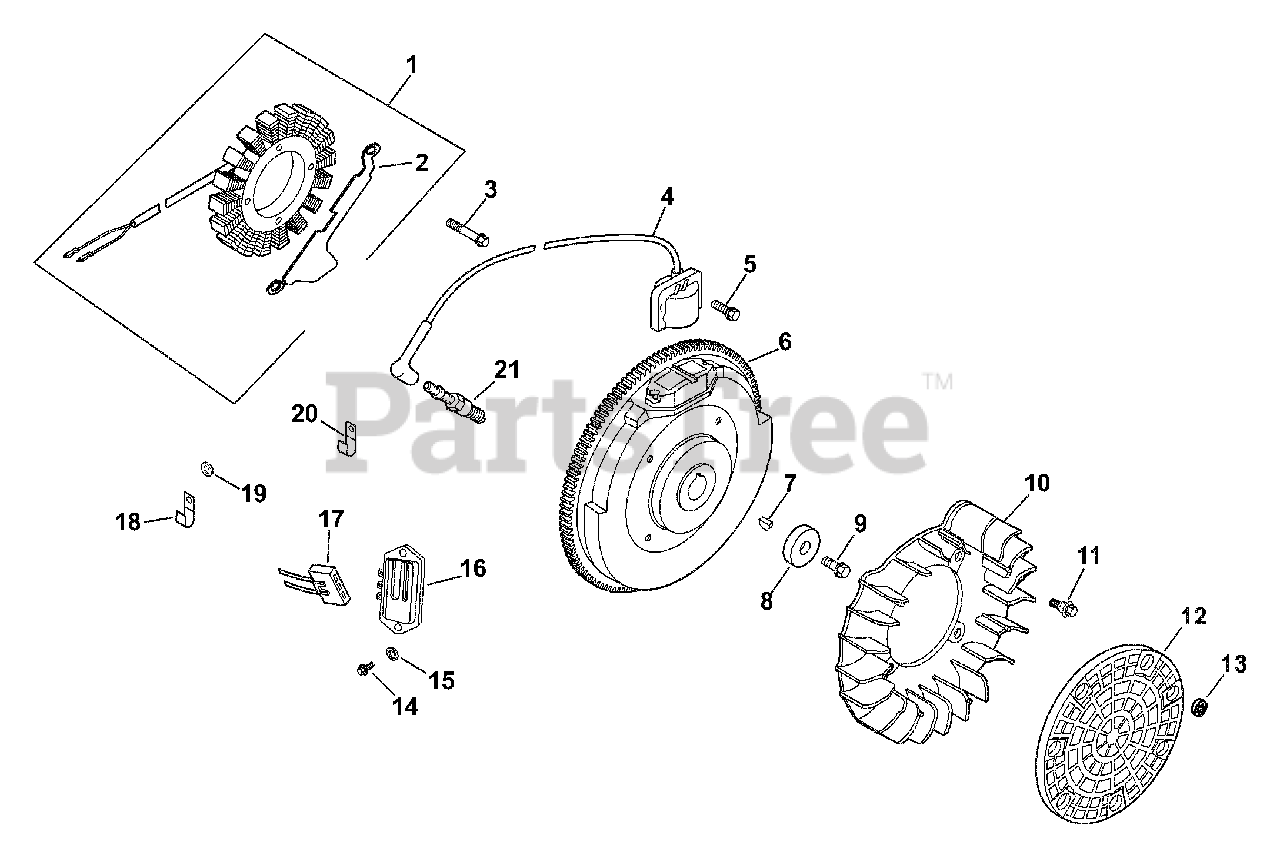

Engine - Ignition Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-09-S

Kit, 15 amp stator (Includes 2)
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-24-126-139-S

Bracket, stator wire

$15.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-548025-S

Screw, hex. cap M5x0.8x25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-01

Module, ignition
(Superseded to KH-24-584-45-S)

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, hex. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-025-04

Flywheel
(Superseded to KH-24-025-55-S)

$

$

Not available

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-12-468-03

Washer, plain 3/8"

$

$

Not available

9

Cub Cadet KH-12-086-14

Screw, hex. flange M10x1.5x46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet KH-24-157-01

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-25-086-47

Bolt, shoulder

$

$

Not available

12

Cub Cadet KH-24-162-02

Screen, grass
(Superseded to KH-24-162-36-S)

$25.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-018-03-S

Retainer, grass screen (3)

$2.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-086-18

Screw, phillips hd. 11-16x7/8"

$

$

Not available

15

Cub Cadet KH-X-25-92

Washer, plain 3/16"

$

$

Not available

16

Cub Cadet KH-41-403-09

Rectifier-regulator 15 amp
(Superseded to KH-25-403-37-S)

$

$

Not available

17

Cub Cadet KH-236602-S

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-235173

Clip, cable

$

$

Not available

19

Cub Cadet KH-X-25-63

Washer, plain 1/4"

$

$

Not available

20

Cub Cadet KH-48-154-02

Clip, cable

$

$

Not available

21

Cub Cadet KH-25-132-12-S

Spark Plug

Note: High-performance Champion Premium Gold spark plug, replaces KH-12-132-02

$20.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-91-S

Screw, tapping NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, ground strap NOT ILLUSTRATED
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-468-07-S

Washer, flat NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-08

Harness, wiring NOT ILLUSTRATED
(Superseded to KH-24-176-171-S)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-03-S

Tie, wire NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
