Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Engine - Fuel System Parts Diagram

4x2 Utility Vehicle

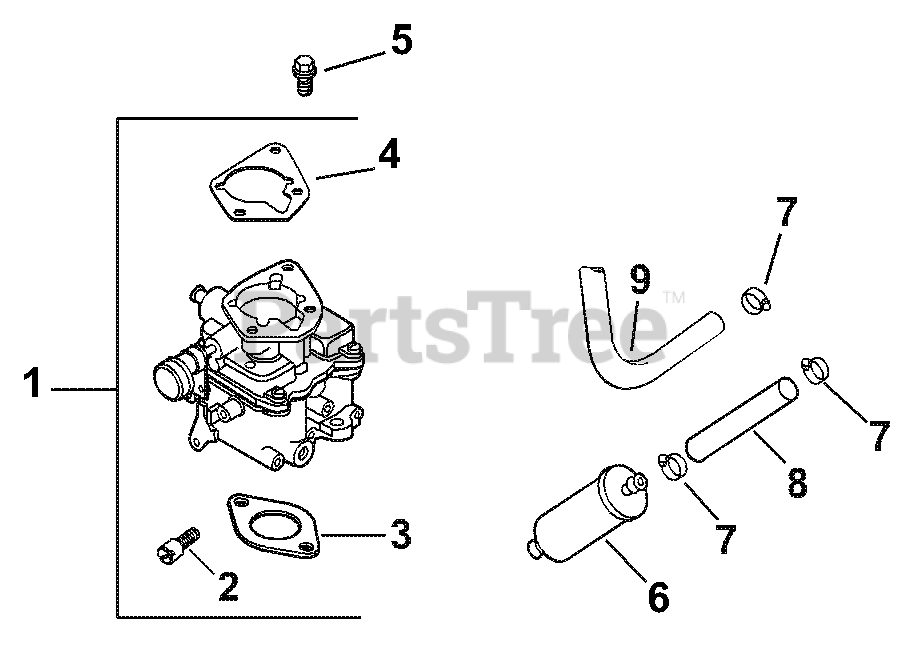

Engine - Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-43-S

Kit, carburetor w/gasket
(Superseded to KH-24-853-305-S)

Note: (Includes 2-4)

$288.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-086-05

Screw, throttle stop

$

$

Not available

3

Cub Cadet KH-24-041-06

Gasket, air cleaner base

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-041-53-S

Gasket, carburetor

$3.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-M-651025-S

Screw, hex. flange M6x1.0x25
(Superseded to KH-25-086-124-S)

$2.49

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-050-10-S

Filter, fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-353-09-S

Line, fuel 21" (carb to filter)

$

$

Not available

9

Cub Cadet KH-24-353-12

Line, fuel 11" (carb to pump)

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, ground (solenoid to carb mounting screw)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-755-125-S

Kit, high altitude

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, solenoid

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, float repair

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, carburetor repair

Note: NOT ILLUSTRATED

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, choke repair

Note: NOT ILLUSTRATED

$

$

Not available
