Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Electrical System (Part 1) SN 1A107B & after Parts Diagram

4x2 Utility Vehicle

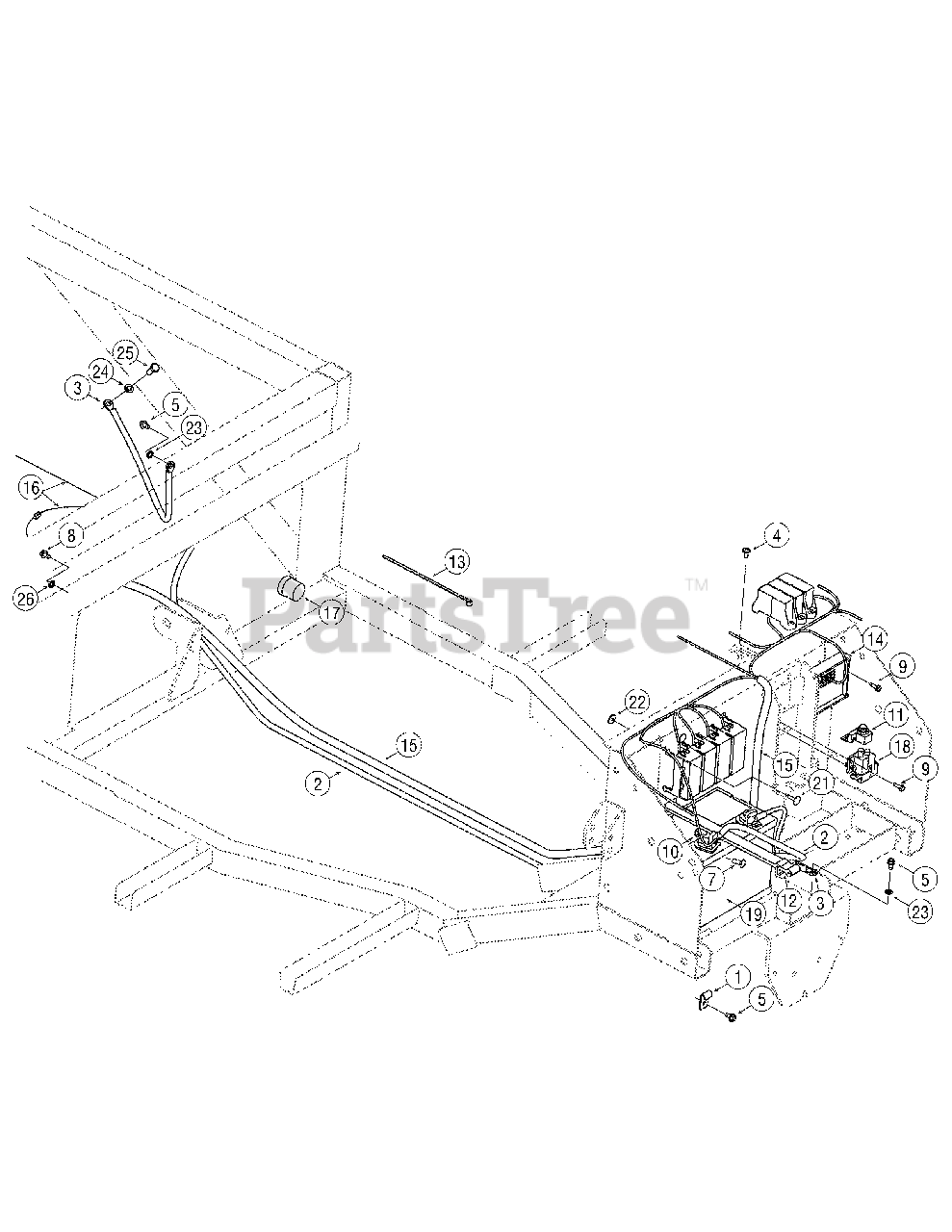

Electrical System (Part 1) SN 1A107B & after Parts Diagram

  • Title
1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 629-04054

Harness Assembly, Starter
(Superseded to 929-04054)

$

$

Not available

3

Cub Cadet 629-04060

Harness Assembly, Ground

$

$

Not available

4

Cub Cadet 710-04030

Screw, 1/4-20 x .50

$

$

Not available

5

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0607

Screw, Self-tapping, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-0703

Screw, Hex Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0788

Screw, Self-tapping, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-1237

Screw, #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

12

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-04059A

Control, Shaft

$152.99

$

In Stock, only 1 left!

0

15

Cub Cadet 725-04295

Harness, Utility Main
(Superseded to 925-04295)

$

$

Not available

16

Cub Cadet 629-04140

Harness Assembly, Motor, Kohler

$

$

Not available

17

Cub Cadet 725-04069

Control, Reverse
(Superseded to 925-04069)

$141.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-1657A

Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

19

Cub Cadet 725-1738A

Battery
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 726-0154

Cable Tie, .19 x 8.39 Tree Mount
(Superseded to 926-0154)

Note: not shown

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 728-04004

Rivet, Pop
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 11

0

23

Cub Cadet 736-0222

Washer, Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

24

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0
