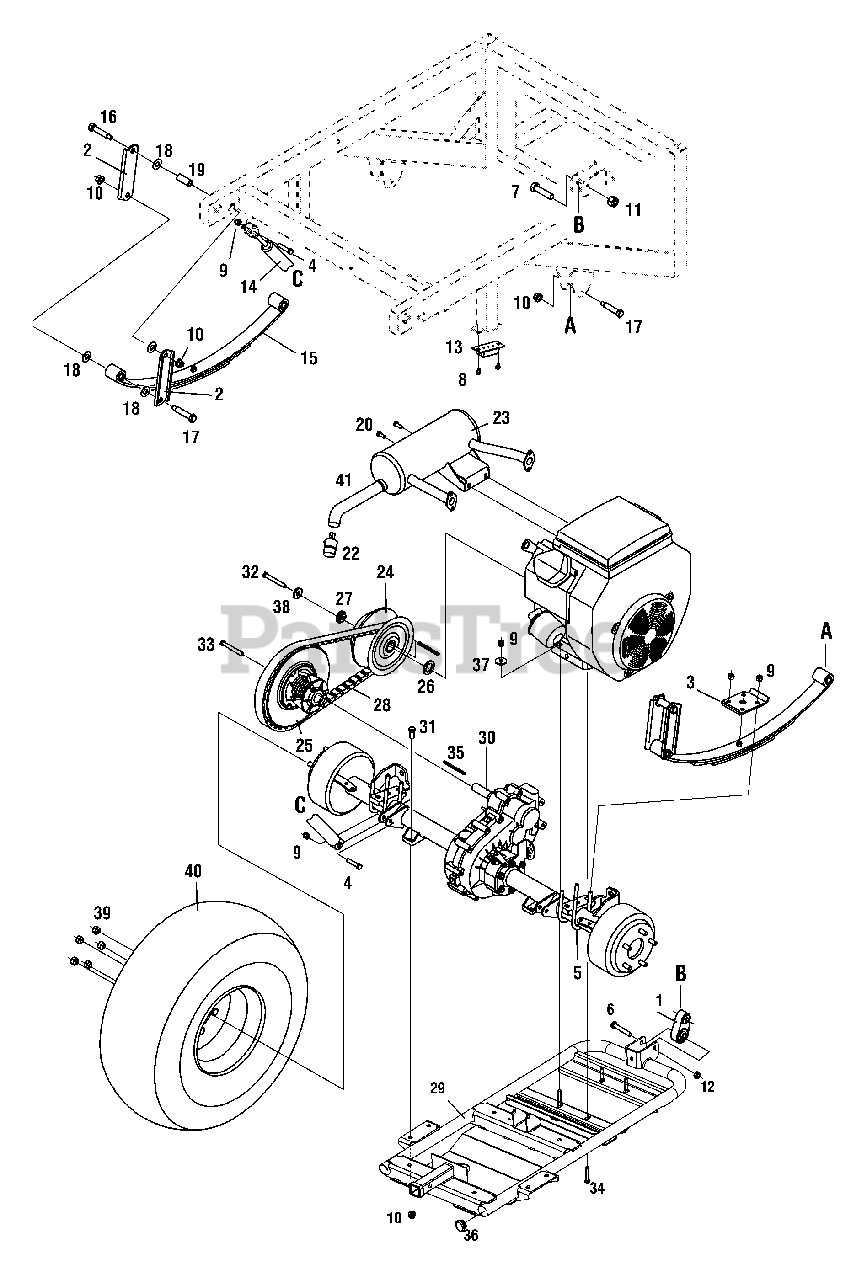

Big Country 431 Camo (37AB431D710) - Cub Cadet 4x2 Utility Vehicle Diff Lock And Rear Suspension SN 1A107B & before Parts Diagram

4x2 Utility Vehicle

Diff Lock And Rear Suspension SN 1A107B & before Parts Diagram

  • Title

1

Cub Cadet 607-04025

Link Assembly

$

$

Not available

2

Cub Cadet 707-04119

Plate, Shackle

$

$

Not available

3

Cub Cadet 707-04120A

Bracket, Spring Leaf

$

$

Not available

4

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04119

U-Bolt 3/8-16

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04128

Hex Screw, M12-1.75

$

$

Not available

7

Cub Cadet 710-04129

Hex Screw, 5/8-11 x 2.5

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

Screw, Self Tapping 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0130

Locknut, Nylon, 3/8-16

$3.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-0459

Hexlock Nut

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3016

Hexlock Nut, Flange, 5/8 -11

$6.99

$

In Stock, Qty 13

0

12

Cub Cadet 712-3103

Hexlock Nut, M12 x 1.75

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 731-04016

Bumper, Suspension

$45.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-04043

Shock Absorber, 2.50 Stroke
(Superseded to 932-04043)

$195.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-04055

Spring, Leaf 4 x 2
(Superseded to 932-04055)

$

$

Not available

16

Cub Cadet 738-04035

Shoulder Screw, .550 x 2.29
(Superseded to 938-04035)

$

$

Not available

17

Cub Cadet 738-04042

Shoulder Screw, .550 x 2.13

$

$

Not available

18

Cub Cadet 741-0405

Bearing, .56 ID x 1.25 OD x .06
(Superseded to 941-0405)

$

$

Not available

19

Cub Cadet 750-04137

Bushing, .75 OD x .562 ID x 1.75 LG

$

$

Not available

20

Cub Cadet 710-04022

Screw, M8 x 1.25:20
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 737-04013

Valve, Oil Drain

$

$

Not available

22

Cub Cadet 751-0544

Spark Arrestor
(Superseded to 951-0544)

$

$

Not available

23

Cub Cadet 751-10192

Muffler, Kohler
(Superseded to 751-10184)

$

$

Not available

24

Cub Cadet 618-04062

Clutch Assembly, Engine
(Superseded to 302647C)

$848.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 618-04063

Clutch Assembly, Transmission

$

$

Not available

26

Cub Cadet 736-04009

Washer, Flat, 1.03 x 1.625 X .12

$46.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-04002A

Spacer, .39 x 1.0

$

$

Not available

28

Cub Cadet 754-04018A

Belt, Cogged
(Superseded to 954-04018A)

$78.99

$

In Stock, only 3 left!

0

29

Cub Cadet 607-04143

Engine/Trans. Cradle

Variations

Cub Cadet 607-04143-0637

FRAME ASSY LEFT FRONT UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 918-04080A

Transmission Ass'y, Diff-Lock

$

$

Not available

30

Cub Cadet DC-4170693P

Brake Shoes (per axle)
(Superseded to DC-4171025P)

Note: Not shown

$

$

Not available

31

Cub Cadet 710-0314

Hex Screw, 7/16-20 x 1.0

$4.49

$

In Stock, Qty 13

0

32

Cub Cadet 710-04019

Hex Screw,3/8-24 x 3.00

$

$

Not available

33

Cub Cadet 710-04167

Hex Screw, 1/2-20 x 2.25

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-3144

Hex Screw,3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 714-04030

Key, Square 1875 x 3.25

$

$

Not available

36

Cub Cadet 731-04707

Plug, Tube

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0133

Washer, Flat, .510 x 1.00 x .125

$5.49

$

In Stock, Qty 7

0

38

Cub Cadet 736-04019

Washer, Flat, .531 ID x 1.25 X 1.00 1

$7.99

$

In Stock, only 1 left!

0

39

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

40

Cub Cadet 634-04071

RH Wheel Assembly, 25 x 11 x 10

$258.99

$

In Stock, only 1 left!

0

40

Cub Cadet 634-04072

LH Wheel Assembly, 25 x 11 x 10

$

$

Not available

41

Cub Cadet 751-10189

Muffler Pipe Extension

$

$

Currently unavailable

Cub Cadet 737-04040

Transmission Oil (Approx. 22 oz.)
(Superseded to 490-000-V045)

Note: Not shown, Also use 737-04158 Cub Cadet Gear Oil

$19.99

$

In Stock, only 2 left!

0
